In industries such as petroleum, natural gas, and chemical engineering, the API 6D standard is an important basis for the design, manufacturing, and testing of pipeline valves. This standard covers multiple types of valves, including TRUNNION BALL VALVES, GATE VALVES, and BUTTERFLY VALVES, etc., and is widely used in long-distance transmission pipelines, oil and gas field development, and industrial pipeline systems. This article will conduct an in-depth analysis of the design specifications for TRUNNION BALL VALVES and GATE VALVES under the API 6D standard, compare their structural characteristics, performance requirements, and application scenarios, and also explore the applicable scenarios of butterfly valves.
I. OVERVIEW OF API 6D STANDARD
The API 6D standard (Specification for Pipeline and Piping Valves) is a specification formulated for valves used in pipeline systems in the petroleum and natural gas industries. It stipulates the requirements for the design, manufacturing, testing, and inspection of valves to ensure the reliability and safety of valves under high pressure, high temperature, and harsh environments. The API 6D is applicable to multiple types of valves, including ball valves, gate valves, check valves, and plug valves, covering pressure ratings from 150LB to 2500LB.

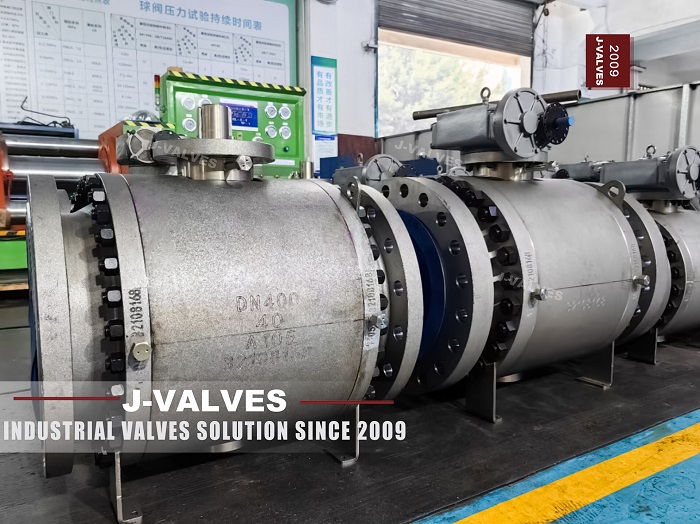

II. COMPARISON OF DESIGN SPECIFICATIONS FOR TRUNNION BALL VALVES AND GATE VALVES
(1) Structural Characteristics
Characteristics | Trunnion Ball Valves | Gate Valves |
Ball Support | The ball is supported by the support plate fixed to the valve body, and the valve seat is a piston-effect valve seat. | The gate is supported by the upper and lower guides of the valve body and is opened and closed by the up-and-down movement of the valve stem. |
Sealing Method | Sealing at the inlet end. Under the action of the medium pressure, the valve seat approaches the ball to form a seal. | Bidirectional sealing. The gate fits tightly with the valve seat, and the sealing performance is stable. |
Operating Torque | The opening torque is small, the sealing performance is stable, and it is suitable for high-pressure and large-diameter occasions. | The operating torque is relatively large, especially in high-pressure and large-diameter working conditions. |
Applicable Working Conditions | Long-distance transmission pipelines, high-pressure pipeline systems, suitable for large diameters (≥10 inches). | Main steam pipelines, boiler feedwater systems, suitable for large-flow, high-temperature and high-pressure working conditions. |
(2) Performance Requirements
Characteristics | Trunnion Ball Valves | Gate Valves |
Fire Resistance Performance | Complies with API 6FA and API 607 standards, has a fireproof sealing ring, and can maintain sealing in a fire. | Complies with API 6FA standard, has a metal sealing structure, and has excellent fire resistance performance. |
Pressure Rating | 150, 300, 400, 600, 900, 1500, 2500 pounds. | 150, 300, 600, 900, 1500, 2500 pounds. |
Temperature Range | -46 °C to 150 °C. | -29 °C to 550 °C. |
Sealing Performance | Unidirectional sealing, with a piston-effect valve seat, and the sealing performance is stable. | Bidirectional sealing, with excellent sealing performance, and suitable for high-temperature and high-pressure working conditions. |
(3) Application Scenarios
Characteristics | Trunnion Ball Valves | Gate Valves |
Main Applications | Long-distance transmission pipelines, oil and gas field development, high-pressure pipeline systems. | Main steam pipelines, boiler feedwater systems, chemical pipelines. |
Advantages | The opening torque is small, the sealing performance is stable, and it is suitable for high-pressure and large-diameter working conditions. | Full-bore design, low fluid resistance, and suitable for large-flow, high-temperature and high-pressure working conditions. |
Disadvantages | The structure is complex, and the cost is relatively high. | The operating torque is relatively large, and the maintenance cost is relatively high. |
III. APPLICABLE SCENARIOS OF BUTTERFLY VALVES
A butterfly valve is a type of valve that controls the on-off of fluid by rotating the disc. It has the characteristics of simple structure, small size, light weight, and convenient operation. The API 6D standard also covers the design and manufacturing requirements of butterfly valves.
(1) Characteristics of Butterfly Valves
• Simple Structure: The disc is opened and closed by rotating the valve stem, and the operation is simple.
• Small Size and Light Weight: It is suitable for installation in occasions where space is limited.
• Sealing Performance: Bidirectional sealing, with reliable sealing performance, and suitable for medium and low-pressure working conditions.
• Applicable Media: It is suitable for media such as water, gas, and oil.
(2) Applicable Scenarios of Butterfly Valves
• Medium and Low-pressure Pipeline Systems: Butterfly valves are suitable for pipeline systems with lower pressure ratings, such as urban gas pipelines and water supply and drainage systems.
• Space-limited Occasions: Butterfly valves are small in size and suitable for installation in pipeline systems with limited space.
• Working Conditions Requiring Quick Opening and Closing: Butterfly valves are easy to operate and have a fast opening and closing speed, and are suitable for occasions where it is necessary to quickly cut off the fluid.
• Chemical and Pharmaceutical Industries: The sealing performance and corrosion resistance of butterfly valves make them widely used in the chemical and pharmaceutical industries.
IV. SELECTION SUGGESTIONS
(1) Selecting Valve Types According to Working Conditions
• Trunnion Ball Valves: Suitable for long-distance transmission pipelines, high-pressure pipeline systems, especially for occasions that require quick opening and closing and high-pressure sealing.
• Gate Valves: Suitable for high-temperature and high-pressure working conditions such as main steam pipelines and boiler feedwater systems, especially for occasions that require large flow and bidirectional sealing.
• Butterfly Valves: Suitable for medium and low-pressure pipeline systems, especially for occasions where space is limited or quick opening and closing is required.
(2) Selecting Valves According to API 6D Standard
• Fire Resistance Performance: If there is a fire risk in the working conditions, valves that comply with API 6FA and API 607 standards should be selected.
• Pressure and Temperature Range: Select appropriate valve types and materials according to the pressure and temperature requirements of the working conditions.
• Sealing Performance: Select valves with unidirectional or bidirectional sealing according to the sealing requirements of the working conditions.
V. SUMMARY
The API 6D standard provides comprehensive specifications for the design, manufacturing, and testing of pipeline valves, ensuring the reliability and safety of valves in industries such as petroleum, natural gas, and chemical engineering. TRUNNION BALL VALVES and GATE VALVES have their own characteristics in terms of structure, performance, and application scenarios. Users should select appropriate valve types according to specific working condition requirements. BUTTERFLY VALVES, with their characteristics of simple structure, small size, and convenient operation, are widely used in medium and low-pressure pipeline systems. Through the in-depth analysis and comparison in this article, it is hoped that valuable references can be provided for users when selecting valves under the API 6D standard.
