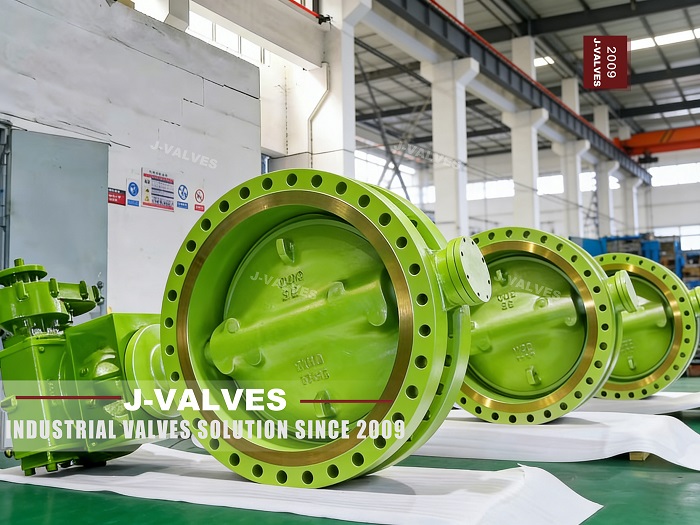

Triple Eccentric Butterfly Valve: Advanced Sealing Technology for Industrial Applications

The triple eccentric butterfly valve, as exemplified by J-VALVES, represents a significant innovation in valve technology. This high-performance valve design has been gaining popularity in various industries due to its superior sealing capabilities, reliability, and efficiency. Since its inception, J-VALVES has been at the forefront of providing industrial valve solutions, and their triple eccentric butterfly valve is an excellent testament to their engineering prowess.

What is a Triple Eccentric Butterfly Valve?

A triple eccentric butterfly valve, also known as a high-performance butterfly valve, is characterized by its unique design features that differentiate it from traditional butterfly valves. The "triple eccentric" term refers to the three key offset positions in the valve's construction:

1. Offset Disc: The disc is offset from the centerline of the valve body, which ensures that the sealing surfaces do not come into contact during operation, reducing wear and tear.

2. Seat Offset: The seat is also slightly offset, providing a more secure sealing action as the valve is operated.

3. Stem Offset: The stem is positioned in a way that minimizes friction and wear, further enhancing the valve's longevity.

This design allows the triple eccentric butterfly valve to perform well in both high-pressure and high-temperature environments, making it suitable for critical industrial applications.

Key Features and Advantages

• Leak-proof Sealing: One of the most notable advantages of the triple eccentric butterfly valve is its superior sealing capability. The triple offset design prevents the valve from leaking even under extreme pressure conditions. The valve's sealing mechanism is enhanced by a metal-to-metal contact between the seat and disc, ensuring a tight shut-off.

• High Durability: The unique design of the triple eccentric butterfly valve ensures that there is minimal friction between the moving parts. This leads to reduced wear, longer service life, and lower maintenance costs compared to other types of valves.

• Smooth Operation: The offset design eliminates the possibility of the valve seat being deformed by pressure or temperature fluctuations. As a result, the valve operates smoothly, providing precise control over the flow of fluids or gases.

• Versatility: Triple eccentric butterfly valves are versatile and can be used in a wide range of industries, including oil and gas, chemical processing, water treatment, and power generation. Their ability to withstand high temperatures, pressures, and aggressive fluids makes them ideal for demanding applications.

• Cost-Effective Solution: Despite their high-performance design, these valves are often more cost-effective than other valve types, such as ball or gate valves, in terms of installation and maintenance.

Applications of Triple Eccentric Butterfly Valves

Triple eccentric butterfly valves are widely used across various industries due to their reliability and robust performance. Some of the common applications include:

• Oil and Gas Industry: For controlling the flow of hydrocarbons in pipelines and processing plants, triple eccentric butterfly valves offer exceptional sealing and pressure control.

• Chemical Processing: In the chemical industry, these valves are used to handle aggressive fluids and gases, ensuring tight shut-off and durability.

• Water Treatment: The valve's ability to operate in high-pressure systems and its resistance to corrosion make it an ideal choice for water treatment plants.

• Power Generation: In power plants, these valves are used to manage steam and other high-pressure fluids, ensuring smooth and efficient operation.

Why Choose J-VALVES for Triple Eccentric Butterfly Valves?

J-VALVES has been a trusted name in the valve manufacturing industry since 2009. Their expertise in producing high-quality industrial valves, including the triple eccentric butterfly valve, ensures that customers receive the best possible performance and reliability.

• Advanced Manufacturing: J-VALVES employs state-of-the-art manufacturing techniques to produce valves that meet international quality standards. Their commitment to excellence ensures that each valve is built to withstand even the most demanding conditions.

• Customization Options: J-VALVES offers a range of customization options to meet specific industry requirements, including material selection, valve size, and pressure ratings.

• Global Reach: With a strong international presence, J-VALVES delivers products to a wide range of industries across the globe, ensuring customers receive the best service and support.

Conclusion

The triple eccentric butterfly valve is a crucial component in many industrial systems. Its advanced design provides unmatched sealing, durability, and operational efficiency, making it the preferred choice for industries requiring high-performance valves. J-VALVES, with its years of expertise and commitment to quality, offers reliable solutions for critical applications across various sectors. By choosing J-VALVES, industries can ensure smooth operations, reduced downtime, and enhanced system performance.
