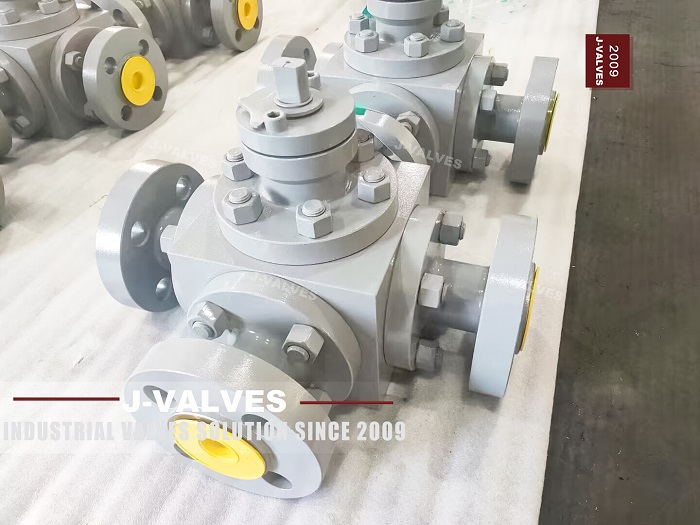

Understanding Three-Way Ball Valves
Key Features of Three-Way Ball Valves
• Versatile Flow Control: Three-way ball valves can direct fluid flow between three ports, allowing for complex flow management.
• Compact Design: These valves are designed to be compact and lightweight, making them suitable for space-constrained applications.
• Quarter-Turn Operation: Like other ball valves, three-way ball valves operate with a quarter-turn, providing quick and efficient control.
• High Durability: Made from high-quality materials such as stainless steel, brass, or alloy steel, these valves are designed for long-term reliability.
In a T-type three-way ball valve, the ball has three ports arranged in a T-shape. This configuration allows fluid to flow from one inlet to two outlets, or from two inlets to one outlet. The T-type design provides the following flow characteristics:
• Diverter Flow: Fluid can be diverted from one inlet to two separate outlets, allowing for distribution of flow.
• Mixer Flow: Fluids from two inlets can be mixed and directed to a single outlet, facilitating blending or combining of fluids.
• Chemical Processing: Ideal for applications where different chemicals need to be mixed or diverted.
• Pharmaceuticals: Used in processes where precise control over fluid mixing is required.
• Food and Beverage Industry: Suitable for applications involving the blending of ingredients.
In an L-type three-way ball valve, the ball has three ports arranged in an L-shape. This configuration allows fluid to flow from one inlet to one outlet, with the third port being blocked. The L-type design provides the following flow characteristics:
• Directional Flow: Fluid can be directed from one inlet to one outlet, with the ability to change direction.
• Isolation: One port can be isolated while fluid flows between the other two ports, providing flexibility in flow management.
• Oil and Gas Industry: Used in applications where fluid needs to be directed or isolated.
• Water Treatment: Suitable for systems where water flow needs to be controlled or diverted.
• HVAC Systems: Used in heating, ventilation, and air conditioning systems for precise control of fluid flow.
Comparative Analysis: T-Type vs. L-Type Three-Way Ball Valves
| Feature | T-Type Configuration | L-Type Configuration |
| Flow Path | Three ports in a T-shape | Three ports in an L-shape |
| Diverter Flow | Yes | No |
| Mixer Flow | Yes | No |
| Directional Flow | Yes | Yes |
| Isolation | No | Yes |
| Feature | T-Type Configuration | L-Type Configuration |
| Chemical Processing | Ideal for mixing and diverting fluids | Suitable for directional flow and isolation |
| Pharmaceuticals | Used for blending and distribution | Used for precise flow control and isolation |
| Food and Beverage Industry | Suitable for ingredient blending | Suitable for flow direction and isolation |
| Oil and Gas Industry | Less common due to lack of isolation | Common for directional flow and isolation |
| Water Treatment | Less common due to lack of isolation | Common for flow control and isolation |
| HVAC Systems | Less common due to lack of isolation | Common for precise flow control |
