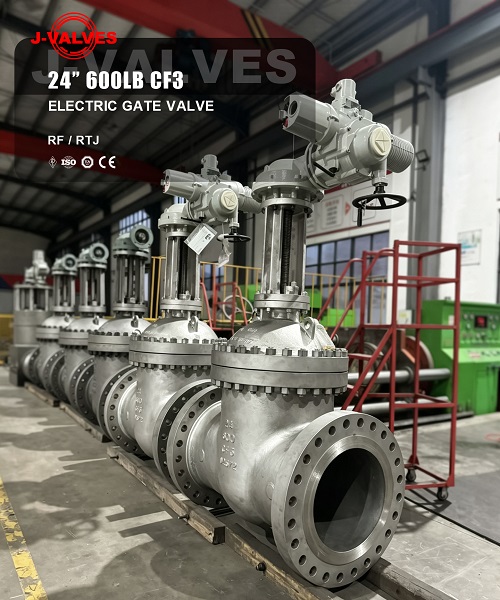

In high-pressure piping systems, a valve is expected to do much more than simply open and close. It must operate reliably, maintain sealing performance, and support long-term system stability. The 24" 600LB CF3 electric gate valve is commonly selected for industrial applications where large flow capacity, pressure resistance, and automated control are all required.
This type of valve is often used in chemical plants, energy facilities, petrochemical systems, and industrial utility networks. For operators who want better process control and lower manual labor demand, it offers a practical and efficient solution.
The specification itself tells you a lot. A 24-inch valve is designed for large-diameter pipelines and high flow demand. The 600LB pressure class indicates strong pressure-handling capability. CF3 is a low-carbon cast stainless steel grade commonly used in environments where corrosion resistance and weldability matter.
When these three elements come together, the result is a valve suited for demanding service conditions. It is not just a basic shutoff component. It becomes part of a system designed for stability, automation, and operational efficiency.
CF3 is valued for its balance of corrosion resistance, fabrication performance, and service reliability. In many industrial systems, especially those involving water, steam, or moderately corrosive media, CF3 can deliver dependable performance.
Its low-carbon nature also supports better weldability and helps reduce certain corrosion-related risks after fabrication. Still, material selection should never be based on grade alone. The final decision should always consider the medium, operating temperature, pressure, sealing requirements, and valve structure.
One of the biggest benefits of an electric gate valve is automation. Compared with manual operation, an electric actuator improves control accuracy and reduces labor intensity. This is especially important for large-diameter valves, where manual operation is often difficult, time-consuming, and less consistent.
Electric actuation also makes remote control possible. The valve can be integrated into DCS, PLC, or other centralized control systems. For modern plants, this means better monitoring, easier coordination, and improved process safety.
The 24" 600LB CF3 electric gate valve is commonly used in:
High-pressure transmission lines
Chemical process systems
Power generation facilities
Industrial utility pipelines
Remote operation valve stations
Systems requiring reliable shutoff performance
If a project combines large diameter, high pressure, and automation requirements, this valve type often becomes a preferred option.
When choosing a 24" 600LB CF3 electric gate valve, it is important to look beyond size and pressure rating.
First, check the medium characteristics. Corrosive properties, solids content, temperature, and pressure all affect service life.
Second, define the sealing requirement. Is the valve used for isolation only, or is tighter leakage control needed?
Third, confirm actuator torque. Large valves need a properly matched actuator and gear mechanism.
Fourth, verify installation space. Electric actuators require adequate room for mounting and maintenance.
Fifth, determine the control mode. Local operation, remote control, and signal feedback may all be required depending on the project.
A valve is only truly suitable when all these factors align with the application.
For projects focused on long-term reliability, the valve is not just a spare part. It is an important part of the system’s safety and performance. The 24" 600LB CF3 electric gate valve helps stabilize operations in high-pressure and large-flow conditions while supporting automation and reducing manual intervention.
From a procurement perspective, it also fits users who value total lifecycle cost. Even if the initial investment is higher than that of a standard valve, the savings in maintenance, downtime, and labor can make it a stronger long-term choice.
It is used in high-pressure, large-diameter industrial pipelines where automated shutoff and reliable sealing are required.
CF3 offers good corrosion resistance for many applications, but final suitability depends on the actual medium, temperature, and pressure conditions.
Electric operation supports remote control, centralized management, and more consistent valve movement, especially for large valves.
Size, pressure class, medium properties, sealing needs, actuator torque, and control mode are all critical factors.
The 24" 600LB CF3 electric gate valve is more than a standard industrial valve. It is a practical solution for high-pressure, large-diameter systems that require dependable shutoff performance and automated control. For companies seeking better operational stability, lower manual workload, and improved lifecycle efficiency, this valve specification offers clear value.
