Purchase Guide: Design Comparison (API/ISO) of J-VALVES High Platform Flanged Ball Valves And Advantages of The Bending Structure of Bracket Steel Plates

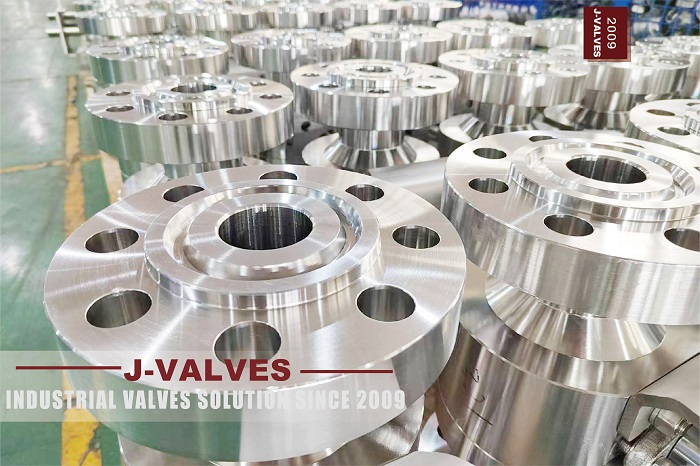

I. Overview of J-VALVES High Platform Flanged Ball Valves

The J-VALVES high platform flanged ball valve is a HIGH-PERFORMANCE BALL VALVE with a high platform design, which is widely used in industries such as petroleum, chemical engineering, natural gas, and electric power. Its core feature is the integrated design of the actuator mounting platform and the valve body, which complies with international standards (such as ISO 5211). It can directly install pneumatic or electric actuators without the need for additional brackets, greatly simplifying the installation process and improving the stability and reliability of the system.

II. Comparison of API and ISO Design Standards

(1) API Standard

The API (American Petroleum Institute) standard is a widely adopted design and manufacturing specification in the petroleum and natural gas industries. When the J-VALVES HIGH PLATFORM FLANGED BALL VALVE follows the API standard, it usually adopts standards such as API 608 or API 6D. These standards impose strict requirements on the materials, pressure ratings, dimensions, corrosion resistance, and fireproof performance of the ball valve. For example, API 607 specifies the fireproof performance and test methods of the ball valve to ensure that the valve can still maintain its seal in the event of a fire.

• Advantages:

• High strength and corrosion resistance, suitable for harsh working conditions such as in the petroleum and natural gas industries.

• Excellent fireproof performance, compliant with API 607 standard, ensuring system safety.

• High pressure rating, capable of withstanding high-pressure environments.

• Applicable Scenarios:

• Petroleum and natural gas transmission pipelines.

• High-pressure and high-temperature chemical environments.

(2) ISO Standard

The ISO (International Organization for Standardization) standard focuses more on the universality and interchangeability of products. When the J-VALVES HIGH PLATFORM FLANGED BALL VALVE is designed in accordance with the ISO 5211 standard, its actuator mounting platform is in line with international general standards, facilitating seamless connection with other equipment and control systems. In addition, the ISO standard also provides detailed regulations on the dimensions, tolerances, and material selection of the ball valve to ensure the quality and consistency of the product.

• Advantages:

• Strong universality, facilitating interchangeability with other equipment.

• High dimensional accuracy, convenient for installation and maintenance.

• Applicable to multiple industrial fields with strong compatibility.

• Applicable Scenarios:

• Chemical, pharmaceutical, water treatment and other industries.

• Automated control systems that need to be integrated with other equipment.

(3) Comparison Table of API and ISO Standards

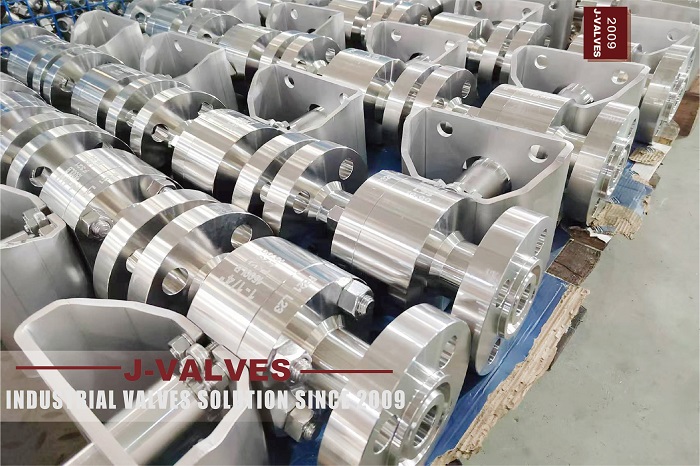

III. Advantages of the Bending Structure of Bracket Steel Plates

The bending structure of the bracket steel plates of the J-VALVES HIGH PLATFORM FLANGED BALL VALVE is another highlight. Compared with traditional brackets, this structure has the following significant advantages:

(1) Structural Stability

The bending structure of the bracket steel plates enhances the overall stability of the valve through optimized design. Under working conditions of high pressure and frequent operation, this structure can effectively reduce vibration and loosening, ensure a tight connection between the valve and the actuator, and extend the service life.

(2) Convenience for Installation and Maintenance

This structural design makes the installation and maintenance processes simpler. Users do not need to install additional brackets and can directly install the actuator on the high platform. Meanwhile, it is also more convenient to disassemble and replace the actuator, reducing downtime and maintenance costs.

(3) Appearance and Space Optimization

The bending structure of the bracket steel plates not only optimizes the internal structure but also improves the aesthetic appearance of the valve. Its compact design makes the valve smaller in size and lighter in weight, which is especially suitable for installation environments with limited space.

IV. Summary and Purchase Recommendations

The J-VALVES HIGH PLATFORM FLANGED BALL VALVE, with its design compliant with API and ISO standards and the advantages of the bending structure of the bracket steel plates, has become an ideal choice in industrial fluid control systems. When making a purchase, users should comprehensively consider the following factors according to their own working condition requirements and budgets:

• Working Condition Requirements: If the application scenario involves high-pressure and high-temperature environments such as in petroleum and natural gas, it is recommended to give priority to ball valves that comply with the API standard; if it is necessary to integrate with other equipment or pursue universality, ball valves that comply with the ISO standard are more suitable.

• Convenience for Installation and Maintenance: The high platform design and the bending structure of the bracket steel plates significantly simplify the installation and maintenance processes and reduce costs, which are suitable for scenarios that require frequent operation and maintenance.

• Budget and Cost-effectiveness: On the premise of meeting the working condition requirements, users can choose products with high cost-effectiveness according to their own budgets. The J-VALVES high platform flanged ball valve has achieved a good balance between performance and price and is a recommended choice.

Through the detailed comparison and analysis in this article, it is believed that users can better understand the design features and advantages of the J-VALVES HIGH PLATFORM FLANGED BALL VALVE and thus make a wise purchase decision.
