Valve Selection for Power Plant Steam Systems: High Temperature Resistance Characteristics of Gate Valves And Quick Shut-off Capability of Ball Valves

In the power industry, especially in the steam systems of thermal power plants, the selection of valves is of crucial importance. Valves not only need to withstand the high-temperature and high-pressure steam environment but also ensure the safe and stable operation of the systems. GATE VALVES and BALL VALVES are two types of valves widely used in power plant steam systems, and each of them has unique performance characteristics. This article will explore the high temperature resistance characteristics of gate valves and the quick shut-off capability of ball valves through comparative analysis, helping you make more appropriate choices in practical applications.


I. BASIC CHARACTERISTICS OF GATE VALVES AND BALL VALVES

(1) Gate Valves
A gate valve is a type of valve that controls the on-off of fluid by the up-and-down movement of the gate. Its main features include:

• Full-bore design: With low resistance when fluid passes through, it is suitable for working conditions with large flow rates.
• High temperature resistance: It can withstand relatively high temperatures and is suitable for high-temperature steam systems.
• Good sealing performance: The double-gate design can provide reliable bidirectional sealing.


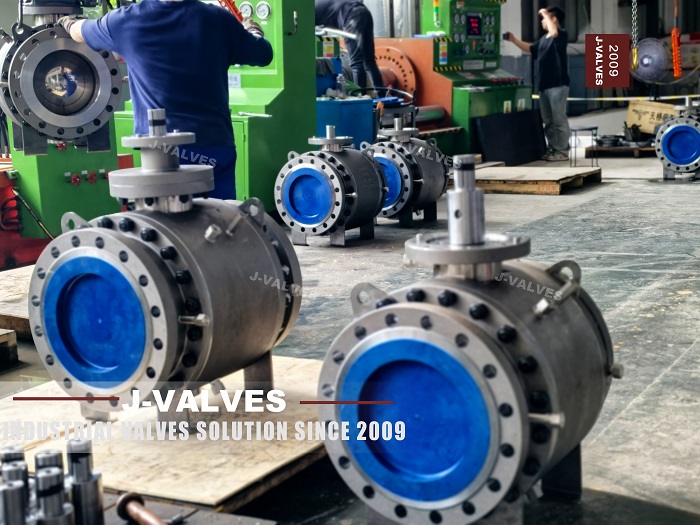

(2) Ball Valves
A ball valve is a type of valve that controls the on-off of fluid by rotating the ball. Its main features include:

• Quick opening and closing: It is easy to operate and can complete the opening or closing within a short time.
• High sealing performance: The ball fits tightly with the valve seat, providing excellent sealing performance.
• Wide application range: It can be used for various media, including steam, water, oil, etc.


II. COMPARISON OF CHARACTERISTICS BETWEEN GATE VALVES AND BALL VALVES
The following is a specific comparison between gate valves and ball valves in terms of high temperature resistance characteristics, quick shut-off capability, applicable working conditions, etc.:


Characteristics

gate valves

Ball Valves

High temperature resistance

Applicable to high-temperature steam systems, with a working temperature that can reach 550 °C.
Materials are usually carbon steel, alloy steel or stainless steel, with strong high temperature resistance.

Generally, the working temperature range is from -30 °C to 200 °C, and some high-temperature ball valves can reach 350 °C.
High-temperature ball valves need to adopt special materials (such as high-temperature alloy steel) and sealing materials.

Quick shut-off capability

The opening and closing speed is relatively slow, requiring multiple rotations of the handwheel or electric actuator.

The opening and closing speed is fast, and only a 90° rotation is needed to complete the on-off operation.

Sealing performance

With a double-gate design, the sealing performance is reliable and suitable for bidirectional sealing.

The ball fits tightly with the valve seat, providing excellent sealing performance and is suitable for unidirectional sealing.

Applicable working conditions

Applicable to steam systems with large flow rates, high temperature and high pressure.

Applicable to working conditions that require quick opening and closing, such as emergency shut-off or frequent operations.

Maintenance requirements

It is necessary to regularly check the wear of the gate and valve seat, and the maintenance cost is relatively high.

It has a simple structure, is convenient for maintenance, and the maintenance cost is relatively low.


III. APPLICATION ANALYSIS IN POWER PLANT STEAM SYSTEMS

(1) Application Scenarios of Gate Valves

• High-temperature and high-pressure steam pipelines: The high temperature resistance and good sealing performance of gate valves make them an ideal choice for high-temperature and high-pressure steam pipelines. For example, in main steam pipelines, reheat steam pipelines and other parts, gate valves can ensure the stable operation of the system under high temperature and high pressure.
• Boiler feedwater systems: The full-bore design of gate valves reduces fluid resistance and is suitable for boiler feedwater systems with large flow rates. Its reliable sealing performance can also effectively prevent water leakage.
• Bypass systems: In bypass systems that require long-term stable operation and have high requirements for sealing performance, gate valves are the first choice.


(2) Application Scenarios of Ball Valves

• Emergency shut-off: The quick shut-off capability of ball valves enables them to quickly cut off the fluid in emergency situations and prevent the expansion of accidents. For example, installing ball valves on the steam inlet pipelines of steam turbines can quickly cut off the steam supply during emergency shutdown.
• Frequent operation working conditions: Ball valves are easy to operate and have a fast opening and closing speed, so they are suitable for working conditions that require frequent operations. For example, in drainage systems, bypass systems and other parts that need to quickly adjust the flow rate, ball valves can effectively improve the operation efficiency.
• Auxiliary systems: In some auxiliary systems, such as lubricating oil systems, cooling water systems, etc., the sealing performance and reliability of ball valves can ensure the normal operation of the systems.


IV. SELECTION SUGGESTIONS

(1) Selection Based on Working Temperature

• High-temperature working conditions: If the working temperature of the system exceeds 300 °C, it is recommended to give priority to gate valves. Gate valves have stronger high temperature resistance and can meet the requirements of high-temperature steam systems.
• Medium and low-temperature working conditions: For working conditions with a working temperature between -30 °C and 200 °C, ball valves are a good choice. Especially in occasions that require quick shut-off or frequent operations, the advantages of ball valves are more obvious.


(2) Selection Based on Operation Requirements

• Large flow rate and low resistance working conditions: The full-bore design of gate valves makes them perform excellently in working conditions with large flow rates and low resistance. For example, in main steam pipelines and boiler feedwater systems, gate valves can ensure the smooth flow of fluid.
• Quick shut-off requirement: If the system needs to quickly cut off the fluid to prevent the expansion of accidents or for emergency operations, ball valves are a better choice. For example, in the steam inlet pipelines of steam turbines and drainage systems, the quick shut-off capability of ball valves can effectively ensure the safe operation of the system.


(3) Selection Based on Maintenance Cost

• High sensitivity to maintenance cost: If the system is relatively sensitive to maintenance cost, it is recommended to choose ball valves. Ball valves have a simple structure, are convenient for maintenance, and the maintenance cost is relatively low.
• Low sensitivity to maintenance cost: If the system is less sensitive to maintenance cost and pays more attention to the high temperature resistance and sealing performance of valves, gate valves are a reliable choice.


V. SUMMARY
In power plant steam systems, GATE VALVES and BALL VALVES each have their unique advantages. Gate valves, with their high temperature resistance and good sealing performance, are suitable for high-temperature and high-pressure steam pipelines and boiler feedwater systems; while ball valves, relying on their quick shut-off capability and simple operation, are suitable for working conditions of emergency shut-off and frequent operations. In the actual selection process, appropriate valve types should be selected by comprehensively considering factors such as the specific working conditions of the system (such as temperature, pressure, flow rate, operation frequency, etc.) and maintenance costs.
