Views: 0 Author: J-VALVES Publish Time: 2025-05-12 Origin: Site
INTRODUCTION
As an important device for industrial fluid control, the operation mode of GATE VALVES directly affects the operating efficiency and safety of the system. Common operation modes include manual, electric, and pneumatic ones. Each mode has its own unique advantages and limitations and is suitable for different working condition environments. This article will help users choose the most suitable gate valve operation mode through comparative analysis.

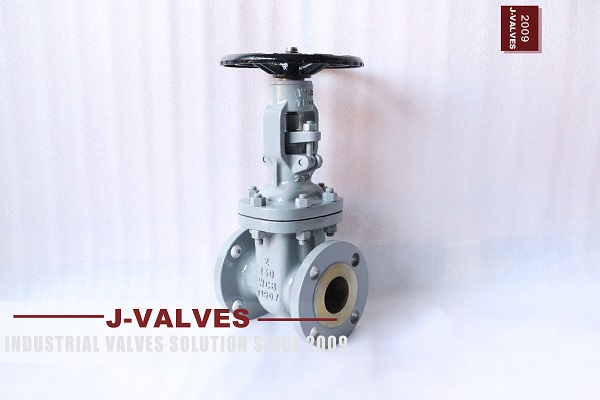

Manual GATE VALVES are the most traditional operation mode, relying on human power to control the opening and closing of the valve through a handwheel or handle.
ADVANTAGES:
1. Low cost: Manual gate valves do not require an additional power source, and the initial purchase cost is relatively low.
2. Simple structure: They are convenient for maintenance. It is only necessary to regularly check the seals and lubricated parts.
3. Wide application range: They are suitable for fluid control in small-diameter, low-pressure, and low-flow situations.
DISADVANTAGES:
1. Labor-intensive operation: Relatively large human effort is required to complete the opening and closing actions, especially in the case of large-diameter or high-pressure situations.
2. Slow response speed: The operation speed is relatively slow, and it is not suitable for occasions that require rapid flow regulation.
3. Low safety: There are certain safety risks in high-temperature, high-pressure, or toxic environments.

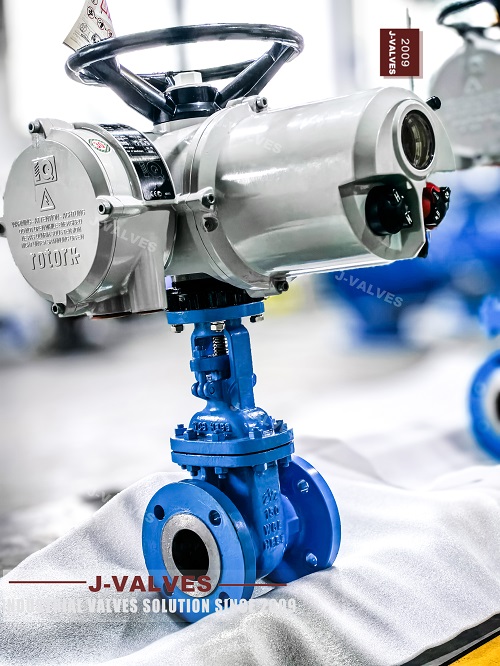

ADVANTAGES:
1. High degree of automation: Remote control and automated operation can be achieved, which is suitable for complex working conditions.
2. Fast response speed: They can act quickly and precisely control the opening degree and position of the valve.
3. Wide application range: They are suitable for complex environments such as large-diameter, high-pressure, and high-temperature ones, and are not affected by the climate.
DISADVANTAGES:
1. High initial investment: The purchase cost is relatively high, including the motor and control system.
2. Complex maintenance: Regular inspection of the motor and control system is required, and the maintenance cost is relatively high.
3. Dependence on power supply: They rely on a stable power supply and are not suitable for environments without electricity or with unstable power.

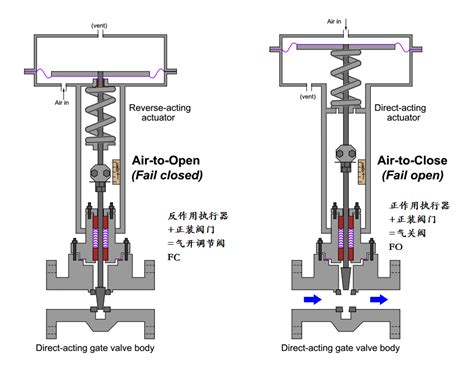

ADVANTAGES:
1. Fast response speed: Pneumatic valves can act quickly and are suitable for occasions that require rapid switching.
2. Simple structure: They are convenient for maintenance and have a relatively low cost.
3. Strong adaptability: They are suitable for various media such as gas, steam, and water.
DISADVANTAGES:
1. Susceptible to environmental influence: They are easily affected by fluctuations in compressed air pressure, and especially in winter in northern regions, they are prone to icing due to water content.
2. Complex control system: External air sources and control systems are required for support.
3. Relatively noisy: They may generate noise and vibration during operation.
Operation Mode | Cost | Operation Convenience | Response Speed | Maintenance Difficulty | Application Range | Safety |
Manual | Low | Medium | Slow | Low | Small-diameter, low-pressure, low-flow | Low |
Electric | High | High | Fast | High | Large-diameter, high-pressure, high-temperature | High |
Pneumatic | Medium | Medium | Fast | Medium | Multiple media (gas, steam, water) | Low |
CONCLUSION
The choice of the GATE VALVE operation mode needs to be comprehensively considered according to the specific application scenarios. Manual GATE VALVES are suitable for small systems or simple environments; electric gate valves are suitable for complex working conditions with a high degree of automation and requirements for fast response; pneumatic gate valves are suitable for occasions that require rapid switching and have relatively low environmental requirements. Users should weigh the cost, efficiency, and safety according to actual needs and choose the most suitable gate valve operation mode.
