In industrial piping systems, the 150LB Stainless Steel CF8/CF8m Flanged Gate Valvestands out as a critical component for on-off flow control, valued for its corrosion resistance, structural integrity, and compatibility with diverse harsh environments. Designed to meet international standards such as API 600, ASME B16.34, and ASME B16.5, this valve is widely adopted in oil and gas, chemical processing, water treatment, and food and beverage industries. This technical article delves into its core features, material differences between CF8 and CF8m, technical parameters, structural advantages, installation tips, and selection criteria—providing comprehensive insights for engineers, procurement professionals, and industry stakeholders.

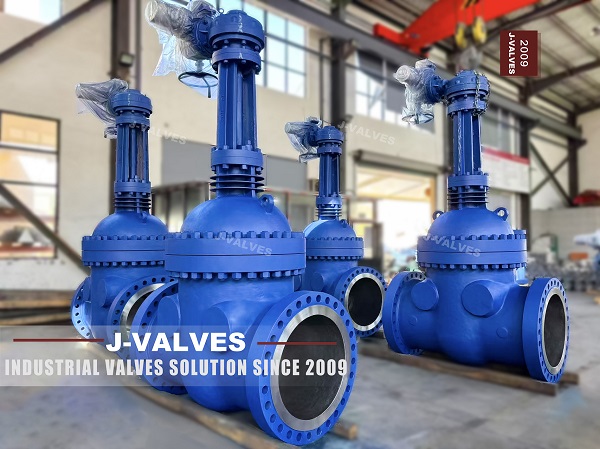

A 150LB Stainless Steel CF8/CF8m Flanged Gate Valve is a quarter-turn (or linear-motion) on-off valve designed to control the flow of liquids, gases, and slurries in industrial pipelines. The “150LB” refers to its pressure class, equivalent to ANSI Class 150 (PN 20), indicating it can withstand a maximum working pressure of 20 bar (290 psi) at ambient temperature. The “flanged” connection allows for easy installation and maintenance, ensuring a secure seal with standard pipeline flanges compliant with ASME B16.5.
The valve’s core material—either CF8 or CF8m stainless steel—defines its corrosion resistance and operational suitability for specific media. Both are austenitic cast stainless steels compliant with ASTM A351, a critical standard for corrosion-resistant castings in pressure-containing applications. Unlike forged stainless steels (e.g., 304 or 316), CF8 and CF8m are optimized for casting processes, making them ideal for complex valve body geometries while maintaining consistent mechanical properties.
CF8 and CF8m are the two most common stainless steel grades for 150LB flanged gate valves, with subtle but critical differences in chemical composition that impact their corrosion resistance and application scope. Below is a detailed comparison based on ASTM A351 standards:
CF8 stainless steel is the cast equivalent of 304 stainless steel, featuring a chemical composition of 18.0-21.0% chromium (Cr), 8.0-11.0% nickel (Ni), and a maximum carbon content of 0.08%—no molybdenum (Mo) is added. This composition forms a dense chromium oxide film on the surface, providing excellent resistance to general corrosion, freshwater, weak acids, and atmospheric exposure.
CF8m stainless steel, by contrast, is the cast equivalent of 316 stainless steel, with the same Cr and Ni ranges as CF8 but with the addition of 2.0-3.0% molybdenum. The “M” in CF8m denotes molybdenum, which significantly enhances resistance to pitting, crevice corrosion, and chloride-induced stress corrosion cracking (SCC)—a critical advantage in harsh environments containing saltwater, brine, or acidic media.
Both CF8 and CF8m meet the same minimum mechanical requirements per ASTM A351: tensile strength ≥ 485 MPa, yield strength ≥ 205 MPa, and elongation ≥ 35% (CF8) or ≥ 30% (CF8m). In practical applications, CF8 typically exhibits slightly higher ductility, while CF8m offers marginally better tensile strength due to the presence of molybdenum. Both grades maintain excellent toughness even at low temperatures (down to -29°C), making them suitable for cryogenic applications in some cases.
CF8 is ideal for non-chloride environments, such as freshwater treatment, food processing (where media is non-corrosive), and general industrial applications with weak alkaline or organic media. It performs well in temperatures up to 450°C but is susceptible to pitting and SCC in high-chloride environments (e.g., seawater, chemical processing with salt solutions).
CF8m, with its molybdenum content, has a significantly higher pitting resistance equivalent number (PREN ≈ 24.5, compared to CF8’s PREN ≈ 18.5), making it the preferred choice for marine applications, chemical plants handling acidic or chloride-rich media, and offshore oil and gas pipelines. It also resists corrosion from dilute sulfuric acid, phosphoric acid, and other aggressive chemicals that would degrade CF8.
To ensure compatibility with global industrial standards and reliable performance, 150LB CF8/CF8m Flanged Gate Valvesadhere to strict technical specifications. Below are the key parameters:
Pressure Class: ANSI 150 (PN 20)
Maximum Working Pressure (MWP): 20 bar (290 psi) at 20°C
Temperature Range: -29°C to 450°C (CF8); -29°C to 400°C (CF8m)
Test Pressure: Hydrostatic test (shell): 30 bar; Hydrostatic test (seat): 22 bar; Air test: 0.6 bar (per API 598)
Nominal Diameter (DN): DN 15 (1/2”) to DN 1200 (48”)
Flange Standard: ASME B16.5 (NPS ≤ 24”); ASME B16.47 Series A/B (NPS > 24”)
Face-to-Face Dimension: ASME B16.10
Flange Face Type: RF (Raised Face) as standard; RTJ (Ring Type Joint) optional for high-pressure applications
Valve Type: Gate Valve (rising stem, OS&Y – Outside Screw and Yoke)
Bonnet Design: Bolted bonnet (standard); Pressure-sealed bonnet (optional for high-temperature applications)
Gate Design: Solid wedge (standard); Flexible wedge (optional for thermal expansion compensation)
Seat Material: Stellite-coated (optional) for enhanced wear and corrosion resistance; PTFE or graphite for low-temperature applications
Stem Material: 316 stainless steel (CF8 valve); 316L stainless steel (CF8m valve) for corrosion resistance
Design Standard: API 600, ASME B16.34
Testing Standard: API 598 (Valve Inspection and Testing)
Material Standard: ASTM A351 (CF8/CF8m stainless steel)
The 150LB CF8/CF8m Flanged Gate Valve is engineered for durability, ease of operation, and long service life, with several key structural advantages:
The outside screw and yoke (OS&Y) design separates the stem from the media, preventing corrosion and wear of the stem threads. The rising stem provides a clear visual indication of the valve’s position (open/closed), which is critical for safety in industrial operations. This design also ensures smooth operation, with minimal torque required to open or close the valve.
Flanged connections allow for quick installation and removal, eliminating the need for welding and reducing downtime during maintenance. The ASME B16.5-compliant flanges ensure compatibility with standard pipelines, making the valve suitable for retrofits and new installations alike.
The CF8/CF8m stainless steel body and trim resist corrosion from a wide range of media, reducing maintenance costs and extending the valve’s service life. For aggressive applications, Stellite-coated seats and stems provide additional protection against abrasion and chemical attack.
The solid wedge gate is ideal for most general applications, providing a tight seal and excellent structural strength. The flexible wedge option accommodates thermal expansion and contraction, preventing binding and ensuring a reliable seal even in fluctuating temperature environments.
The versatility of CF8 and CF8m materials makes the 150LB flanged gate valve suitable for a wide range of industrial applications. Below are the key industries and use cases:
CF8m valves are widely used in offshore and onshore oil and gas pipelines, refineries, and petrochemical plants, where they control the flow of crude oil, natural gas, and refined products. Their resistance to chloride corrosion makes them ideal for seawater cooling systems and offshore platforms.
CF8 valves are used for non-chloride media such as weak acids, alkalis, and organic solvents. CF8m valves are preferred for handling aggressive chemicals, including sulfuric acid, phosphoric acid, and chloride-rich solutions, in chemical reactors, storage tanks, and transfer lines.
CF8 valves are suitable for freshwater treatment plants, while CF8m valves are used in seawater desalination systems, marine ballast tanks, and coastal wastewater treatment facilities—thanks to their resistance to saltwater corrosion.
CF8 stainless steel is non-toxic and easy to clean, making it ideal for food and beverage processing plants, where it controls the flow of water, juices, and other food-grade media. The smooth internal surface of the valve prevents bacterial growth, ensuring compliance with food safety standards.
Both CF8 and CF8m valves are used in power plants (thermal, nuclear, and renewable) to control the flow of cooling water, steam, and condensate. Their high-temperature resistance makes them suitable for boiler feedwater systems and steam pipelines.
Choosing between CF8 and CF8m depends on the application’s media, temperature, and corrosion conditions. Below is a step-by-step selection guide:
Choose CF8 if the media is freshwater, weak acids, alkalis, or organic solvents (no chloride content).
Choose CF8m if the media contains chlorides (seawater, brine), strong acids, or sulfur-containing compounds (e.g., oil and gas with H2S).
CF8 is suitable for temperatures up to 450°C, making it ideal for high-temperature applications such as steam pipelines.
CF8m is recommended for temperatures up to 400°C, with better corrosion resistance in high-temperature, high-chloride environments.
If the valve requires welding (e.g., for custom installations), both CF8 and CF8m offer good weldability. However, CF8m may require post-weld heat treatment to maintain corrosion resistance in harsh environments.
CF8 is more cost-effective than CF8m (typically 20-30% lower cost). If the application does not require molybdenum’s corrosion resistance, CF8 is the optimal choice. For harsh environments, the higher cost of CF8m is justified by its longer service life and reduced maintenance.
Proper installation and maintenance are critical to ensuring the 150LB CF8/CF8m Flanged Gate Valve’s performance and longevity. Follow these guidelines:
Inspect the valve before installation: Check for casting defects, damage to the flange face or seat, and ensure the stem moves freely.
Clean the pipeline: Remove weld slag, rust, and debris to prevent damage to the valve seat and gate.
Align the valve: Ensure the valve is properly aligned with the pipeline to avoid stress on the flange connections.
Tighten flange bolts: Use a torque wrench to tighten bolts in a diagonal pattern, ensuring uniform pressure and a secure seal.
Verify the valve position: Ensure the OS&Y stem moves smoothly and indicates the correct open/closed position.
Regular inspection: Check for leaks at the flange connections and stem packing. Inspect the stem for corrosion or wear.
Lubrication: Apply a corrosion-resistant lubricant to the stem threads and valve mechanism periodically to ensure smooth operation.
Seal maintenance: Replace stem packing or seat seals if leaks are detected. For Stellite-coated seats, inspect for wear and replace if necessary.
Storage: If the valve is not in use, store it in a dry, clean environment and protect the flange faces and stem from damage.
The 150LB Stainless Steel CF8/CF8m Flanged Gate Valve is a reliable, versatile solution for industrial flow control, offering exceptional corrosion resistance, structural integrity, and compatibility with global standards. Understanding the differences between CF8 and CF8m materials is key to selecting the right valve for your application—CF8 for cost-effective, non-chloride environments, and CF8m for harsh, chloride-rich or acidic conditions. By following proper installation and maintenance practices, this valve will deliver long service life, reduce downtime, and ensure safe, efficient operation in a wide range of industries.
Whether you’re designing a new pipeline system, retrofitting existing equipment, or procuring valves for industrial applications, the 150LB CF8/CF8m Flanged Gate Valve is a proven choice that balances performance, durability, and cost-effectiveness.
