Floating Ball Valve Service Life Depends on Manufacturing Technology? J-VALVES Process Upgrade Solves Leakage & Wear Pain Points

Industrial floating ball valves suffer three major losses: medium erosion, alternating high-low temperature and high-pressure impact. Most generic valves develop internal leakage, jamming and body rust after only 1-2 years of service, mainly caused by rough manufacturing technology and simplified precision processing by suppliers. With 17 years of R&D on floating ball valve craftsmanship, J-VALVES iterates four core processes: ball polishing, seat sealing, casting and anti-corrosion coating, drastically extending valve service life with proven reliability across thousands of global chemical & oil-gas projects.

1. Common Technical Defects of Ordinary Floating Ball Valves in Industry

1. Rough ball grinding with tiny scratches, leading to sealing failure & internal leakage after short-term medium erosion;

2. Floating seats without elastic compensation create gaps under temperature variation, causing severe leakage under high temperature;

3. Uneven wall thickness from sand casting leads to shell leakage under high pressure impact;

4. Thin single anti-corrosion coating rusts and peels within 3-6 months for outdoor installation;

5. Simplified factory inspection without 100% air tight test, triggering mass malfunctions after project operation.

2. Four Core Process Upgrades & Technical Advantages of J-VALVES Floating Ball Valves

1. Fully-automatic CNC Mirror Polishing Technology for Ball Cores

Abandoning manual rough grinding widely used in the industry, we adopt 5-axis linkage CNC spherical grinding equipment. Each ball undergoes 3 procedures: rough grinding, semi-finish grinding and mirror polishing with full automatic roughness control. Custom grinding fixtures for 8" large bore balls ensure roundness error ≤0.003mm for full contact between ball and seat, eliminating local erosion wear. Stellite hard alloy coating optional for media with solid particles to extend wear resistance service life by over 5 times.

2. 3rd Generation Bidirectional Elastic Pre-tension Floating Seat Technology

Self-developed 3rd gen bidirectional floating pre-tension seats with built-in stainless steel springs to maintain constant sealing force under forward & reverse medium flow. Compared with traditional single floating seats, it operates smoothly at -29℃ without jamming and eliminates thermal expansion gaps up to 200℃, solving frequent leakage issues of refinery & gas pipelines with alternating hot & cold flow. Two sealing filler options: reinforced PTFE for non-corrosive media and metal wound gaskets for heavy erosion fluid.

3. NDT Inspection for Precision Cast WCB Valve Bodies

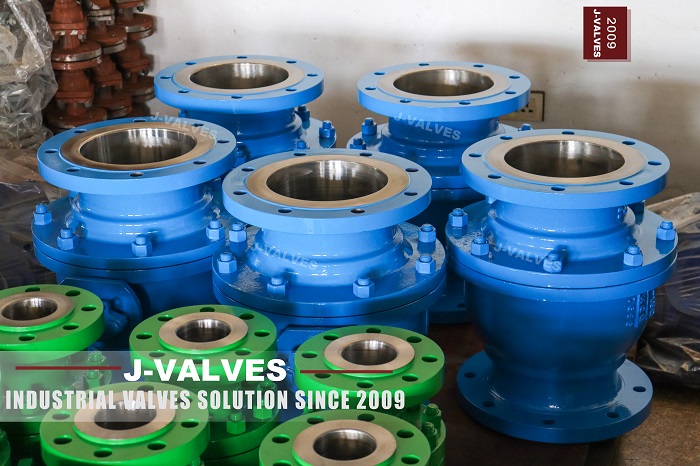

All WCB carbon steel bodies adopt silica sol investment casting, followed by UT ultrasonic and MT magnetic particle non-destructive testing to detect internal cracks & air holes. Defective blanks are fully scrapped without entering precision machining. Thickened valve flanges for Class 150 ANSI with precise bolt hole positioning, no on-site grinding adjustment needed to shorten construction period.

4. Integrated Multi-layer Heavy Anti-corrosion Coating Line

Standardized automatic coating flow: sandblasting rust removal → zinc-rich epoxy primer → intermediate anti-corrosion layer → top blue finish with total coating thickness ≥120μm, high-temperature curing to reach Grade 1 adhesion. No large-area rust after 5 years of service in coastal salt fog & corrosive chemical plants. Polished stainless steel lining inside flow channels prevents scaling & blockage from crude oil and sewage.

3. Domestic Success Case: Coal Chemical Circulating Water Pipeline Project

1. Stellite coated wear-resistant ball core to resist coal particle erosion;

2. 3rd gen bidirectional elastic floating seats adapting to seasonal temperature difference;

3. Thickened heavy anti-corrosion coating for outdoor pump house anti-rust protection.

No single valve developed leakage after 36 months of operation, saving over 280,000 RMB on annual maintenance & replacement costs. The park designated J-VALVES as exclusive floating ball valve supplier for Phase 2 & Phase 3 construction.

4. 3 Standards to Judge Professional Floating Ball Valve Manufacturers with Mature Craftsmanship

1. Complete in-house precision production line: automatic ball grinding & body machining equipment;

2. Full technical inspection reports available: NDT, roughness, salt spray and air tight test data;

3. Proven mass production cases of large-size ANSI valves for oil, gas and chemical mega-projects.

J-VALVES independently controls all floating ball valve craftsmanship from casting, machining, sealing assembly to inspection without outsourced semi-finished parts, ensuring long-term stable pipeline operation and supplying long-service-life floating ball valve solutions for global industrial projects.
