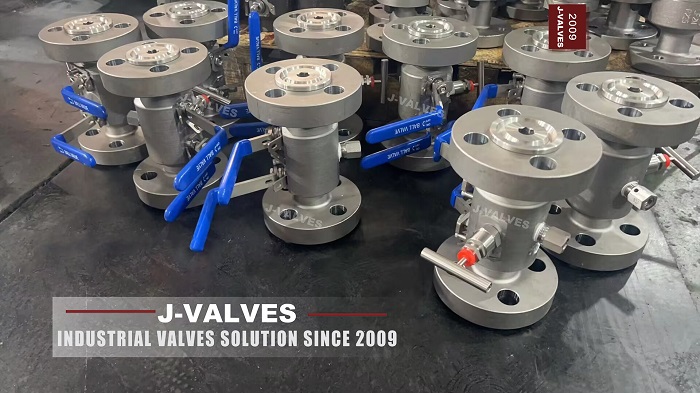

Double Block and Bleed (DBB) ball valves are critical components in fluid control systems, designed to provide reliable isolation and safety in various industrial applications. These valves are particularly important in high-pressure and high-temperature environments, such as oil and gas, chemical processing, and power generation. When selecting DBB ball valves, understanding the differences between ANSI and DIN standards is essential to ensure compatibility and performance.
Understanding ANSI and DIN Standards
ANSI (American National Standards Institute) standards are widely used in North America and are recognized globally for their rigor and detail. Key ANSI standards relevant to DBB ball valves include:
• ASME B16.34: This standard specifies the requirements for the design, construction, and testing of valves, including ball valves. It covers pressure-temperature ratings, materials, dimensions, and testing procedures.
• API 6D: This standard provides detailed requirements for pipeline valves, including DBB ball valves, covering design, materials, testing, and marking.
• API 608: This standard specifies the requirements for small-bore ball valves, including DBB configurations, ensuring they meet high-quality and safety standards.
DIN (Deutsches Institut für Normung) standards are widely used in Europe and are recognized globally for their comprehensive coverage and high-quality requirements. Key DIN standards relevant to DBB ball valves include:
• DIN EN 1092-1: This standard specifies the requirements for flanged end connections, ensuring compatibility and interchangeability.
• DIN EN 12516-1: This standard covers the design and construction requirements for industrial valves, including ball valves, ensuring they meet high-quality and safety standards.
• DIN EN 12266-1: This standard specifies the testing requirements for valves, including pressure testing and leakage testing, ensuring valves meet specified performance criteria.
Key Differences Between ANSI and DIN Standards
1. Pressure and Temperature Ratings
• ANSI: Uses pressure classes (e.g., Class 150, Class 300, Class 600) to specify the maximum allowable working pressure at a given temperature. These classes are based on pounds per square inch (psi).
• DIN: Uses nominal pressure (PN) ratings (e.g., PN10, PN16, PN40) to specify the maximum allowable working pressure at a given temperature. These ratings are based on bars.
• ANSI: Common materials include ASTM A105 (carbon steel), ASTM A182 F304 (stainless steel), and ASTM A182 F316 (stainless steel).
• DIN: Common materials include 1.4404 (stainless steel), 1.4435 (stainless steel), and 1.4462 (duplex stainless steel).
• ANSI: Structural lengths are specified in ASME B16.10, which provides detailed dimensions for different valve types and sizes.
• DIN: Structural lengths are specified in DIN EN 1092-1 and DIN EN 12221, providing detailed dimensions for different valve types and sizes.
• ANSI: End connections are typically specified in ASME B16.5 (flanged ends) and ASME B16.25 (welded ends).
• DIN: End connections are typically specified in DIN EN 1092-1 (flanged ends) and DIN EN 1092-2 (welded ends).
• ANSI: Testing requirements are specified in API 6D and API 598, covering hydrostatic and pneumatic testing, as well as leakage testing.
• DIN: Testing requirements are specified in DIN EN 12266-1, covering hydrostatic and pneumatic testing, as well as leakage testing.
