In modern industrial piping systems, dual plate wafer check valves have become an essential flow control component due to their compact structure, low pressure loss, and fast response characteristics. Compared with traditional swing check valves, dual plate wafer check valves provide improved installation flexibility, reduced weight, and excellent backflow prevention performance, making them widely used in oil & gas, chemical processing, power generation, marine systems, and water treatment applications.
The manufacturing process of a high-performance dual plate wafer check valve requires strict control over material selection, machining accuracy, surface finishing, assembly precision, and pressure testing. The production images show the professional machining and surface treatment process of J-VALVES dual plate wafer check valves, reflecting the company’s commitment to manufacturing reliability and engineering excellence.
A dual plate wafer check valve uses two semi-circular plates mounted on a central hinge system. When forward flow pressure exceeds the spring force, the plates open quickly. When flow decreases or reverse pressure occurs, the plates close automatically to prevent pipeline backflow.
The key structural advantages include:
Unlike traditional flanged check valves, the wafer connection design allows the valve to be installed between pipeline flanges with minimal space requirements.
Benefits include:
Reduced installation weight
Lower transportation cost
Easier maintenance
Improved pipeline flexibility
This compact structure makes dual plate wafer check valves especially suitable for large-diameter pipeline systems where equipment weight and space are critical factors.
The dual plate structure combined with spring-assisted closing technology enables rapid response during flow reversal.
This design helps to:
Reduce water hammer effects
Minimize pressure shock
Protect pumps and rotating equipment
Improve overall pipeline safety
For applications such as pump discharge lines and marine systems, fast closing capability is a key performance requirement.
The internal flow passage of a dual plate wafer check valve is designed to minimize turbulence and resistance.
Advanced machining technology ensures:
Smooth sealing surfaces
Accurate plate alignment
Stable opening and closing movement
Reduced energy loss during operation
These features contribute to improved system efficiency and longer service life.

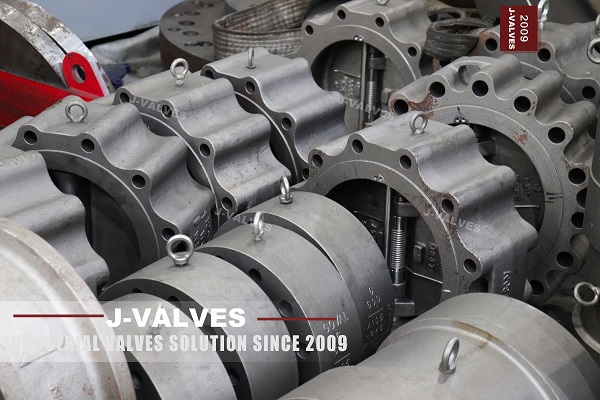

The manufacturing photos demonstrate the machining and surface finishing stages of J-VALVES dual plate wafer check valves.
Before final assembly, valve components undergo professional processing procedures, including:
The valve body requires high dimensional accuracy to ensure proper installation between pipeline flanges.
Advanced machining controls:
Body thickness tolerance
Flange alignment
Internal flow channel accuracy
Hinge positioning accuracy
Precise machining reduces installation stress and improves long-term sealing performance.

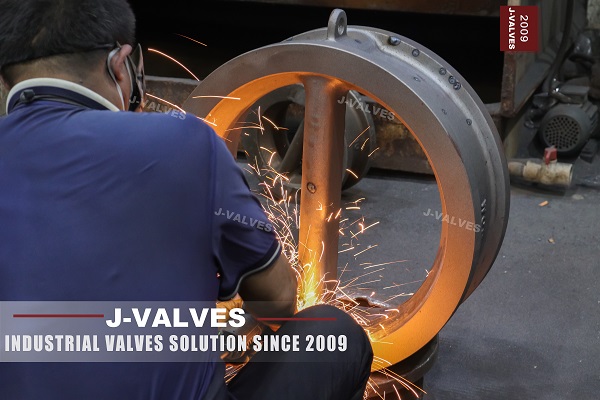

The surface treatment process plays an important role in improving valve appearance, corrosion resistance, and operational reliability.
Professional grinding and finishing procedures help to achieve:
Smooth sealing contact surfaces
Reduced machining defects
Better coating adhesion
Improved corrosion resistance
For valves operating in aggressive environments, proper surface treatment significantly extends service life.
J-VALVES provides dual plate wafer check valves with various material options according to different operating conditions.
Common materials include:
Carbon steel for general industrial applications
Stainless steel for corrosive media
Duplex stainless steel for high chloride environments
Nickel aluminum bronze for marine applications
Material selection is carefully considered based on:
Medium characteristics
Operating temperature
Pressure rating
Corrosion requirements
Industry standards
This engineering approach ensures that each valve provides reliable performance under actual working conditions.
Since 2009, J-VALVES has focused on industrial valve solutions and developed extensive manufacturing experience in check valves, ball valves, gate valves, and other critical flow control products.
The company integrates:
Engineering design
Precision machining
Assembly control
Pressure testing
Quality inspection
to provide reliable valve solutions for global customers.
Every J-VALVES dual plate wafer check valve undergoes comprehensive inspection before delivery.
Quality control includes:
Material verification
Dimensional inspection
Pressure testing
Leakage testing
Functional operation testing
These procedures ensure compliance with international valve requirements and customer specifications.
Different industries require different valve configurations.
J-VALVES provides customized solutions including:
Various pressure classes
Different body materials
Special sealing designs
Customized connection standards
Special operating environments
Whether used in offshore platforms, power plants, chemical facilities, or water systems, J-VALVES can provide suitable valve designs.
For marine applications, valves must withstand corrosion, vibration, and long-term operation.
J-VALVES dual plate wafer check valves with corrosion-resistant materials have been successfully supplied for marine pipeline systems, providing stable backflow protection and reliable operation in seawater environments.
In oil and gas pipelines, preventing reverse flow is essential for protecting pumps and ensuring system safety.
J-VALVES dual plate wafer check valves have been applied in pipeline projects requiring:
High reliability
Low maintenance
Long service life
Stable sealing performance
Water treatment systems require valves with excellent corrosion resistance and operational stability.
J-VALVES check valves have supported industrial water applications by providing efficient flow control and dependable reverse flow prevention.
Dual plate wafer check valves represent an advanced solution for modern industrial pipeline systems due to their compact structure, fast closing capability, and excellent flow performance. However, the reliability of these valves depends heavily on manufacturing precision, material selection, and quality control.
Through professional machining technology, advanced surface finishing processes, and strict inspection procedures, J-VALVES delivers high-quality dual plate wafer check valves designed for demanding industrial applications.
