C95800 Triple Offset Butterfly Valve Vs Conventional Butterfly Valve

Introduction

Butterfly valves are widely used in industrial pipeline systems due to their compact structure, lightweight design, and efficient flow control capability. However, different butterfly valve designs provide different levels of sealing performance, service life, and application reliability.

Compared with conventional butterfly valves, the C95800 Triple Offset Butterfly Valve offers significant advantages in high-performance applications, especially where corrosion resistance, tight shut-off, and long-term operation are required.

Manufactured with ASTM B148 C95800 Nickel Aluminum Bronze, the triple offset butterfly valve provides excellent resistance against seawater corrosion, erosion, and harsh operating environments. It is widely applied in marine engineering, offshore platforms, power plants, chemical industries, and water treatment systems.

J-VALVES specializes in providing high-performance C95800 Triple Offset Butterfly Valve solutions with advanced manufacturing technology and strict quality control.

Understanding Different Butterfly Valve Designs

1. Conventional Butterfly Valve (Centerline Butterfly Valve)

The centerline butterfly valve is the most basic butterfly valve design. The valve shaft is located at the center of the disc and pipeline.

Features:

• Simple structure

• Low manufacturing cost

• Compact installation

• Suitable for low-pressure applications

However, because the disc continuously contacts the seat during opening and closing, friction occurs between sealing surfaces.

Limitations include:

• Higher seat wear

• Limited temperature range

• Reduced service life under frequent operation

• Lower sealing capability for demanding applications

Centerline butterfly valves are commonly used in general water systems and low-pressure applications.

2. Double Offset Butterfly Valve

The double offset butterfly valve improves performance by introducing two eccentric designs:

• The shaft is offset from the disc centerline.

• The shaft is offset from the pipeline center.

This design reduces friction between the disc and seat during operation.

Advantages include:

• Reduced sealing wear

• Lower operating torque

• Longer service life

• Better shut-off performance

Compared with centerline butterfly valves, double offset butterfly valves provide improved reliability for medium-pressure industrial applications.

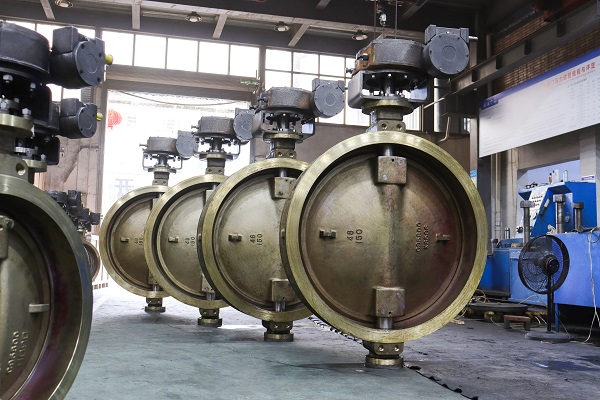

3. C95800 Triple Offset Butterfly Valve

The triple offset butterfly valve adds a third eccentric design based on the double offset structure.

The three offsets include:

1. Shaft offset from the disc centerline

2. Shaft offset from the pipeline centerline

3. Unique conical sealing geometry

The third offset creates a cam-like movement between the disc and seat, allowing the sealing surfaces to separate immediately after opening.

This eliminates unnecessary rubbing between sealing components.

Triple Offset Butterfly Valve vs Butterfly Valve: Sealing Performance Comparison

1. Zero Friction Sealing Design

The biggest advantage of a C95800 Triple Offset Butterfly Valve is its non-rubbing sealing mechanism.

During operation:

• The disc moves away from the seat immediately.

• Sealing surfaces do not scrape against each other.

• Mechanical wear is significantly reduced.

This design provides:

• Reliable bubble-tight shut-off

• Longer seat service life

• Lower maintenance requirements

2. Metal-to-Metal Sealing Capability

Unlike conventional butterfly valves using mainly soft sealing materials, triple offset butterfly valves commonly use metal sealing systems.

Advantages include:

• High temperature resistance

• Excellent pressure capability

• Improved fire-safe performance

• Suitable for demanding industrial media

This makes them ideal for applications requiring long-term reliability.

Why Choose C95800 Nickel Aluminum Bronze Material?

The material selection plays an important role in butterfly valve performance.

ASTM B148 C95800 Nickel Aluminum Bronze offers excellent properties:

1. Superior Corrosion Resistance

C95800 is widely recognized for its resistance to:

• Seawater corrosion

• Salt spray environments

• Marine atmosphere

• Industrial corrosion conditions

This makes it an ideal material for offshore and marine applications.

2. Excellent Anti-Erosion Performance

Industrial pipelines may experience high flow velocity and particle impact.

C95800 provides:

• High wear resistance

• Good mechanical strength

• Improved resistance against flow erosion

This helps extend valve service life in demanding systems.

Service Life Comparison

The triple offset design provides better durability, especially under:

• Frequent operation

• High temperature conditions

• Corrosive environments

• High-pressure applications

Applications of C95800 Triple Offset Butterfly Valve

Marine and Offshore Engineering

Due to excellent seawater resistance, C95800 triple offset butterfly valves are commonly used in:

• Offshore platforms

• Marine cooling systems

• Seawater pipelines

• Shipbuilding projects

Power Generation Industry

Applications include:

• Cooling water systems

• Steam systems

• Condensate systems

The metal sealing design supports reliable operation under temperature variations.

Chemical and Industrial Systems

Triple offset butterfly valves are suitable for:

• Process pipelines

• Corrosive media systems

• Industrial isolation applications

J-VALVES Advantages in C95800 Triple Offset Butterfly Valve Manufacturing

1. Professional Material Selection

J-VALVES understands the importance of material performance in harsh environments.

For C95800 triple offset butterfly valves, J-VALVES focuses on:

• ASTM B148 C95800 material control

• Casting quality management

• Corrosion resistance requirements

• Application-specific solutions

2. Advanced Triple Offset Design

J-VALVES triple offset butterfly valves feature:

• Precise eccentric geometry

• Low operating torque design

• Reliable metal sealing structure

• Long service life performance

3. Strict Quality Inspection

Each valve undergoes professional testing, including:

• Material verification

• Dimensional inspection

• Pressure testing

• Seat leakage testing

• Functional operation testing

This ensures consistent product quality for global industrial projects.

Conclusion

When comparing Triple Offset Butterfly Valve vs Butterfly Valve, the C95800 triple offset butterfly valve provides significant advantages in sealing reliability, corrosion resistance, and service life.

Compared with conventional centerline and double offset butterfly valves, the triple offset design eliminates sealing friction and delivers superior performance for demanding industrial applications.

With professional engineering capability, advanced manufacturing technology, and strict quality management, J-VALVES provides reliable C95800 Triple Offset Butterfly Valve solutions for marine, offshore, energy, and industrial pipeline systems worldwide.
