Understanding API and ANSI Standards

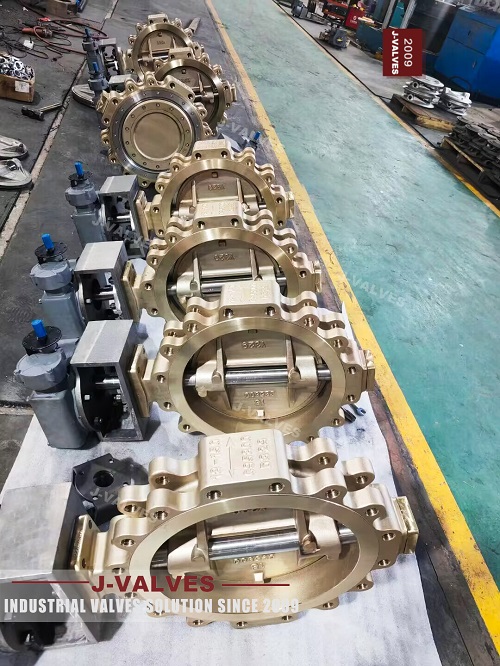

API 609 is a widely recognized standard developed by the American Petroleum Institute (API) that specifies the requirements for butterfly valves, including bronze butterfly valves. Compliance with API 609 ensures that these valves meet stringent quality and safety standards, making them suitable for a wide range of industrial applications, particularly in the oil and gas industry.
ANSI Standard
ANSI B16.34 is a standard developed by the American National Standards Institute (ANSI) that provides comprehensive guidelines for the design, construction, and testing of valves, including butterfly valves. Compliance with ANSI B16.34 ensures that these valves meet high-quality and safety standards, making them suitable for various industrial applications.
Design Differences Between API and ANSI Standards
1. Pressure and Temperature Ratings
• API 609: Specifies pressure ratings up to Class 1500, ensuring the valves can handle high-pressure applications. Temperature ratings are typically up to 425°C (800°F).
• ANSI B16.34: Covers a wide range of pressure ratings, including Class 150, Class 300, and Class 600. Temperature ratings are generally up to 425°C (800°F).
• API 609: Common materials include bronze (e.g., C95800), stainless steel, and alloy steel. The standard specifies the use of materials that can withstand high pressures and temperatures.
• ANSI B16.34: Similar materials are used, including bronze, stainless steel, and alloy steel. The standard provides detailed guidelines on material selection based on the specific application requirements.
• API 609: Requires rigorous testing, including hydrostatic and pneumatic tests, to verify the valve's integrity and performance. The standard also specifies inspection procedures to ensure the valves meet the required quality standards.
• ANSI B16.34: Specifies similar testing procedures, including hydrostatic and pneumatic tests, to ensure the valves can withstand the specified pressures and temperatures. The standard also includes detailed inspection requirements.
• API 609: Valves must be clearly marked with essential information, such as size, pressure rating, and material. Detailed documentation must accompany the valves, including manufacturing records and test results.
• ANSI B16.34: Similar marking requirements apply, ensuring valves are easily identifiable and traceable. Detailed documentation is also required to verify compliance with the standard.
