Basket strainers are a fundamental component in industrial fluid systems, serving to protect pumps, valves, heat exchangers, and other downstream equipment from debris and particulate matter. Their design allows for efficient filtration, minimal pressure drop, and easy maintenance, making them ideal for a wide range of industrial applications. Understanding their structural design and operational principles is essential for engineers and plant operators aiming to optimize system performance.

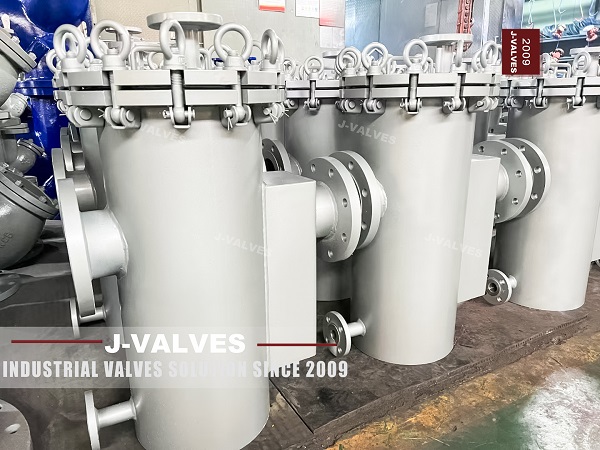

T-Shaped or Straight Body: Basket strainers feature a large body accommodating a basket-type filter element.
Material Options: Typically constructed from carbon steel, stainless steel, or alloy steel, selected based on fluid type, temperature, and pressure.
Flanged Connections: Most industrial basket strainers use flanged connections for easy integration with pipelines and secure sealing under high pressure.
Removable Basket: The basket can be lifted out for inspection, cleaning, or replacement, minimizing system downtime.
Large Filtration Area: Provides high debris-holding capacity, reducing pressure drop and extending maintenance intervals.
Screen Options: Fine mesh or perforated metal screens can be used depending on fluid type and particulate size.
Bolted or Hinged Cover: Allows easy access to the basket while ensuring a tight seal during operation.
Gasket Seals: High-performance gaskets prevent leakage even under high-pressure and high-temperature conditions.
Basket strainers operate passively, relying on the flow of the fluid:
Forward Flow: Fluid enters the strainer body and passes through the basket screen. Particles larger than the mesh size are trapped inside the basket.
Continuous Filtration: The fluid exits the strainer clean, protecting downstream equipment.
Pressure Management: The large filtration area minimizes flow restriction, maintaining a low pressure drop even under high-flow conditions.
Maintenance: When the basket reaches capacity, the cover is removed, and the basket is cleaned or replaced, restoring full flow capacity.
High Debris Capacity: Suitable for large pipelines or systems with high particulate content.
Low Pressure Drop: Large basket area ensures efficient flow and reduced pump energy consumption.
Ease of Maintenance: Removable baskets allow quick cleaning without pipeline disassembly.
Durability: Robust body construction can withstand high pressure and temperature industrial conditions.
Versatility: Can handle various fluids, including water, oil, chemicals, and steam.
Basket strainers are widely used in industrial and commercial fluid systems, including:
Oil & Gas Pipelines: Protect pumps and compressors from sand, rust, and debris.
Chemical and Petrochemical Plants: Filter aggressive or particulate-laden chemicals.
Water Treatment Systems: Ensure clean water flow to downstream equipment.
HVAC and Cooling Systems: Protect heat exchangers and chillers from scale and debris.
Power Generation: Maintain reliable operation of turbines, condensers, and auxiliary systems.
When selecting a basket strainer, engineers should consider:
Pipeline Size and Flow Rate: Determines basket dimensions and mesh size.
Fluid Characteristics: Viscosity, corrosiveness, and particulate size affect material and basket design.
Pressure and Temperature Ratings: Ensure body and gaskets meet system requirements.
Maintenance Frequency: Larger baskets reduce cleaning intervals, improving uptime.
Installation Space: Basket strainers require sufficient space for basket removal and maintenance.
Basket strainers are essential for protecting industrial systems from damage due to particulate contamination. Their robust structural design, large filtration area, and ease of maintenance make them a preferred choice in high-flow or high-debris pipelines. Proper selection and installation of basket strainers ensure efficient filtration, minimal pressure drop, and long-term system reliability across diverse industrial applications.
