Flanged Connections
• Design and Performance: Flanged ball valves are designed with flanges at both ends, allowing for easy installation and removal without the need to cut or weld pipes. This design ensures a secure connection and minimizes the risk of leaks.
• Ease of Installation: Flanged connections are relatively easy to install and can be done without specialized tools.
• Accessibility: Flanged valves can be easily accessed for maintenance and inspection, reducing downtime.
• Leak Prevention: The flange design provides a secure seal, minimizing the risk of leaks.
• Applications: Flanged ball valves are commonly used in industries such as oil and gas, chemical processing, and water treatment, where reliability and ease of maintenance are critical.
• Design and Performance: Flanged gate valves also feature flanges at both ends, providing a secure and reliable connection. The flange design allows for easy installation and maintenance.
Advantages
• Ease of Installation: Similar to ball valves, flanged gate valves are easy to install and can be done without specialized tools.
• Accessibility: Flanged connections provide easy access for maintenance and inspection.
• Leak Prevention: The flange design ensures a secure seal, reducing the risk of leaks.
• Applications: Flanged gate valves are widely used in industries such as oil and gas, chemical processing, and water treatment, where reliable shutoff and flow control are essential.
Welded Connections

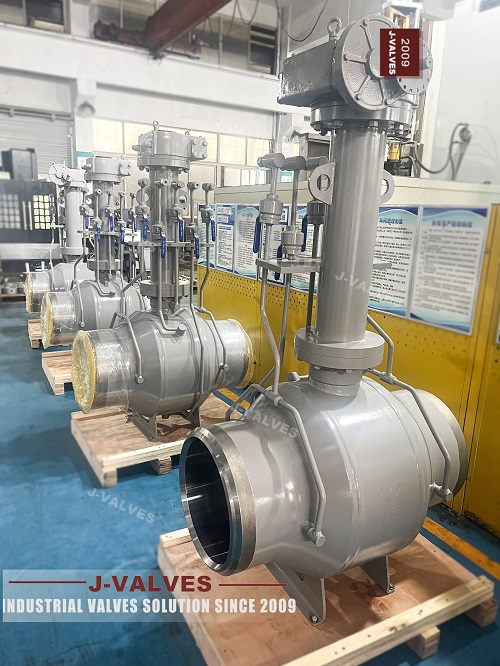

• Design and Performance: Welded ball valves are designed for permanent installation, providing a strong and reliable connection. The welding process eliminates the need for flanges, reducing the overall size and weight of the valve.
• Strength and Durability: Welded connections provide a strong and durable bond, suitable for high-pressure applications.
• Reduced Size and Weight: The absence of flanges reduces the overall size and weight of the valve, making it suitable for space-constrained applications.
• Leak Prevention: Welded connections eliminate potential leak points, ensuring a secure seal.
• Applications: Welded ball valves are commonly used in industries such as oil and gas, where high pressure and reliability are required.
• Design and Performance: Welded gate valves offer a permanent and reliable connection, suitable for high-pressure applications. The welding process ensures a strong bond and eliminates the need for flanges.
• Strength and Durability: Welded connections provide a strong and durable bond, making them suitable for high-pressure applications.
• Reduced Size and Weight: The absence of flanges reduces the overall size and weight of the valve, making it ideal for space-constrained applications.
• Leak Prevention: Welded connections eliminate potential leak points, ensuring a secure seal.
• Applications: Welded gate valves are widely used in industries such as oil and gas, chemical processing, and power generation, where high pressure and reliability are essential.
Threaded Connections
• Design and Performance: Threaded ball valves feature threaded ends that allow for easy installation into threaded piping systems. This design provides a secure connection and is suitable for smaller diameter pipes.
• Ease of Installation: Threaded connections are relatively easy to install and can be done without specialized tools.
• Cost-Effective: Threaded ball valves are generally more cost-effective compared to flanged or welded valves.
• Leak Prevention: Properly tightened threads provide a secure seal, minimizing the risk of leaks.
• Applications: Threaded ball valves are commonly used in smaller diameter piping systems, such as those found in residential and commercial plumbing applications.
• Design and Performance: Threaded gate valves also feature threaded ends, providing a secure connection suitable for smaller diameter pipes. The threading ensures a tight seal and is easy to install.
• Ease of Installation: Threaded connections are easy to install and can be done without specialized tools.
• Cost-Effective: Threaded gate valves are generally more cost-effective compared to flanged or welded valves.
• Leak Prevention: Properly tightened threads provide a secure seal, minimizing the risk of leaks.
• Applications: Threaded gate valves are commonly used in smaller diameter piping systems, such as those found in residential and commercial plumbing applications.
| Feature | Flanged Connections | Welded Connections | Threaded Connections |
| Ease of Installation | Easy, no specialized tools required | Requires welding equipment and expertise | Easy, no specialized tools required |
| Strength and Durability | Secure and reliable | Strong and durable, suitable for high-pressure applications | Suitable for smaller diameter pipes, less durable under high pressure |
| Leak Prevention | Secure seal, minimizes leaks | Eliminates potential leak points | Properly tightened threads provide a secure seal |
| Cost | Moderate to high | High due to welding requirements | Low to moderate |
| Applications | Oil and gas, chemical processing, water treatment | Oil and gas, high-pressure applications | Residential and commercial plumbing |
