API 6D is a comprehensive standard specifically designed for pipeline valves used in the transportation of oil, gas, and other liquids. It covers various types of valves, including ball valves, gate valves, globe valves, check valves, and plug valves. For ball valves, API 6D provides detailed guidelines on design, manufacturing, testing, and documentation to ensure they meet high standards of safety, performance, and durability.
Key Features of API 6D Ball Valves
1. Pressure and Temperature Ratings
• Pressure Classes: API 6D ball valves are available in various pressure classes, including Class 150, 300, 600, 900, 1500, and 2500. These pressure classes ensure that valves can handle a wide range of operating pressures.
• Temperature Range: These valves are designed to operate efficiently in temperatures ranging from -46°C to 200°C, making them suitable for various industrial applications.
• Body and Bonnet: Typically constructed from high-strength materials such as carbon steel, stainless steel, and alloy steel. These materials provide durability and resistance to corrosion and high temperatures.
• Seats and Seals: Often made from materials like PTFE, nylon, or metal, ensuring reliable sealing performance under high-pressure conditions.

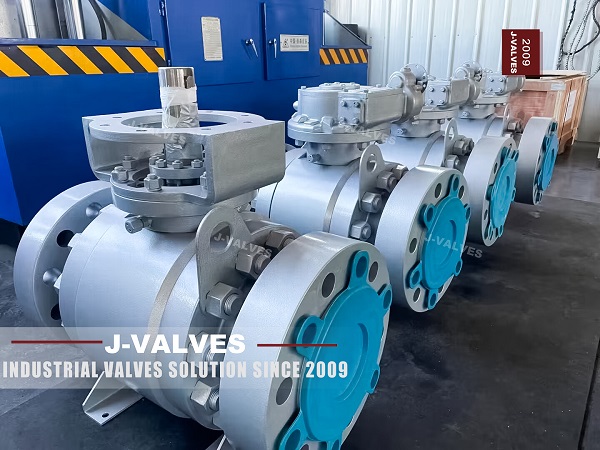

• Ball Design: Available in both floating and trunnion-mounted configurations. Trunnion-mounted ball valves are preferred for high-pressure applications due to their stability and reduced operating torque.
• End Connections: API 6D ball valves come with various end connections, including flanged, threaded, and welded ends, to accommodate different piping systems.
• Safety Features: Many API 6D ball valves are designed with fire-safe features, double block-and-bleed capabilities, and emergency seat sealing to enhance safety in critical applications.
Matching API 6D Ball Valves with Operating Conditions
• Selection Criteria: Choose ball valves with higher pressure classes (e.g., Class 600, 900, or 1500) to ensure they can handle the required operating pressures.
• Design Considerations: Opt for trunnion-mounted ball valves, which offer greater stability and reduced operating torque under high-pressure conditions.
2. High-Temperature Applications
• Selection Criteria: Select valves with materials suitable for high-temperature operation, such as stainless steel or high-temperature alloys.
• Design Considerations: Ensure the valve seats and seals are made from materials that can maintain their integrity at elevated temperatures.
• Selection Criteria: Choose ball valves constructed from corrosion-resistant materials such as stainless steel or alloy steel.
• Design Considerations: Consider valves with additional protective coatings or linings to enhance resistance to corrosive fluids.
