Understanding Ball Valve Designs

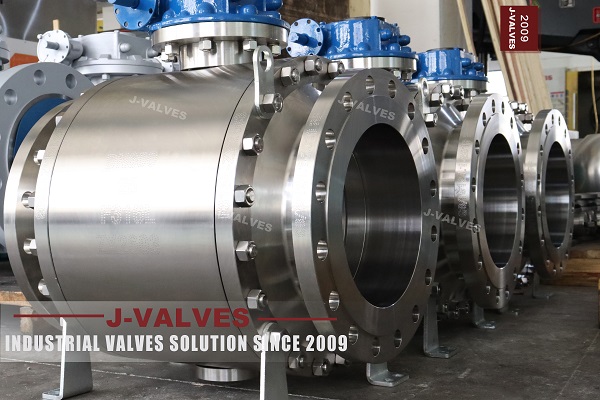

Full-bore ball valves, also known as full-port or full-diameter ball valves, have an internal diameter that matches the diameter of the connecting pipeline. This design ensures that the fluid flow is not restricted when the valve is open, providing minimal pressure drop and maximum flow capacity.
Key Features of Full-Bore Ball Valves
• Unrestricted Flow: The internal diameter of the valve matches the pipeline, allowing for unrestricted fluid flow.
• Low Pressure Drop: Due to the unrestricted flow path, full-bore ball valves have a lower pressure drop compared to reduced-bore valves.
• High Flow Capacity: Ideal for applications requiring high flow rates and minimal energy loss.
• Ease of Cleaning: The straight-through design makes it easier to clean and inspect the valve.
Reduced-bore ball valves, also known as reduced-port or standard-bore ball valves, have a smaller internal diameter compared to the connecting pipeline. This design reduces the overall size and weight of the valve, making it more cost-effective.
Key Features of Reduced-Bore Ball Valves
• Smaller Size and Weight: Reduced-bore valves are generally smaller and lighter, making them easier to install and handle.
• Cost-Effective: The smaller size and reduced material usage make reduced-bore valves more cost-effective compared to full-bore valves.
• Higher Pressure Drop: Due to the smaller internal diameter, reduced-bore valves have a higher pressure drop compared to full-bore valves.
• Lower Flow Capacity: Suitable for applications where flow capacity is not a primary concern.
Comparative Analysis: Full-Bore vs. Reduced-Bore Ball Valves
| Feature | Full-Bore Ball Valves | Reduced-Bore Ball Valves |
| Flow Capacity | High | Low |
| Pressure Drop | Low | High |
| Suitable Applications | High-flow, low-pressure drop applications | Cost-sensitive, lower flow applications |
| Feature | Full-Bore Ball Valves | Reduced-Bore Ball Valves |
| Size and Weight | Larger and heavier | Smaller and lighter |
| Ease of Installation | May require more space | Easier to install in tight spaces |
| Maintenance | Easier to clean and inspect | May require more frequent maintenance due to higher pressure drop |
Practical Tips for Material Selection
1. Assess the Operating Environment
• Fluid Type: Identify the type of fluid being handled, including its corrosiveness, viscosity, and specific gravity.
• Temperature and Pressure: Determine the maximum operating temperature and pressure. Ensure the valve material and design can withstand these conditions.
• Flow Characteristics: Consider the velocity and turbulence of the fluid flow. Full-bore valves are ideal for applications requiring high flow rates and minimal pressure drop.
• Flow Requirements: If high flow capacity and minimal pressure drop are critical, a full-bore ball valve is the better choice.
• Space Constraints: If space is limited, a reduced-bore ball valve may be more suitable due to its smaller size and weight.
• Cost Considerations: Evaluate your budget and consider the long-term costs of maintenance and energy consumption. Full-bore valves may have a higher upfront cost but can save on energy costs due to lower pressure drop.
3. Evaluate Cost and Availability
• Budget Constraints: Balance the need for high performance with cost considerations. Reduced-bore valves are generally more cost-effective.
• Material Availability: Ensure the selected material is readily available and can be sourced reliably.
• Valve Manufacturers: Engage with manufacturers to understand the specific requirements and limitations of different valve designs.
• Material Experts: Consult with experts to validate material selection and ensure it meets the application's needs.
