Three numbers decide what kind of valve you are buying, and none of them is the diameter printed on the datasheet.

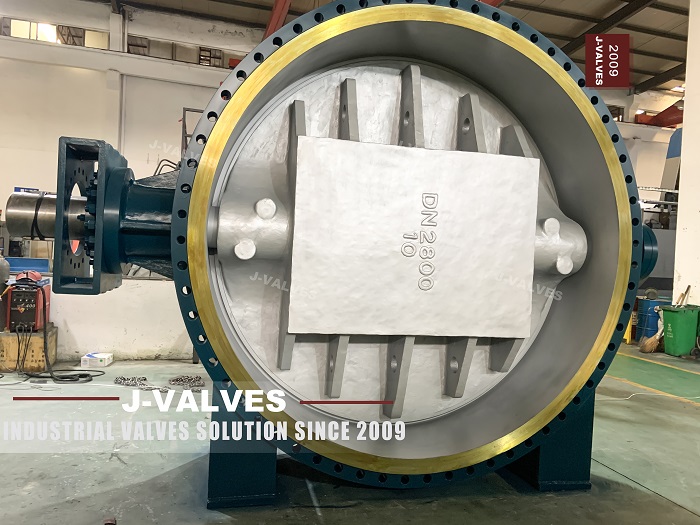

To DN1500 you can buy a valve built to a product standard. To DN1800 you can still buy a valve built to a water-industry standard, provided the fluid is water, the pH sits between 6 and 12, and the temperature stays under 52 °C. Above DN1800 you buy a drawing, a set of calculations and a test record — plus a technical agreement that somebody in your organisation has to sign.
That is the whole argument. The rest of this article is the evidence for it, and the practical clauses that follow from it.
Ceiling | Size | Governing document | What fails beyond it |
First | NPS 60 (DN1500) | API 609 9th Ed. size limit; ASME B16.47 dimension tables | Process-service valves lose their API purchase specification; flanges fall back to AWWA C207 or engineered drawings |
Second | 72 in (DN1800) | AWWA C504-23 size limit | Water-service valves lose their AWWA basis; pH, pressure and velocity defaults all expire together |
Third | DN4000 | EN 593:2017 size limit | No product standard anywhere covers the size; only manufacturer standards and buyer specifications remain |
One useful observation falls out of that table: between DN1500 and DN1800 lies the only window in the world where a large butterfly valve is covered by two standards at once. Inside that window you can choose between API 609 and AWWA C504 on technical grounds. Step past 72 in and the choice stops being a choice — you are writing the specification yourself.
The 9th Edition splits butterfly valves into exactly two categories, and the wording is unusually clean:
Category A — manufacturer's rated cold working pressure (CWP) valves, usually with a concentric disc and seat. Covered from NPS 2 to NPS 60 for valves with ASME Class 125 or Class 150 flange bolting patterns.
Category B — ASME class and pressure-temperature-rated valves that must have an offset seat; the disc may be eccentric or concentric. Lug and wafer types run NPS 2–60 in Class 150 and 300, NPS 3–60 in Class 600. Double-flanged short and long pattern, and butt-welding ends, run NPS 3–60 in Classes 150, 300 and 600.
Two errors come up often enough to be worth naming.
There is no Category C. A conforming valve is marked either API 609A or API 609B. The "Category C" that circulates on supplier websites and in inherited purchase documents is not standard language; it usually means a triple-offset metal-seated valve, which is a Category B valve under the actual text.
Category B does not require an eccentric disc. The standard requires an offset seat. A concentric disc inside an offset seat is still a Category B valve. So a supplier arguing "our disc is eccentric, therefore Category B" is reasoning past the standard, and a buyer arguing "the disc is concentric, therefore it is not Category B" is doing the same thing in the other direction.
For procurement the consequence is blunt: "API 609 compliant" carries almost no information. Specify the edition, the category, the size, the end connection, the face-to-face dimension, the rating basis (CWP or ASME class) and the seat rating. Leave one out and two compliant quotations can differ by a factor of two in price and by a decade in service life.
There is a second limit buried in the same paragraph: API 609 tops out at Class 600. A DN1200 Class 900 butterfly valve is not an API 609 valve. It is a valve designed to ASME B16.34 that happens to follow API 609 dimensions.
AWWA C504-23, published August 2023 to supersede C504-15, is the most complete specification available for large water-service butterfly valves. Its scope is also far narrower than most project specifications assume.
Rubber seat only. 3 in through 72 in (DN75–1800), for raw water, potable water, wastewater and reclaimed water, at pH 6–12 and 33–125 °F (0.6–52 °C).
250 psig ceiling. Maximum steady-state working pressure and maximum steady-state differential pressure are both 250 psi (1,723 kPa); maximum full-open velocity is 16 ft/s (4.9 m/s) based on nominal size.
Two velocity classes, not two quality grades. Class A valves are rated for 8 ft/s (2.4 m/s) in the upstream pipe; Class B for 16 ft/s (4.9 m/s). The letter is a flow permission, not a build standard.
Then there is the structural limit that matters most at large sizes: wafer valves appear in C504 only as Class 150B, 3–20 in (DN75–500). In the AWWA world, a water-service butterfly valve above DN500 is not supposed to be a wafer valve at all. A DN1200 wafer butterfly in a cooling-water header is either outside the standard's scope or was never built to it.
The 52 °C ceiling catches operators more often than designers expect. Closed-circuit cooling water in a hot climate, or the short temperature excursion after condenser ball cleaning, can push past 50 °C. At that point the rubber seat, the pressure rating and the velocity allowance all enter undefined territory, and the specification has to move to EN 593 plus project requirements.
Size band | Flange standard | The limit that bites |
NPS ½–24 (DN15–600) | ASME B16.5 | Runs to NPS 24 |
NPS 26–60 (DN650–1500) | ASME B16.47 | Series A derives from MSS SP-44 (heavier, fewer larger bolts, RTJ facing available Class 300–900); Series B from API 605 (lighter, more smaller bolts). The two series do not bolt to each other, and the standard stops at Class 900 |
4–144 in (DN100–3600) | AWWA C207 | Waterworks ring-type slip-on and blind flanges, flat face; Class B 86 psi, D 175 psi (150 psi above NPS 12), E 275 psi, F 300 psi. Not interchangeable with B16.47 |
Above NPS 60 | No standard table | Engineered and drawn per unit |
So when a DN2000 butterfly valve datasheet says "flanges to ASME B16.47", that clause cannot be executed. B16.47 has no NPS 80 table. The correct wording is either "flanges to AWWA C207 Class D, dimensions per attached drawing" for water service, or "manufactured to buyer's drawing, flange dimensions as attached".
This is the single most common place where a technically sound valve arrives at site and does not fit. It is also the cheapest to prevent: one drawing, issued before the purchase order.
Once diameter grows, the first thing to fail is not strength. It is the ability of the disc to leave the seat cleanly.
Design | Offsets | Disc-to-seat interference over full travel | Typical pressure ceiling | Seat material |
Concentric (centreline) | 0 | Contact through the whole 90°, sealing by elastomer deflection | Class 150 / PN16 | EPDM, NBR, PTFE; roughly ≤121 °C |
Double offset | 2 (axial + radial) | Rubbing through roughly the first and last 10° | Class 300 typical | PTFE / RPTFE, or metal |
Triple offset | 3 (plus a tilted seat cone axis) | Theoretically 0° | Class 900, with some ranges to 1500 | Laminated metal + graphite, or solid metal |
Published geometry notes quantify this more sharply: a single-offset disc interferes with the seat through about 60° of each stroke, a double-offset disc through about 10°, and a triple-offset disc through 0°. That is the real reason large valves go triple offset — not because it is a premium feature, but because at larger D the same 10° of rubbing sweeps a longer arc of sealing surface. At DN1800 the seat circumference is about 5.65 m, so 10° corresponds to roughly 157 mm of wipe; at DN600 it is about 52 mm. A double-offset design that survives ten years at DN600 will cut a groove into a laminated seat at DN1800 in three.
The third offset's cone angle generally lands between 15° and 20°, and the window is narrow for mechanical reasons:
Too small an angle and the cone approaches self-locking. The final degrees of closing need a large axial thrust to break away again, opening torque spikes, and the seat can seize after a hot soak.
Too large an angle and the same actuator torque converts into less radial seating stress. Metal-to-metal sealing then cannot hold ISO 5208 Rate A.
Only inside that band do conversion efficiency and clean breakaway coexist.
Which leads to the most misunderstood property of a triple-offset valve: it is torque-seated, with no body stop. The closed position is set by actuator output torque, not by a mechanical stop in the body. Set the torque low and you have insufficient seating stress, so it leaks from day one. Set it high and the cone stays over-driven, the seal ring takes a permanent set, and two years later it will not close at all. Zero leakage in a triple-offset valve is a torque setting, not a factory condition.
That is why large triple-offset valves should ship with a torque curve, and why EN 593:2017 added informative Annex E on torque curves at different flow velocities. The annex is not there to help you calculate torque. It is there to tell you that torque moves with duty.
This is the one part of large-valve selection where arithmetic can find the problem before the purchase order does. Put DN600 and DN1800 side by side:
Quantity | Scaling | DN600 | DN1800 | Ratio |
Seat circumference | ∝ D | 1.88 m | 5.65 m | 3× |
Disc flow area | ∝ D² | 0.283 m² | 2.54 m² | 9× |
Disc mass (equal-stress scaling) | ∝ D³ | baseline | approx. 27× | 27× |
Seating torque | ∝ D² | baseline | approx. 9× | 9× |
Normalised shaft deflection (shaft scaled proportionally) | ∝ D² | baseline | approx. 9× | 9× |
The first two rows are common knowledge. The last three are where projects get hurt.
Shaft deflection does not scale. The hydraulic thrust on the disc grows with D², the cantilever span grows with D, and bending stiffness grows only with the fourth power of shaft diameter. Scale a DN600 shaft up by three and call it a DN1800 design, and normalised deflection climbs by roughly 9×. The acceptance line used in practice is shaft deflection no greater than 0.1 % of the unsupported span. At DN1800 with a 1,200 mm bearing span, that allows 1.2 mm. That is no longer a "pick a thicker shaft" problem; it needs additional bearing support or a higher-yield shaft material. And the failure mode is not fracture — it is a tilted disc, one side of the seat crushed, the other side leaking, and a field complaint that reads "it leaks no matter how we set the torque".
Disc mass scales as the cube, and it bites during logistics, not operation. Twenty-seven times is not a paper number. It sets lug positions, transport restraints and whether the valve can be rotated after it is already in the pipe. A large disc must be mechanically locked closed or open for transport, because vibration in transit lets it swing inside the body and batter the seating surfaces. This clause almost never appears in purchase documents, and appears regularly in site claims.
Seating torque scales as the square, and the actuator is sized on the worst case. Nine times is the steady state. What belongs in the datasheet is the maximum of three cases: breakaway torque at maximum differential, additional torque after deposition or scaling, and breakaway after long idle or at low temperature. Practice is to take that maximum and apply 1.5, rising to 2.0 for solids-bearing service or long idle periods. AWWA C504-15 devoted part of its revision to actuator stroke times and sizing margins for exactly this reason: large valves were arriving that would close but not seal — enough torque to stroke, not enough to seat.
Almost every large butterfly valve ends up in one of three water duties: cooling water, raw or seawater, and solids-bearing water. They demand different valves, yet purchase documents routinely describe them with the same sentence.
Velocity. AWWA C504 already draws the line: 8 ft/s (2.4 m/s) for Class A, 16 ft/s (4.9 m/s) for Class B, based on nominal size, measured upstream of the valve. Specifying Class A into a 3 m/s line is out-of-scope use; specifying Class B into sand-laden water trades seat life for flow area. For solids-bearing duty — sand-laden seawater, cooling-water blowdown — design velocity is usually held under 2 m/s, because erosion rate rises roughly with the cube of velocity. Going from 2 m/s to 4 m/s does not double the wear; it multiplies it by nearly eight.
Deposition and marine growth. A closed large butterfly valve seals on a full circle of line contact between disc edge and seat. A single 0.5 mm shell or deposit anywhere on that circle keeps the whole valve from sealing. In seawater systems idle for more than about three months, barnacle and algae settlement is close to certain, and the symptom is specific: actuator at limit, limit switch made, visible leakage anyway. The fix is not in the valve. It is periodic partial-stroke exercising (a full stroke every two to four weeks), electrochlorination or chlorination, and a cleanable strainer upstream.
Materials and galvanic couples. The classic seawater mistake is a carbon steel body with a duplex stainless disc. With intact coating it works. The moment the coating is breached — in transport, in storage, during installation — the breach becomes a small anode against several square metres of duplex cathode. Anode-to-cathode area ratios above 1:100 are easy to reach, and perforation is then measured in weeks, not years.
Material | Typical PREN (%Cr + 3.3%Mo + 16%N) | Seawater suitability |
316L | 24–26 | Not suitable: crevice corrosion in stagnant zones |
Duplex S31803 / S32205 | approx. 34–36 | Conditional: velocity and cathodic protection potential must be controlled |
Super duplex S32750 | approx. 40–43 | Suitable: chloride, sand, elevated temperature |
254 SMO (S31254) | approx. 43 | Suitable: high chloride, crevice conditions |
Nickel aluminium bronze C95800 | PREN not applicable | Suitable for disc and seat retainer; good against biofouling and erosion |
Titanium Gr.2 | PREN not applicable | Suitable: full seawater, maintenance-free, highest cost |
Two field notes. Duplex is not "stainless, but better." F51 (S31803), F53 (S32205) and F55 (S32760) are not interchangeable, and treating them as "all duplex" is exactly how chloride service gets mis-specified. Cathodic protection is not a case of the more negative the better. Over-protecting duplex stainless generates hydrogen at the surface and introduces a hydrogen-stress-cracking risk; the potential window should follow DNV-RP-B401 rather than simply tying the structure to −1.1 V.
External coatings follow NORSOK M-501: System 1 at 320 µm dry film for general atmospheric exposure, System 7 at 500 µm for highly corrosive marine atmosphere and splash zones. Getting the coating system wrong is more common than getting the body material wrong, cheaper to correct — and it produces the same galvanic consequences as a material error.
These six were selected on two criteria: they appear within one to five years of commissioning, and they can be stopped at the procurement stage.
Failure chain | Trigger | Field symptom | Where to intercept it |
① Seat indentation | Inadequate flushing; weld slag or grit trapped in the body cavity, pressed into the seat on first closure | Leaks at commissioning; ring of dents found on strip-down | Temporary strainer upstream; contractual requirement to flush and confirm cavity cleanliness before first closure |
② Disc edge erosion | Long-term throttling below 30 % opening; solids-laden flow scours disc rim and downstream seat | Leakage rising year on year; disc rim thinned to a knife edge | State that the valve is an isolation valve, not a control valve; if throttling is unavoidable, restrict to 30–70 % and hard-face the disc |
③ Disc detachment | Disc-to-shaft joint relying on a single taper pin, inadequate torque margin, vibration loosening the pin | Sudden loss of flow control; disc lodged in the pipe | Taper pin plus key, torsional safety factor ≥2.0, connection calculation required |
④ Flange leakage | Insufficient flange rigidity at large size, unreleased pipe stress, uneven bolt preload | Local weeping around the flange circumference at test or commissioning | Flange calculation; mandatory drawing above NPS 60; staged symmetrical bolt tightening with torque records |
⑤ Failure to close | Marine growth or sediment on the seat or in the cavity bottom, preventing full closure | Stroke completed, flow continues, leakage varies with season | Drain/flush connections in the cavity; scheduled full-stroke exercising during outages; upstream strainer where needed |
⑥ Galvanic perforation | Carbon steel body with high-alloy disc or retainer; coating breach creates a small anode against a large cathode | Rapid localised pitting of the body, usually within one to two years | Same-material principle or reliable isolation; coating to NORSOK M-501; extra coats on welds and edges |
Only chain ③ is a product-quality issue. The other five are system and documentation issues. That is the honest portrait of a large butterfly valve: about seventy per cent of its reliability lives outside the valve.
Boundary 1 — Pigging, swabbing or scraping lines: a butterfly valve is structurally excluded. The disc always occupies the bore, so a pig cannot pass. API 6D and API 6DSS requirements for piggable pipelines, including transition sections and spools, mean that mainline block valves cannot be butterflies. What a butterfly can serve in a pipeline system is station piping, cooling water and drains — the non-piggable branches.
Boundary 2 — Above DN1800 with a contractual requirement for US standards, the contract cannot be executed as written. API 609 and B16.47 both stop at NPS 60. There are two honest routes: adopt EN 593:2017 (DN20–DN4000, PN2.5–160, Class 150–900), or state "manufacturer standard plus buyer specification" and drop the standard reference. The third route — asking a supplier for a certificate of conformance "with reference to" API 609 — is the most dangerous, because it transfers compliance onto a signature with no standard behind it.
Boundary 3 — Double block and bleed is not achievable with a single butterfly valve. A butterfly is a single sealing element; it has no two-seal-plus-cavity-vent capability. DBB needs two valves with a vent between them, or a DBB ball or plug valve. Presenting "triple-offset zero leakage" as DBB is one of the most frequently raised non-conformities in safety audits.
Boundary 4 — Sustained reverse differential with bidirectional zero leakage requires a bidirectional design; it cannot be assumed. Triple-offset valves usually have a preferred flow direction, and reverse sealing relies on the seal ring deflecting the other way, with a measurably shorter life. The datasheet must state bidirectional sealing and require a bidirectional test, or what arrives is a unidirectional valve.
Boundary 5 — Buried service without an operating chamber: a large butterfly cannot be installed, and cannot be repaired. Vertical stem, extended bonnet and a raised gearbox are workable, but the chamber is normally at least 600 mm internal diameter and must accommodate the gearbox and handwheel rotation. A DN2000 handwheel does not fit into a hole in the ground.
Standard and category. Butterfly valves to API 609 9th Edition, Category B, marked API 609B; or to EN 593:2017 with the eccentric design stated. Quotations that say only "complies with API 609" without a category are not acceptable.
Size and end connection. State DN and NPS together. State the end type — double-flanged short or long pattern, lug, butt weld. Above DN600, double-flanged is recommended.
Face-to-face. Per the API 609 tables or the applicable EN 558 series. Short and long pattern are not interchangeable; the datasheet must pick one.
Flanges. NPS ≤24 to ASME B16.5; NPS 26–60 to ASME B16.47 with Series A or B stated (they do not interchange); water service may use AWWA C207 with the class stated. Above NPS 60 a flange drawing is mandatory.
Pressure-temperature rating. Provide the rating curve at design temperature, not just a class number. Reference point: Class 150 carbon steel at 38 °C is 19.6 bar (285 psi); the warm-temperature derating must appear in the datasheet.
Shell and seat test. Shell at 1.5× rating, seat at 1.1× rating, per API 598. The shell test must be run with the valve fully open; testing closed puts the full differential across one side of the seat.
Leakage class. Liquid service to ISO 5208 Rate A (no visible leakage). If a metal seat can only achieve Rate D (0.1×DN), state it — do not write "zero leakage" generically.
Shaft. Material (17-4PH H1150, S20910 or duplex), diameter, anti-blowout construction. Submit a deflection calculation; maximum deflection ≤0.1 % of unsupported span.
Disc-to-shaft joint. Taper pin plus key, torsional safety factor ≥2.0, calculation required. Single-pin or weld-only torque transfer is not acceptable.
Materials and corrosion. In seawater, body and disc in the same material family or reliably isolated. Duplex grades to ASTM A240/A182 with the specific UNS number (S31803, S32205 and S32750 are not interchangeable). External coating to NORSOK M-501 System 1 (320 µm) or System 7 (500 µm).
Actuator. Torque taken as the maximum of breakaway at maximum differential, deposition allowance and breakaway after long idle, multiplied by 1.5 (2.0 for solids or long idle). Torque curve to be supplied, per EN 593:2017 Annex E.
Documentation. EN 10204 3.1 material certificates, NDT reports, pressure test records, torque curve, installation and lifting instructions, transport locking instructions. One missing item, no acceptance.
If | Then |
Size ≥ DN1800 and the fluid is water | Design to AWWA C504 logic; above 72 in move immediately to EN 593 plus project specification and stop claiming C504 compliance |
Size ≥ DN1800 and the fluid is a process stream | Drop the API 609 reference; design to ASME B16.34, dimension to EN 593, document to buyer specification |
Solids content above 0.5 % (sand, slurry, tailings) | Double or triple offset with metal seat; no concentric resilient seat; design velocity ≤2 m/s |
Bidirectional zero leakage with sustained reverse differential | Triple offset with laminated metal seat, "bidirectional" stated in the datasheet, bidirectional test required |
Long-term throttling below 30 % opening | A butterfly is not the control valve; use a purpose-built control valve, or restrict throttling to 30–70 % with a hard-faced disc |
The line must be pigged | The butterfly is out; use a full-bore ball or gate valve |
Seawater above 40 °C | Not 316L; use super duplex S32750 or titanium Gr.2, with cathodic protection potential per DNV-RP-B401 |
The valve will be buried | Vertical stem, extended bonnet, raised gearbox; chamber internal diameter ≥600 mm |
DN above 600 | Double-flanged, not wafer; C504 itself limits wafer valves to 20 in (DN500) |
Site cannot perform a 1.5× shell test | Complete the shell test at the factory; at site run only the system test (1.5× design pressure to ASME B31.3, 1.25× MOP to ASME B31.4), with the valve fully open |
Can a DN2000 butterfly valve be purchased to API 609?
No. The 9th Edition stops at NPS 60 (DN1500), and that ceiling applies to both Category A and Category B. DN2000 is NPS 80, outside the scope. Three routes remain: EN 593:2017, which reaches DN4000; manufacturer standard plus buyer specification; or changing the design so the valve size comes back inside DN1500, for example by splitting into two parallel valves. Any certificate claiming a DN2000 valve "complies with API 609" is missing a clause that can be checked.
Triple offset or double offset at large size — how do I decide?
Four criteria; any one of them points to triple offset: design pressure above Class 300; design temperature above the continuous limit of a PTFE/RPTFE seat; bidirectional zero leakage required; solids or scaling tendency in the fluid. When none applies, double offset is still clearly cheaper below DN1200, with lower torque and a smaller actuator. Conversely, insisting on double offset above DN1800 usually means you have already accepted a seat replacement every three years.
Why does a large butterfly valve fail to seal, with no leak I can find?
Because the leak is rarely the body. It is the full-circle line contact at the seat. At DN1800 that circle is roughly 5.65 m long, and one 0.5 mm deposit, shell or indentation anywhere on it creates a through path. The shell test at 1.5× passes cleanly while the seat test at 1.1× fails. Work in this order: check the cavity for debris and deposition, then check that the disc actually reaches full closure (is the torque sufficient), and only then examine seat geometry. Do it the other way round and you will strip a valve for nothing.
Can butterfly valves be used on transmission pipelines?
Not on the mainline; yes in station piping. Mainline block valves must pass pigs, swabs and scrapers, and a disc in the bore blocks all of them — a direct conflict with API 6D and API 6DSS requirements for piggable lines. Cooling water, drains and bypass branches inside a station are not piggable sections, and there a butterfly is a sensible choice: short face-to-face, low weight, low cost, with a real advantage over gate valves at large size.
Are AWWA C504 and API 609 interchangeable references?
No; the rating logic differs. AWWA C504 is a water-industry product standard that defines the product by pressure class letter plus A/B velocity class, limited to water at pH 6–12, 0.6–52 °C and 250 psig maximum. API 609 is a purchase specification for process service, where Category B is rated by ASME class and pressure-temperature. A valve built to C504 and installed in 80 °C process water loses its rubber seat, its pressure rating and its velocity allowance at the same time. Going the other way — an API 609 Category B valve in a waterworks — is rarely non-compliant, just three times the price for a rating nobody uses.
What body material should a seawater butterfly valve use?
Decide on four variables: chloride level, sand content, temperature, and whether cathodic protection is applied. Clean seawater, ≤40 °C, with reliable coating and CP: duplex S32205 works, provided velocity stays ≤2 m/s and crevices are avoided. Sand, higher chloride, or above 40 °C: super duplex S32750 (PREN around 40–43). Maintenance-free, 25-year life: titanium Gr.2. Full seawater dominated by erosion: nickel aluminium bronze C95800 for disc and retainer, which performs well against biofouling. The one combination to avoid is a carbon steel body with a high-alloy disc and no isolation — that is the textbook galvanic couple.
Selecting a large butterfly valve is an exercise in checking standard coverage, not in comparing products. First confirm that the standard you cite covers the size. Then confirm that a flange dimension table exists. Only then does the question of triple versus double offset, duplex versus super duplex, become relevant.
DN1500 is a line. DN1800 is a line. NPS 60 is a line. Inside them you can buy a product with a standard behind it. Outside them you buy drawings, calculations and test records — and a technical agreement that someone has to sign.
That is not bad news. The good news is narrower and more useful: write those three boundaries into the technical agreement at the procurement stage, and five of the six failure chains never get the chance to start.
