I. What Is API 600 Standard for Industrial Gate Valves
API 600 is an authoritative specification released by American Petroleum Institute for bolted‑bonnet steel gate valves, equivalent to ISO 10434. It is widely adopted for refineries, petrochemical plants and power‑plant process piping. This standard defines full mandatory requirements covering valve design, shell wall thickness, material specification, stem dimension, backseat construction, inspection and performance testing, acting as the gold‑rule benchmark for process‑plant gate valves, and differs from API 6D for pipeline service valves.
API 600 applies to nominal size NPS 2‑NPS 48 and pressure classes Class 150‑2500LB. The size 24‑inch (NPS24) and pressure Class 150 are well‑included within the official scope of API 600 standard.
II. Key Requirements for 24" 150LB WCB Gate Valve to Comply with API 600
① Dimension & Pressure Class Eligibility
NPS24 (24‑inch), Class 150 fall naturally inside API 600 coverage. Flange ends follow ASME B16.5, face‑to‑face dimension complies with ASME B16.10, inspection & hydro‑test shall be performed according to API 598 as supporting standards for API‑600 gate valves.
② WCB Material Qualification
ASTM A216 WCB carbon cast steel is an approved body material under API 600 specification. It works well for general‑purpose oil, gas, steam and process‑media conditions without cryogenic‑service demands. Its mechanical strength and pressure‑temperature rating satisfy API‑600 material rules for pressure‑containing parts.
③ Mandatory Structural Features of API 600 Gate Valves
Not every off‑the‑shelf 24‑inch 150LB WCB gate valve automatically qualifies as API‑600 compliant. Mandatory structural clauses must be fulfilled:
1. OS&Y (Outside‑Screw‑and‑Yoke) rising‑stem design with bolted bonnet; pressure‑seal bonnet is not permitted for Class 150 rating.
2. Built‑in back‑seat feature is compulsory. Minimum stem diameter shall follow API‑600 calculation tables. Shell wall thickness is thicker than general‑purpose valves under ASME B16.34.
3. Flexible‑wedge gate disc for bi‑directional tight shut‑off. Handwheel operator with visible stem position indicator.
4. Full‑range factory hydrostatic shell test and seat‑leakage test in accordance with API 598 standard.
Important note: Matching size and pressure rating alone is insufficient. Real API‑600 compliance requires full execution of reinforced shell thickness, oversized stem dimension and formal test procedures. Many ordinary ASME‑standard gate valves share identical nominal parameters but skip API‑600 structural upgrades, which cannot be treated as API‑600 certified products.
III. Real‑World Product Reference From J‑VALVES Workshop

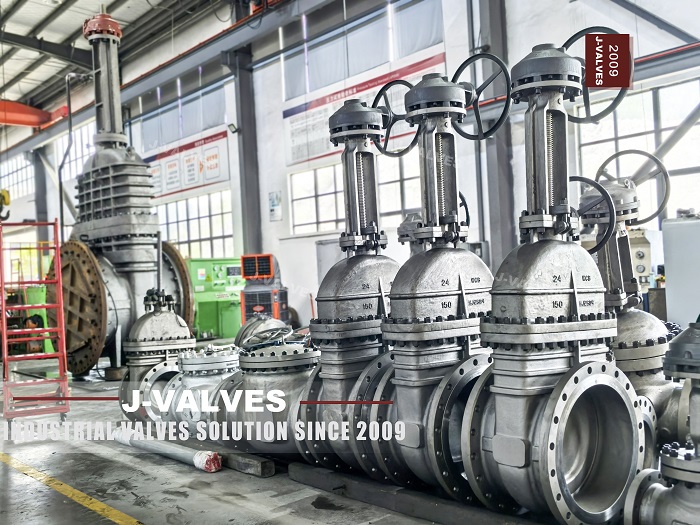

The attached photo shows finished‑goods batch manufactured inside J‑VALVES production facility. These 24"‑150LB WCB OS&Y gate valves are engineered strictly to API 600 requirements: OS&Y exposed rising stem, bolted bonnet, flexible‑wedge closure member, ASME B16.5 RF‑raised‑face flanged ends, WCB cast‑steel body. Each unit can be tested per API 598 upon customer request. They are widely supplied for refinery, chemical and power‑station process‑line projects.
Founded in 2009, J‑VALVES specializes in heavy‑duty cast‑steel industrial valves. We deliver full‑series API‑600 gate valves ranging NPS 2‑48 inch, Class 150‑1500LB. Optional accessories include bevel‑gear operators and electric actuators. Material certificates, test reports and third‑party witness testing services are available for project documentation.
IV. Typical Application of 24‑inch 150LB WCB API‑600 Gate Valves
‑Petroleum refinery process piping
‑Coal‑chemical & petrochemical process loops
‑Thermal‑power‑plant steam & water utility lines
‑Oil‑gas‑processing‑plant utility networks
Suitable media: water, saturated steam, hydrocarbon oil, non‑corrosive process fluids.
V. Sourcing & Selection FAQ
H3: Q1: What is the difference between API‑600 Class150 gate valve and ordinary ASME B16.34 gate valve?
A: API 600 imposes stricter rules for thicker shell wall, larger‑size stem, mandatory back‑seat plus rigorous test protocols. ASME B16.34 only defines basic pressure‑temperature ratings without mandatory structural constraints, resulting in lower safety margin compared to API‑600 valves.
H3: Q2: ASME B16.5 or ASME B16.47 flange for NPS24 Class150?
A: For NPS24 Class150, API‑600 accepts ASME B16.5. ASME B16.47 series flange is required for sizes larger than NPS24 only.
VI. Conclusion
24" 150LB WCB gate valve falls within the nominal scope defined by API 600 standard. Nevertheless, genuine API‑600 compliance can only be achieved when shell thickness, stem dimension, back‑seat, bolted‑bonnet configuration and complete test routines are fully implemented.
When sourcing, do not rely merely on nameplate marking. Always verify drawing documents, material test reports and inspection records to confirm all mandatory API‑600 clauses are satisfied.
CTA: Contact J‑VALVES for datasheets, CAD drawings, quotation and engineering support for your 24"‑150LB WCB API 600 gate‑valve project.
