In industrial pipeline systems, the protection of critical equipment such as pumps, control valves, and flow meters is essential for ensuring operational stability and reducing maintenance costs. One of the most effective and widely used filtration devices is the Y type strainer.
A Y type strainer is designed to remove solid particles such as rust, welding slag, scale, and debris from fluid media before they can damage downstream equipment. In oil & gas, petrochemical, power generation, and water treatment systems, it plays a crucial role in maintaining system cleanliness and extending equipment service life.
Manufacturers like J-VALVES design high-performance Y strainers that meet international standards and deliver reliable filtration performance in demanding industrial environments.

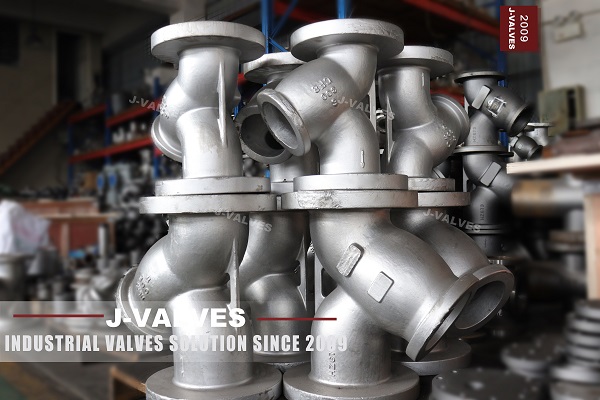

A Y type strainer is a mechanical filtering device installed in pipelines to remove unwanted solid particles from fluids.
Y-shaped body design
Filter screen (mesh or perforated element)
Drain plug or blow-off connection
Flanged, threaded, or welded end connections
The Y-shaped configuration allows fluid to pass smoothly while trapping debris in the filter chamber.
The operating principle is simple but highly effective:
Fluid enters the strainer body
Flow passes through a mesh screen
Solid particles are captured inside the filter element
Clean fluid continues downstream
Accumulated debris is removed through the drain port
J-VALVES engineers Y strainers with optimized flow paths to minimize pressure drop while maximizing filtration efficiency.
Centrifugal pumps are highly sensitive to solid particles. Without filtration:
Impeller erosion occurs
Mechanical seal failure increases
Cavitation risk rises
A Y type strainer blocks debris before it enters the pump, ensuring stable and efficient operation.
Control valves have precision-machined internal components. Solid particles can cause:
Seat leakage
Plugging of flow passages
Erratic control performance
By filtering upstream media, Y strainers ensure smooth valve operation and accurate flow regulation.
By removing abrasive particles, Y strainers:
Reduce wear on mechanical components
Minimize maintenance frequency
Extend pump and valve lifecycle
This leads to significant cost savings in long-term operation.
Clean fluid flow results in:
Stable pressure conditions
Reduced energy consumption
Improved heat exchanger performance
Optimized internal geometry ensures minimal resistance to flow.
Different mesh sizes can be selected depending on application requirements.
Y type strainers can be installed in horizontal or vertical pipelines with minimal space requirements.
The filter element can be removed and cleaned without dismantling the entire pipeline.
Y type strainers are manufactured using different materials depending on operating conditions:
Carbon steel (WCB) for general industrial use
Stainless steel (CF8 / CF8M) for corrosive environments
Alloy steel for high-temperature systems
Nickel aluminum bronze (C95800) for seawater applications
J-VALVES provides customized material solutions to ensure compatibility with different media such as oil, gas, seawater, and chemical fluids.
Y type strainers are widely used in:
Oil and gas pipeline systems
Petrochemical processing plants
Power generation stations
Water supply and treatment systems
HVAC and cooling systems
Marine and offshore platforms
To ensure long-term performance:
Regularly clean the filter screen
Monitor pressure differential across the strainer
Install drain valves for easy flushing
Select appropriate mesh size for fluid type
Ensure correct installation direction
Proper maintenance ensures continuous protection of downstream equipment.
J-VALVES focuses on advanced engineering design and strict quality control:
Precision casting and machining processes
High-strength body construction for pressure resistance
Customizable filtration mesh options
Full hydrostatic pressure testing
Compliance with international industrial standards
These capabilities ensure reliable performance even in harsh industrial environments.
Y type strainers play a vital role in protecting pumps, valves, and other critical pipeline equipment by removing solid contaminants from fluid systems. Their simple structure, high efficiency, and low maintenance requirements make them an essential component in modern industrial pipelines.
With advanced manufacturing technology and strict quality control, J-VALVES delivers high-performance Y type strainers that improve system reliability, reduce downtime, and extend equipment service life across global industries.
