J-VALVES High Performance 300LB WCB Y-Type Strainer for Industrial Pipeline Protection Systems

Introduction

In industrial pipeline systems, protecting critical equipment from solid particle contamination is essential for maintaining stable operation and extending service life. The Y-type strainer (Y-strainer) is a compact and efficient filtration device widely used in oil & gas, petrochemical, power generation, and process industries.

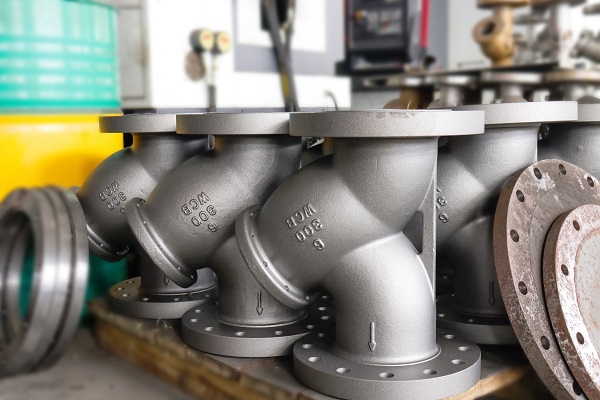

The type shown represents a 300LB pressure class cast steel WCB Y-strainer with flanged connection, engineered for high-pressure service conditions and long-term reliability in demanding industrial environments.

What Is a Y-Type Strainer?

A Y-type strainer is a mechanical pipeline filtration device designed to remove unwanted solid particles from fluid, steam, or gas systems. Its Y-shaped body allows fluid to pass through a stainless steel mesh screen while capturing debris.

It is commonly installed upstream of:

• Pumps

• Control valves

• Flow meters

• Heat exchangers

• Compressor systems

Structural Design of 300LB WCB Y-Strainer

1. Body Material: ASTM A216 WCB

The valve body is manufactured from ASTM A216 WCB carbon steel, offering:

• High mechanical strength

• Excellent pressure resistance

• Good thermal stability

• Suitability for oil, gas, steam, and water systems

This material ensures stable performance under Class 300LB high-pressure conditions.

2. Pressure Rating: ASME Class 300LB

The 300LB rating provides:

• High safety margin for industrial pipelines

• Compatibility with ASME B16.34 design standards

• Reliable operation in medium to high-pressure environments

3. Y-Shape Flow Structure

The Y-shaped geometry is engineered to optimize:

• Low pressure drop across the system

• Smooth flow transition

• Reduced turbulence inside the pipeline

Compared with basket strainers, Y-strainers offer better performance in high-pressure and high-temperature pipelines.

4. Filtration Screen (Mesh Element)

The internal stainless steel filter element is the core component:

• Material: SS304 / SS316

• Mesh size: customizable based on process requirements

• Function: intercepts particles, welding slag, rust, and debris

• Maintenance: removable for cleaning or replacement

5. Flanged Connection Design

The flanged ends provide:

• Secure sealing under high pressure

• Easy installation and removal

• Compatibility with ASME B16.5 flange standards

• Reduced leakage risk compared to threaded connections

Working Principle of Y-Strainer

The operating mechanism is simple and highly efficient:

1. Fluid enters the inlet flange

2. Flow passes through the internal mesh screen

3. Solid particles are trapped inside the screen chamber

4. Clean fluid continues downstream

5. Accumulated debris is periodically removed via drain plug or cover opening

This process ensures continuous protection of downstream equipment.

Key Advantages of 300LB Y-Type Strainer

1. Equipment Protection

Prevents damage to sensitive components such as:

• Pumps

• Valves

• Instrumentation

• Heat exchangers

2. Low Pressure Loss

Optimized flow path reduces energy loss in the pipeline.

3. High Pressure Capability

WCB cast steel structure ensures reliable performance in 300LB systems.

4. Compact Installation

Smaller footprint compared with basket strainer systems.

5. Easy Maintenance

Simple disassembly design allows quick cleaning and inspection.

Typical Applications

The 300LB WCB Y-strainer is widely used in:

• Oil and gas transmission pipelines

• Refinery process systems

• Petrochemical plants

• Power plant steam and condensate systems

• Offshore and marine engineering

• Industrial water treatment systems

Engineering and Manufacturing Advantages – J-VALVES

As a professional industrial valve manufacturer, J-VALVES produces high-performance Y-strainers designed for demanding global applications.

Key manufacturing strengths include:

• Precision casting of carbon steel WCB body

• CNC machining for sealing accuracy

• Strict pressure and leakage testing procedures

• Compliance with API, ASME, and ISO standards

• Custom mesh size and flange configuration options

• Reliable performance in high-pressure pipeline systems

Quality Testing and Inspection

Each Y-strainer undergoes strict quality control:

• Hydrostatic shell pressure test

• Structural integrity inspection

• Mesh filtration verification

• Dimensional and material traceability checks

These processes ensure long-term operational reliability.

Conclusion

The 300LB WCB Y-type strainer is a critical filtration component in industrial piping systems, offering reliable protection for downstream equipment, low pressure drop, and strong structural durability. Its compact design and high-pressure capability make it suitable for a wide range of demanding applications in oil, gas, and process industries.

With advanced manufacturing technology and strict quality control systems, J-VALVES delivers high-performance Y-strainer solutions that meet international engineering standards and ensure long-term operational stability.
