When designing or maintaining a piping system, selecting the correct Y-strainer filter is crucial for ensuring smooth and efficient operations. A Y-strainer filter is typically used to protect pumps, valves, and other equipment by trapping debris and particles from the fluid flow. Given the critical role it plays in maintaining the integrity of a piping system, it’s important to understand how to choose the right Y-strainer filter based on your system’s needs.

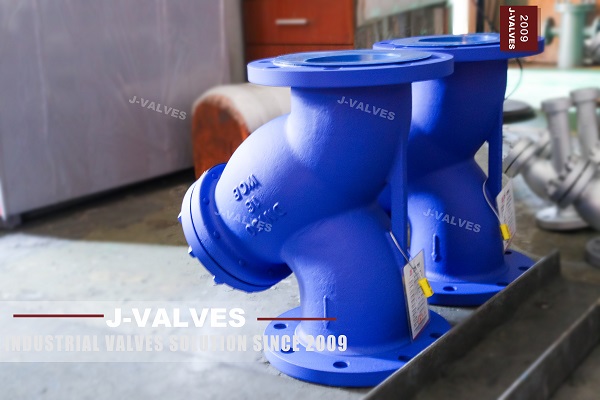

Y-strainer filters are named after their "Y" shape, which allows for easy installation into a pipeline. They are primarily used in industrial applications such as oil and gas, chemical processing, water treatment, and HVAC systems to filter out unwanted debris and contaminants from the fluid. The strainer mesh is designed to catch particulates and prevent them from entering downstream equipment, which could cause damage or inefficiency.
One of the first things to consider when choosing a Y-strainer filter is the size of your piping system and the flow rate of the fluid. The filter’s capacity must match the system's requirements to avoid overloading or underutilizing the filter. It’s essential to consider the maximum flow rate the strainer will handle to ensure it provides adequate filtration without causing unnecessary pressure loss.
Y-strainers come in a variety of materials, including stainless steel, carbon steel, and brass. The material of the filter should be compatible with the fluid being filtered to prevent corrosion, rust, or wear. For example, if the fluid is highly corrosive, stainless steel would be a better option as it offers higher resistance to corrosion compared to carbon steel.
Y-strainer filters are available in different mesh sizes, and selecting the right one depends on the type and size of particles you want to filter out of the fluid. A finer mesh will trap smaller particles, but it can also cause more resistance to flow. Therefore, balancing the mesh size with your system’s flow rate is crucial to avoid creating excessive pressure drop.
Each Y-strainer filter comes with specific pressure and temperature ratings, which should align with the operating conditions of your piping system. For systems that deal with high pressure or temperature fluctuations, choosing a filter designed for these extreme conditions is essential to avoid system failure or inefficiencies.
Proper installation and maintenance are essential for ensuring that a Y-strainer performs optimally throughout its lifespan.
Ensure the strainer is installed in the correct orientation to allow for easy cleaning and maintenance.
If possible, install a blow-off valve to facilitate cleaning without having to remove the strainer from the pipeline.
Make sure the strainer is properly supported to avoid any unnecessary strain on the pipeline.
Regularly inspect the filter for any blockages or wear and tear.
Clean the filter at regular intervals based on the level of contaminants in the fluid. For systems with high debris load, more frequent cleaning may be necessary.
Replace the mesh if it shows signs of damage or clogging that cleaning cannot resolve.
Y-strainer filters are widely used in various industries, and understanding the specific application helps in selecting the right model. Common uses include:
Water Treatment: To filter out sediments and contaminants from raw water before it enters treatment plants.
Oil and Gas: Protecting valves, pumps, and other equipment from dirt and debris in crude oil or natural gas pipelines.
Chemical Processing: Ensuring that chemicals pass through a clean pipeline, preventing contamination of product batches.
HVAC Systems: Keeping foreign particles out of heating and cooling systems for efficiency.
Enhanced Equipment Protection: Proper filtration prevents foreign particles from causing damage to valves, pumps, and other critical equipment in your piping system.
Improved System Efficiency: By preventing blockages and ensuring smooth flow, a Y-strainer filter helps to maintain consistent pressure and temperature, optimizing the performance of the entire system.
Cost Savings: Investing in the right Y-strainer filter can reduce maintenance and repair costs, as it prevents downtime caused by system failures due to debris buildup.
Choosing the right Y-strainer filter for your piping system is essential for ensuring the longevity, efficiency, and smooth operation of the system. By considering factors such as pipe size, flow rate, material compatibility, and the mesh size, you can select the most appropriate filter that will meet the specific needs of your application. Regular maintenance and proper installation practices will also extend the life of the filter, providing long-term benefits in terms of cost savings and system reliability.
When selecting a Y-strainer, always consult with a technical expert or manufacturer to ensure compatibility with your system's unique requirements. Proper filtration is an investment in the overall performance of your piping system and helps to prevent costly breakdowns and operational inefficiencies.
