In industrial systems, ensuring the smooth operation and longevity of equipment is paramount. One of the most effective ways to protect sensitive equipment like pumps, valves, and compressors is through the use of Y-strainer filters. These filters serve as a first line of defense against debris and contaminants in fluid systems, thereby improving system reliability and performance. In this article, we’ll explore how Y-strainer filters contribute to the overall efficiency of industrial systems and why they are an essential component for fluid management.

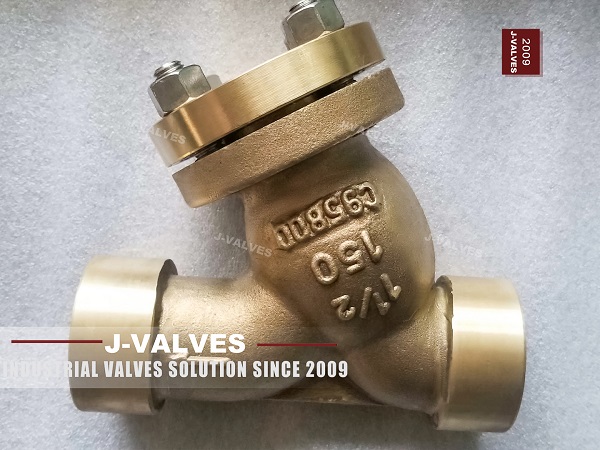

A Y-strainer filter is a type of filtration device commonly used in piping systems to remove unwanted particles from liquids or gases. Its name comes from the Y-shaped design of the body, which allows the filter to be inserted into a pipeline without significantly affecting the system’s overall size. The strainer has a mesh screen that traps solid particles, preventing them from flowing into sensitive components of the system.
Y-strainers are typically used in applications where the fluid flowing through the system may contain debris, sediment, or other contaminants. They are essential in protecting downstream equipment from damage caused by these particles.
The use of Y-strainer filters in industrial systems offers a range of benefits that directly impact system reliability. Below are the key ways in which these filters contribute to the smooth operation of systems:
One of the most immediate benefits of Y-strainer filters is their ability to prevent clogging in critical components of the system, such as pumps, valves, and nozzles. By capturing solid particles before they can enter the system, Y-strainers help maintain consistent flow and prevent the blockage of pipelines.
Pumps: Solid particles in fluid systems can cause pumps to wear out prematurely or become clogged. Y-strainers reduce the risk of this happening by trapping contaminants before they reach the pump.
Valves and Control Systems: Debris can also interfere with the operation of valves, actuators, and control systems, potentially causing system failure or malfunctions. A Y-strainer ensures that these components remain free from obstructions, enhancing their reliability.
By preventing contaminants from reaching critical equipment, Y-strainer filters help reduce the frequency of repairs and maintenance required for expensive equipment. Regular maintenance on pumps, valves, and compressors can be costly, and preventing damage from debris can significantly lower maintenance expenses over the long term.
Longer Equipment Lifespan: Equipment that operates without the strain of dealing with debris will last longer and perform more efficiently, providing a higher return on investment.
Fewer System Downtime Incidents: Fewer breakdowns mean that the system can remain operational, contributing to higher productivity and fewer unexpected shutdowns.
Contaminants in fluid systems, such as rust, sand, or other solid particles, can lead to system failures if they infiltrate delicate machinery or pipelines. A Y-strainer serves as a protective barrier, reducing the likelihood of system breakdowns caused by these contaminants. This is especially important in industries where system reliability is crucial, such as chemical processing, oil and gas, and power generation.
Critical Systems: For high-stakes systems, such as steam turbines, heat exchangers, and hydraulic systems, Y-strainers prevent the ingress of harmful particles, safeguarding the entire operation.
Emergency Shutdown Prevention: Contaminants in fluid systems can trigger emergency shutdowns to avoid equipment damage. Y-strainers help reduce the chances of these costly shutdowns.
Y-strainer filters help maintain consistent flow rates throughout the system. By ensuring that the system is free of blockages and debris, they allow pumps and other equipment to operate at peak performance levels. This efficiency boost leads to lower energy consumption and more stable system operation.
Optimized Fluid Flow: By preventing blockages and turbulence, Y-strainers contribute to a smooth and uninterrupted flow of fluid. This results in more efficient system performance.
Reduced Pressure Drop: A clean system with fewer blockages experiences less pressure drop, improving energy efficiency and reducing operating costs.
Beyond reliability, Y-strainer filters play a significant role in enhancing the performance of industrial systems. Their contributions to performance can be seen in several key areas:
Y-strainer filters are designed with fine mesh screens that can effectively filter out debris of varying sizes. The level of filtration is determined by the mesh size, which can range from coarse screens that capture larger particles to fine meshes that trap smaller contaminants. This versatility ensures that Y-strainers can be adapted to a wide range of applications, from industrial water systems to chemical processing.
Mesh Size Selection: Y-strainers can be customized with different mesh sizes depending on the type of fluid being filtered and the level of contamination present. Fine mesh screens are ideal for systems with high-quality fluids, while coarser screens are used in more rugged applications.
Continuous Filtration: The strainer operates continuously, removing particles without interrupting the flow of the system. This makes it ideal for continuous processes where uptime is critical.
Y-strainers are highly adaptable and can be used in a wide range of fluid types, including liquids, gases, slurries, and steam. Their ability to handle different flow conditions makes them a flexible solution for diverse applications.
Corrosive and High-Temperature Fluids: Y-strainers can be made from corrosion-resistant materials such as stainless steel, bronze, and duplex alloys, which allow them to perform well even in harsh environments involving corrosive fluids or high temperatures.
Viscous Fluids: For systems handling viscous fluids like oils or lubricants, Y-strainers can be equipped with larger mesh openings to handle the fluid's thickness while still preventing clogging.
Y-strainers are designed for easy maintenance and simple operation. The filter screen can be easily removed, cleaned, or replaced, ensuring that the system remains free from debris with minimal downtime. This ease of maintenance is essential for keeping systems running efficiently without excessive labor costs.
Cleaning and Replacement: Y-strainers can be cleaned or serviced while the system is still running, reducing the need for costly shutdowns. Depending on the application, the filter mesh may need to be cleaned periodically or replaced after a certain amount of time.
Self-Cleaning Features: Some advanced Y-strainers are equipped with automatic cleaning mechanisms, such as backflushing, to reduce maintenance requirements and ensure uninterrupted operation.
Unlike other filtration methods, Y-strainers are designed to create minimal pressure loss during fluid flow. This is achieved by their simple, streamlined design, which allows for easy passage of fluids without significant resistance.
Optimized Flow Path: The design of the Y-strainer reduces turbulence and fluid resistance, helping to maintain pressure throughout the system. This is particularly important in systems that require high flow rates or low-pressure conditions.
Y-strainer filters are used in a wide range of industries to protect equipment, improve system efficiency, and ensure smooth operation. Common applications include:
Water Treatment: Removing suspended solids from water in municipal and industrial treatment plants.
Oil and Gas: Protecting pumps, compressors, and pipelines from debris in crude oil, natural gas, and refined product lines.
Chemical Processing: Ensuring the purity of chemicals and preventing contamination in reactors and pipelines.
HVAC Systems: Filtering debris from cooling and heating systems to protect pumps and valves.
Power Generation: Preventing damage to turbines and other critical components in power plants.
Y-strainer filters play a crucial role in enhancing both the reliability and performance of industrial systems. By preventing clogging, reducing maintenance costs, and improving fluid flow efficiency, Y-strainers ensure the smooth and uninterrupted operation of critical equipment. They also offer high filtration efficiency, versatility in fluid applications, and easy maintenance, making them an indispensable part of modern industrial fluid management.
