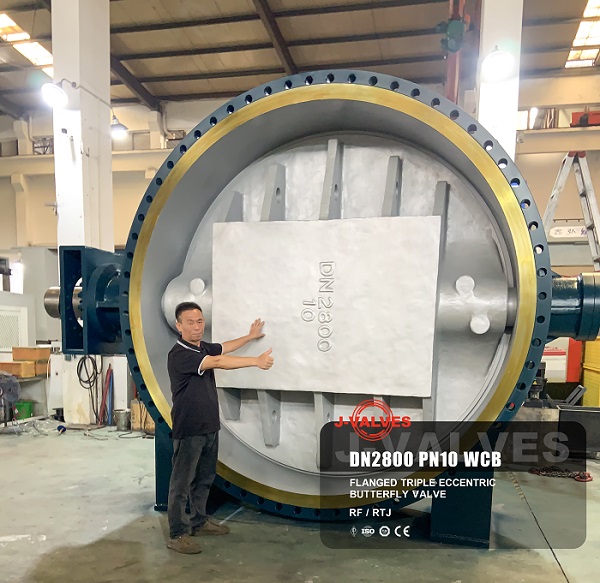

Triple offset butterfly valve made of ASTM A216 WCB cast carbon steel is the premium shut-off valve for industrial pipeline, solving leakage and high-temperature failure issues of conventional butterfly valves. J-VALVES is a professional manufacturer of triple eccentric butterfly valves, capable of custom production from DN50 to DN3200 flange type, our flagship DN2800 PN10 WCB triple eccentric butterfly valve has been successfully delivered to large hydropower & thermal power projects nationwide.
Three unique offsets eliminate friction during valve opening & closing:
1st Offset: Stem offset from disc center to separate disc from seat instantly;
2nd Offset: Stem axis offset from valve body bore center to reduce operation torque;
3rd Offset: Tapered seat angular offset creates wedge tight metal-to-metal sealing for bubble-tight bi-directional shutoff.
WCB carbon steel body withstand working temp from -29℃ to 425℃, seat overlay with Stellite alloy for superior wear resistance, service life extended over 3 times vs double eccentric butterfly valve.
Cost-effective: 40%~60% lower cost than stainless steel butterfly valves for non-corrosive medium;
High mechanical strength: Perfect for large bore DN2800 PN10 pipeline, resistant to pipeline deformation and water hammer pressure;
Flexible actuator option: Compatible with manual, electric, pneumatic and hydraulic actuator for ESD emergency shutdown system in petrochemical & power plant.
Water Conservancy & Municipal: Large raw water transfer project, flood control dike pipeline (DN1800~DN2800 main selection);
Thermal Power Plant: Circulating cooling water, boiler flue gas pipeline, PN10 WCB triple eccentric butterfly widely used;
Oil & Petrochemical: Refinery thermal oil, medium-temperature crude oil shutoff, replace heavy gate valve to save installation space;
Metallurgy & Pulp & Paper: High temp flue gas and process water pipeline cutoff.
Pressure Rating: PN6, PN10, PN16, PN25, Class150~300;
Flange End: RF Raised Face / RTJ Ring Joint Face;
Size Range: DN50~DN3200, full custom service with ISO & CE certification, third-party inspection available J-VALVES.
