Welding Technology And Quality Control for Welded Gate Valves

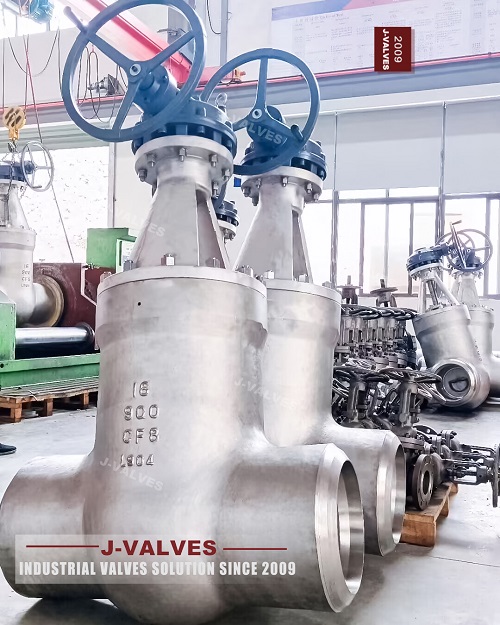

Welding Technology for Gate Valves

Welding Process Selection

Choosing the appropriate welding process is essential for achieving high-quality welds in gate valves. The most commonly used welding processes include:

• Shielded Metal Arc Welding (SMAW): Also known as stick welding, SMAW is a versatile process suitable for thick materials and complex geometries. It uses a consumable electrode coated with flux to protect the weld from contamination.

• Gas Metal Arc Welding (GMAW): Commonly referred to as MIG welding, GMAW uses a continuous wire feed and an inert gas shield to protect the weld. It offers high deposition rates and is suitable for both thick and thin materials.

• Gas Tungsten Arc Welding (GTAW): Also known as TIG welding, GTAW uses a non-consumable tungsten electrode and an inert gas shield. It provides precise control over the weld and is ideal for critical applications requiring high-quality welds.

• Submerged Arc Welding (SAW): SAW is an automated process that uses a granular flux to cover the weld pool, protecting it from atmospheric contamination. It is suitable for thick sections and provides high deposition rates.

Welding Procedure and Techniques

1. Pre-Weld Preparation

Proper preparation of the materials and components is crucial for achieving high-quality welds. This includes:

• Cleaning: The surfaces to be welded must be thoroughly cleaned to remove any contaminants such as oil, grease, rust, or scale. Cleaning can be done using mechanical methods (e.g., grinding, brushing) or chemical methods (e.g., solvent cleaning).

• Fit-Up and Alignment: The components must be accurately aligned and clamped to ensure proper fit-up. Gaps or misalignments can lead to incomplete fusion or excessive stress concentrations in the weld.

• Preheating: Preheating the base material can help reduce thermal shock and prevent cracking, especially for thick sections or materials with high thermal conductivity. The preheat temperature is typically determined based on the material type and thickness.

2. Welding Techniques

The welding techniques used can significantly impact the quality and performance of the welds. Some common techniques include:

• Multi-Pass Welding: For thick sections, multi-pass welding is often used to ensure adequate penetration and fusion. Each pass is carefully controlled to avoid overheating and distortion.

• Welding Sequence: The sequence in which the welds are made can affect the residual stresses and distortion in the component. Proper welding sequence planning helps minimize these effects and ensures uniform heat distribution.

• Back Purging: For critical applications, back purging with inert gas is used to protect the root pass from atmospheric contamination, ensuring a high-quality weld.

Quality Control Measures

1. Weld Inspection and Testing

Weld inspection and testing are essential to ensure the quality and integrity of the welds. Common inspection and testing methods include:

• Visual Inspection: Visual inspection is the first step in weld quality control. It involves examining the weld surface for defects such as porosity, undercutting, and incomplete fusion. Visual inspection can be performed using magnifying glasses or borescopes for hard-to-reach areas.

• Non-Destructive Testing (NDT): NDT methods such as radiographic testing (RT), ultrasonic testing (UT), and magnetic particle testing (MT) are used to detect internal and surface defects without damaging the weld. These methods provide detailed information about the weld's integrity and are essential for critical applications.

• Destructive Testing: Destructive testing involves cutting and sectioning the weld to examine its cross-section for defects. This method provides detailed information about the weld's metallurgical properties and is often used for qualification purposes.

2. Welder Qualification and Training

The skill and experience of the welder play a crucial role in ensuring high-quality welds. Welders must be properly trained and qualified to perform the specific welding procedures required for gate valves. This includes:

• Welder Certification: Welders must undergo certification programs that assess their ability to produce welds meeting specified quality standards. Certification is typically based on welding procedure specifications (WPS) and performance qualification records (PQR).

• Continuous Training: Ongoing training and skill development are essential to keep welders updated with the latest welding technologies and techniques. Regular training sessions and workshops help maintain a high level of welding proficiency.

3. Welding Procedure Specifications (WPS)

A well-defined welding procedure specification (WPS) is essential for ensuring consistent and high-quality welds. The WPS should include detailed information on:

• Base Material and Filler Metal: The type and grade of the base material and filler metal must be specified, along with their metallurgical properties and compatibility.

• Welding Process and Parameters: The welding process, current, voltage, travel speed, shielding gas, and other parameters must be clearly defined.

• Pre-Weld and Post-Weld Treatments: Any pre-weld treatments such as preheating and post-weld treatments such as stress relief annealing must be detailed in the WPS.

• Welding Techniques and Sequence: The specific welding techniques and sequence to be used must be outlined to ensure proper execution of the welds.
