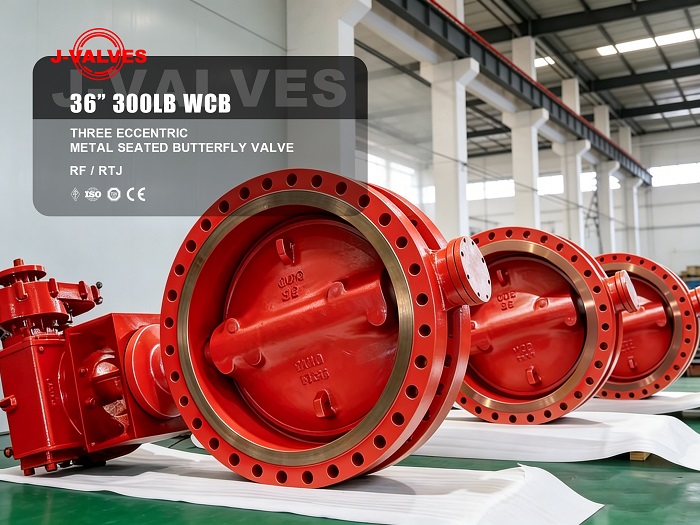

In industries like oil & gas, chemical processing, and power generation, valve reliability is critical to safety and operational efficiency. J-VALVES’ 36" 300LB WCB triple eccentric metal seated butterfly valve is engineered to meet the toughest industrial challenges, combining innovative design with rigorous manufacturing standards.
Traditional butterfly valves suffer from seal wear due to direct contact between the disc and seat during operation. J-VALVES solves this with three key offsets:
First Offset: The stem is offset from the seat centerline, preventing friction during opening/closing;
Second Offset: The stem is offset from the pipe centerline, allowing the disc to disengage quickly from the seat;
Third Offset: The seat sealing surface is conical, creating a wedge effect for tight, zero-leakage shutoff when closed.
This design ensures the sealing faces never rub against each other, drastically extending service life while reducing operating torque, making it compatible with manual, electric, and pneumatic actuators.
The valve body is cast from ASTM A216 WCB carbon steel, offering excellent mechanical strength and weldability for Class 300 (PN50) pressure ratings. The sealing system uses a metal-graphite composite structure:
The seat is hard-faced with Stellite alloy for wear resistance;
Multi-layer stainless steel-graphite rings provide resilient sealing, achieving soft-seal level zero leakage (Class VI) even at temperatures up to 425℃.
This combination makes the valve ideal for abrasive media, high-temperature steam, and corrosive fluids where soft-seated valves fail prematurely.
End-to-End Quality Control: From raw material testing to CNC machining and assembly, every process follows ISO and API standards, with 100% non-destructive testing on critical components;
Customization Capabilities: Available with RF/RTJ flanges, bi-directional/unidirectional sealing, and various actuation options. Large-bore (36") valves can be optimized for specific flow rates and torque requirements;
Rigorous Testing: All valves undergo hydrostatic, high-pressure gas seal, and temperature cycling tests to ensure performance in extreme conditions;
Fast Delivery & Support: In-house foundry and machining facilities reduce lead times by 30%, with 2-year warranty and lifetime technical support;
Proven Industry Experience: Deployed in refineries, chemical plants, and power stations worldwide, with extensive application data in high-temperature, high-pressure environments.
A large petrochemical plant faced recurring issues with conventional gate valves in its high-temperature steam lines, including jamming and internal leakage, causing costly downtime. J-VALVES provided a tailored solution with 36" 300LB WCB triple eccentric metal seated butterfly valves and pneumatic actuators:
Post-retrofit, the valves achieved zero leakage, with opening/closing times reduced to 15 seconds, significantly improving line efficiency;
No seal wear was observed after 18 months of continuous operation, maintaining Class VI shutoff performance;
Maintenance costs dropped by 60%, saving the customer over $100,000 annually in repair and downtime expenses.
J-VALVES WCB triple eccentric metal seated butterfly valves are suitable for:
Oil & Gas: High-temperature steam, catalytic cracking units;
Chemical: Coal-to-chemical plants, abrasive gas pipelines;
Power: Boiler feedwater, flue gas desulfurization systems;
Metallurgy: Blast furnace hot air, dust-laden gas transport.
Contact J-VALVES’ technical team today for free application analysis and customized solutions.
