I. Why 4 Inch Class300 WCB Gate Valves Are Widely Adopted for Global Industrial Pipelines
DN100 (4 inch) Class 300 pressure rating represents one of the most common specifications for energy and chemical EPC projects worldwide. ASTM A216 WCB carbon steel gate valves are preferred isolation valves for refineries, natural gas processing plants, thermal power stations and water treatment facilities thanks to reliable medium-temperature pressure resistance, balanced cost and mature international standards.
When fully opened, gate valves provide straight full bore passage with minimum pressure drop, better suited for main pipeline isolation than globe valves. For medium including steam, crude oil and fuel gas, Class300 rating covers most medium-pressure process pipeline conditions. However, inconsistent manufacturing standards among manufacturers greatly influence long-term operational safety, hence many international EPC contractors establish long-term cooperation with J-VALVES as trusted gate valve supplier.
II. Two Representative Overseas Successful Cases of J-VALVES WCB Gate Valves
Case 1: Bulk Supply of 4" 300LB WCB Gate Valves for Oil & Gas Processing Plant in Saudi Arabia
Project Overview: Expansion project of a Saudi oil & gas separation plant required 286 sets of 4-inch Class300 RF flanged rising stem gate valves. The medium is sulfur-containing natural gas and produced crude oil. The site features high ambient temperature and large temperature difference. The owner demanded reliable tight shutoff and complete certified documentation for third-party inspection.

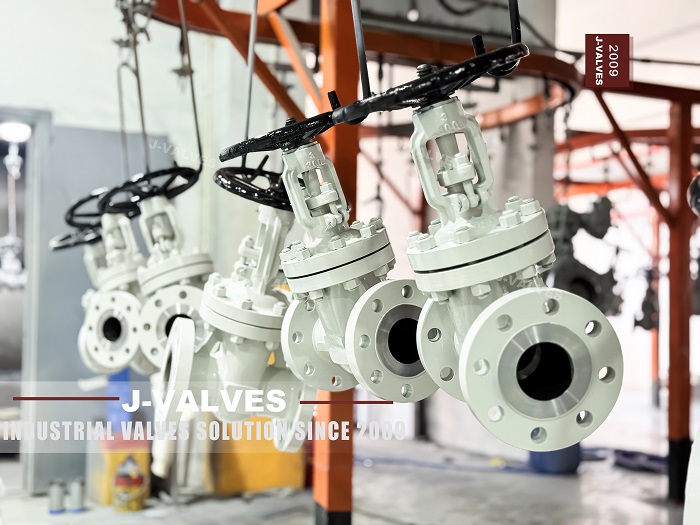

The contractor tested samples from multiple Chinese manufacturers before cooperation, yet encountered unsatisfactory seat tightness and non-standard certification documents. In 2023, the EPC contractor contacted J-VALVES. We provided samples for witness pressure testing. All gate valves adopt Stellite hardfaced sealing surfaces with complete MTR material test reports and API598 test records. Mass production and coating were finished on our workshop overhead painting line, packed in fumigated wooden cases and shipped in batches. Valves have operated continuously without leakage since commissioning, and repeated orders were placed for phase-II expansion.
Case2: Steam Pipeline Gate Valve Project for Coal-fired Power Plant in Indonesia
Project Overview: An Indonesian thermal power plant required 4" 300LB WCB gate valves for boiler auxiliary steam pipelines. Medium is saturated steam at 280°C. Strict requirements are raised on high temperature resistance and stem packing tightness. The specification complies with API600 and allows random on-site hydrostatic testing supervised by owner inspectors.
J-VALVES optimized packing combination for high-temperature steam service, adopting flexible graphite packing to prevent stem external leakage. Heat treatment for WCB castings eliminates internal stress and avoids body deformation under cyclic high temperature. All 320 units were delivered on schedule and successfully passed random on-site tests. J-VALVES has been listed as approved long-term valve vendor after stable operation.
III. Gate Valve Selection Guidelines for Different Industries & J-VALVES Technical Support
1. Oil & Gas Industry
For medium containing trace H2S and crude oil, hardfaced sealing is recommended; NACE anti-sulfur specification is optional. Outdoor installation requires enhanced anti-corrosion coating against sunshine and sand erosion.
2. Thermal Power Plant Steam System
High-temperature steam service requires heat-resistant stem packing and bolts. Rising stem design enables visual position indication, API600 rising stem gate valve is highly recommended.
3. Coal Chemical & Water Treatment Pipelines
For wastewater and circulating water, internal surface finishing can be customized to mitigate erosion and extend service lifespan.
IV. Full-Spectrum Support for International EPC Clients
1. Pre-sales engineering support: drawing verification, working condition selection and specification optimization, English TDS data sheet provided.
2. Document service: original material test reports, hydro test certificates, factory acceptance documents, supporting third-party inspection.
3. Flexible production capacity: in-house casting, machining and coating lines accepting large EPC bulk orders as well as small trial orders.
4. Customized logistics solution: FCL/LCL sea shipment arrangement, standard export packaging to reduce transit damage.
5. After-sales service: long-term spare parts supply and operational technical guidance with fast response.
V. Conclusion
