Quality Inspection And Control in The Manufacturing of Wafer Type Lug Butterfly Valve

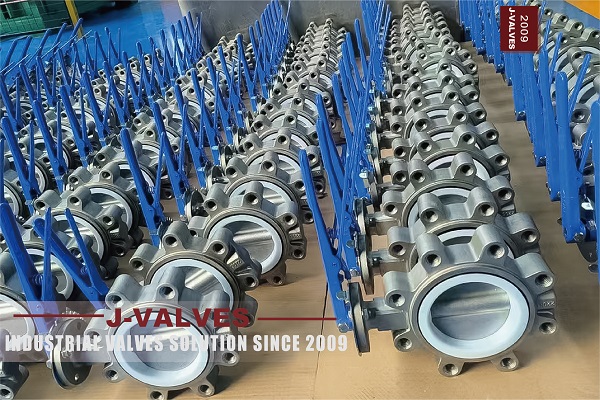

1. Understanding Wafer Type Lug Butterfly Valve

Wafer type lug butterfly valve are a type of quarter-turn valve that uses a circular disc to control the flow of fluids. The valve body features lugs (or ears) that allow it to be bolted directly to the pipeline flanges, eliminating the need for additional supports. This design provides a secure and stable connection, making Wafer Type Lug Butterfly Valve ideal for applications involving water, air, gases, and other non-corrosive fluids.

2. Importance of Quality Control

Quality control is essential in the manufacturing of Wafer Type Lug Butterfly Valve to ensure that they meet the required performance standards, safety regulations, and customer expectations. Poor quality valves can lead to leaks, premature failure, and potential safety hazards, resulting in costly repairs and downtime. By implementing robust quality control measures, manufacturers can minimize defects, enhance product reliability, and build a reputation for excellence.

3. Key Quality Control Measures

Material Inspection

The quality of the materials used in the valve construction directly impacts its performance and durability. Key materials include:

• Valve Body and Disc: Typically made from cast iron, ductile iron, carbon steel, or stainless steel. Material selection depends on the application requirements, such as pressure, temperature, and fluid compatibility.

• Seating Material: Commonly made from elastomers (e.g., EPDM, NBR) or PTFE for soft-seated valves, or metal for metal-seated valves. The seating material must provide a tight seal and withstand the operating conditions.

Inspection Process:

• Material Certification: Ensure that all materials come with proper certification and documentation, verifying their composition and compliance with industry standards.

• Visual Inspection: Check for any visible defects, such as cracks, porosity, or inclusions in the castings.

• Mechanical Testing: Perform tensile and hardness tests to verify the mechanical properties of the materials.

• Chemical Analysis: Conduct chemical composition analysis to ensure the materials meet the specified grades and standards.

Machining and Assembly

Precision machining and assembly are critical for the performance and reliability of Wafer Type Lug Butterfly Valve.Machining:

• Tolerance Control: Ensure that all machined parts meet the specified dimensional tolerances. This includes the valve body, disc, stem, and other components.

• Surface Finish: Verify that machined surfaces have the required surface finish to prevent leakage and ensure smooth operation.

Assembly:

• Component Fit-Up: Ensure that all components fit together correctly, with proper alignment and clearance. This includes the disc, stem, and seating elements.

• Torque Control: Use calibrated tools to apply the correct torque during assembly, ensuring that bolts and fasteners are tightened to the specified values.

• Seal Integrity: Perform leak tests on assembled valves to verify that the seating and gasket seals are intact and provide a tight seal.

Non-Destructive Testing (NDT)

Non-destructive testing is essential for detecting hidden defects that may compromise the valve's integrity.

• Ultrasonic Testing (UT): Used to detect internal defects such as porosity, inclusions, and cracks in the valve body and disc.

• Radiographic Testing (RT): Provides detailed images of the internal structure, helping to identify defects that may not be visible on the surface.

• Magnetic Particle Testing (MT): Suitable for detecting surface and near-surface defects in ferromagnetic materials.

• Dye Penetrant Testing (PT): Used to detect surface-breaking defects in non-ferromagnetic materials.

Functional Testing

Functional testing ensures that the valve operates correctly and meets the specified performance requirements.

• Pressure Testing: Perform hydrostatic or pneumatic pressure tests to verify that the valve can withstand the maximum operating pressure without leakage.

• Cycle Testing: Test the valve's ability to open and close through multiple cycles to ensure smooth operation and durability.

• Leakage Testing: Use helium leak detection or other appropriate methods to verify that the valve provides a tight seal under operating conditions.

• Torque Testing: Measure the operating torque to ensure that the valve can be easily operated and that the torque values are within the specified limits.

Final Inspection

The final inspection ensures that the valve meets all quality standards before it is shipped to the customer.

• Visual Inspection: Check the valve for any visible defects, such as scratches, dents, or damage that may have occurred during manufacturing or handling.

• Dimensional Verification: Verify that all dimensions, including flange bolt holes and overall dimensions, meet the specified requirements.

• Documentation: Ensure that all quality control documentation, including test reports and certifications, is complete and accurate.

• Packaging and Labeling: Verify that the valve is properly packaged to prevent damage during shipping and that it is labeled with the required information, such as model number, material, and pressure rating.

4. Implementing Quality Control Systems

To ensure consistent quality, manufacturers should implement comprehensive quality control systems that cover all stages of the manufacturing process.

• ISO 9001 Certification: Adopting ISO 9001 standards helps establish a robust quality management system that ensures consistent product quality and continuous improvement.

• Six Sigma Methodology: Implementing Six Sigma principles can help identify and eliminate defects, reducing the defect rate to a minimum.

• Statistical Process Control (SPC): Use SPC tools to monitor and control the manufacturing process, ensuring that it operates within specified limits and identifying any deviations early.

• Supplier Quality Management: Work closely with suppliers to ensure that they meet the required quality standards and provide materials and components that are free from defects.

5. Continuous Improvement

Quality control is an ongoing process that requires continuous monitoring and improvement. Manufacturers should regularly review their quality control procedures and implement changes to address any issues or areas for improvement.

• Training and Development: Provide ongoing training for employees to ensure they are knowledgeable about the latest quality control techniques and standards.

• Feedback Mechanisms: Establish feedback mechanisms to gather input from customers, field engineers, and other stakeholders to identify potential quality issues and areas for improvement.

• Root Cause Analysis: Conduct thorough root cause analysis for any defects or failures to identify the underlying causes and implement corrective actions to prevent recurrence.

• Benchmarking: Compare your quality control processes with those of industry leaders to identify best practices and areas for improvement.
