The Key Benefits of Wafer Check Valves in Compact Systems

In industrial applications, effective fluid control is essential for maintaining efficiency, safety, and performance in various systems. Wafer check valves play a vital role in this process, particularly in compact piping systems. These valves are designed to prevent backflow, ensuring that fluids flow in one direction while maintaining system integrity. They are especially suitable for tight spaces where traditional valves may not be practical.

What is a Wafer Check Valve?

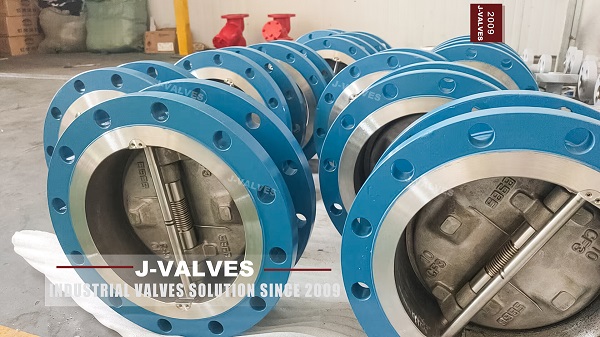

A wafer check valve is a type of check valve designed to allow fluid to flow in only one direction. It features a thin, compact design and is typically installed between two flanges within a pipeline. The valve is usually equipped with a spring-loaded disc or flapper that opens when the flow is in the desired direction and closes when there is reverse flow, preventing backflow and ensuring the integrity of the system.

Wafer check valves are known for their low-profile design, which makes them ideal for use in space-constrained applications. These valves are typically lighter and more compact than traditional swing check valves or lift check valves, making them a go-to choice in industries that require efficient backflow prevention in tight spaces.

Key Benefits of Wafer Check Valves in Compact Systems

Here are the key benefits of wafer check valves that make them a preferred choice for compact systems in industrial and commercial applications:

1. Space-Saving Design

One of the most significant advantages of wafer check valves is their compact design. These valves are much thinner than other types of check valves, such as swing or lift check valves, making them perfect for systems with limited space.

• Minimal Installation Space: Wafer check valves are designed to fit between two flanges, so they don’t require additional space beyond the size of the flanges themselves. This design is especially useful in compact systems where space is at a premium, such as HVAC systems, pumping stations, chemical processing plants, and water treatment facilities.

• Lightweight Construction: The reduced weight of wafer check valves contributes to easier handling and installation, particularly in applications where heavy or bulky equipment is a concern.

2. Cost-Effective Solution

Due to their streamlined design and simple construction, wafer check valves are often more cost-effective than other check valve types. This makes them an attractive option for applications with budget constraints or those requiring a more economical solution for backflow prevention.

• Lower Manufacturing Costs: Wafer check valves require fewer materials to manufacture due to their compact size, making them less expensive than larger valves like swing or globe valves.

• Affordable Maintenance: Wafer check valves are simple in design, which translates to lower maintenance costs. Their fewer moving parts and minimalistic design reduce the likelihood of mechanical failure, extending the valve's lifespan and reducing downtime.

3. Reliable Backflow Prevention

Wafer check valves are specifically designed to prevent backflow in piping systems, which can cause contamination, damage to pumps, and system inefficiencies. They provide reliable one-way flow control, ensuring that fluids flow only in the desired direction, while the valve automatically closes when reverse flow is detected.

• Quick Response to Backflow: Wafer check valves have a fast-acting mechanism that prevents backflow from occurring, reducing the risk of damage to sensitive equipment downstream.

• Improved System Efficiency: By preventing backflow, wafer check valves help maintain consistent pressure and flow throughout the system, leading to improved overall system performance.

4. Reduced Pressure Drop

In any fluid control system, pressure drop can lead to inefficiencies and energy loss. Wafer check valves are designed to minimize pressure loss while still providing effective backflow prevention. Their slim design allows for smoother fluid flow, which results in a reduced pressure drop across the valve compared to bulkier valve types.

• Optimized Flow Paths: The design of the wafer check valve allows for a more streamlined flow, with minimal turbulence or resistance, reducing energy costs and enhancing system efficiency.

• Balanced Pressure: By maintaining a minimal pressure drop, wafer check valves help avoid system strain and ensure that the pressure remains within optimal ranges.

5. Versatility in Fluid Applications

Wafer check valves are highly versatile and can be used in a wide range of industrial applications that involve various types of fluids. They are suitable for both liquid and gas flow applications, including corrosive and high-temperature systems.

• Corrosion-Resistant Materials: Wafer check valves can be manufactured from materials such as stainless steel, brass, cast iron, and duplex alloys, offering resistance to corrosion, abrasion, and other harsh environmental conditions. This makes them ideal for chemical processing, oil and gas pipelines, and marine applications.

• Wide Temperature Range: Wafer check valves can be engineered to withstand extreme temperatures, making them suitable for systems that handle high-temperature liquids, steam, or gases.

6. Low Maintenance Requirements

The simplicity of the wafer check valve design leads to fewer mechanical parts and, therefore, lower maintenance needs. There are no complex mechanisms, such as those found in swing check valves or globe valves, which reduces the risk of component failure over time.

• Fewer Moving Parts: Wafer check valves typically have only one moving part, the disc or flap, which opens and closes based on flow direction. This minimizes the chances of wear and tear.

• Easy to Service: The lack of complex components makes wafer check valves easier to maintain and service. In the event of a malfunction or wear, the valve can typically be repaired or replaced quickly.

7. Sealing Efficiency

Wafer check valves are designed to provide excellent sealing performance. When the flow direction reverses, the valve closes tightly to prevent backflow, ensuring the integrity of the system.

• Leak-Free Operation: The valve's seating mechanism and tight fit ensure that no fluid leaks through when the valve is closed, preventing system contamination or damage.

• Reliable Isolation: Wafer check valves provide positive isolation, effectively preventing reverse flow without the need for external intervention.

Applications of Wafer Check Valves

Wafer check valves are used in a variety of applications across different industries. Here are some common applications where wafer check valves are ideal:

1. HVAC Systems: Wafer check valves are used to prevent backflow in air conditioning and heating systems, protecting pumps and other equipment.

2. Water and Wastewater Treatment: Wafer check valves are used in water and sewage treatment plants to prevent backflow from contaminating clean water supplies or disrupting treatment processes.

3. Chemical Processing: These valves help maintain the flow of chemicals in industrial processes while preventing backflow that could lead to contamination.

4. Oil and Gas Pipelines: In oil and gas systems, wafer check valves help prevent the reverse flow of oil, gas, or slurry, protecting pumps and other critical components.

5. Marine Applications: Wafer check valves are used in ships and marine vessels to prevent backflow from sewage or ballast water systems, ensuring that water does not contaminate clean or treated water supplies.

Conclusion

Wafer check valves are an ideal solution for compact systems that require effective backflow prevention with minimal space and cost considerations. Their space-saving design, reliable performance, cost-effectiveness, and low maintenance make them a preferred choice in industries such as water treatment, chemical processing, HVAC, and oil and gas.
