High-pressure pipeline systems for oil & gas transmission, petrochemical refining, power generation and hydrogen transportation demand robust, zero-leakage valve equipment. Among all pipeline control valves, trunnion mounted ball valves stand out for heavy-duty high-pressure working conditions. However, many engineering buyers struggle to pick fully certified, long-service-life trunnion ball valves matching their project parameters. This guide breaks down core selection standards, key international certifications, high-pressure application scenarios, production strengths of J-VALVES and real global export cases for your reference.
Trunnion mounted ball valves differ greatly from floating ball valves under high pressure. You need to evaluate these 6 critical points before procurement:
Pressure & Class Rating Matching
For high-pressure pipelines, confirm the valve pressure class (Class 150~Class 2500) or PN rating to match pipeline operating pressure. Trunnion ball valves adopt double trunnion support structure to offset medium thrust, avoiding ball deformation under high pressure.
Material Compatibility with Medium
Select body, ball and seat materials according to transported medium: carbon steel WCB for natural gas, alloy steel F304/F316 for corrosive chemical fluid, duplex stainless steel for offshore seawater pipelines.
Sealing Grade Standard Compliance
Zero external leakage is mandatory for hazardous medium pipelines. Verify the valve meets international fugitive emission standards to prevent safety risks.
Fire Safety Performance
Oil & gas pipelines carry flammable media; valves must retain sealing performance after accidental fire to avoid explosion accidents.
Actuator Configuration Compatibility
Large bore high-pressure trunnion ball valves require matched gear operators, pneumatic or electric actuators for smooth switch operation under heavy torque.
Third-Party Full Certification
Only internationally recognized certifications can prove valve quality meets global engineering standards, which is non-negotiable for cross-border export projects.
Global industrial pipeline projects universally recognize three core valve standards, all fully implemented by J-VALVES:
Issued by American Petroleum Institute, API 6D is the top mandatory standard for oil & gas pipeline valves worldwide. It covers design, material test, pressure test, endurance cycle test and traceability requirements for trunnion ball valves. Valves with API 6D certification pass strict shell pressure test, seat leakage test and long-cycle service test, fully fit long-distance crude oil, natural gas trunk pipelines.
API 607 fire safety certification tests whether trunnion mounted ball valves can maintain effective sealing under 750~1000℃ fire environment for 30 minutes. Certified valves will not burst or leak massively during fire, widely required for refineries, LNG stations and fuel storage projects.
ISO 15848 is the global unified standard for valve fugitive emission control. It classifies leakage grades from CO1 to CO4; high-pressure toxic/hydrogen pipelines usually require CO4 top sealing grade. J-VALVES trunnion ball valves strictly follow ISO 15848 to minimize volatile organic compound leakage, meeting EU and US environmental emission limits.
Trunnion mounted ball valves are the preferred solution for all heavy high-pressure industrial pipelines:
Oil & Gas Long-Distance Transmission Pipelines
Class 600~Class 2500 large bore trunnion ball valves control trunk pipeline medium cut-off, withstand constant high line pressure day and night.
Petrochemical & Refining Plants
High-pressure reaction furnaces, hydrogenation units, flammable chemical medium pipelines require API 6D + API 607 dual certified valves.
Offshore Oil & Marine Platform Projects
Anti-corrosion alloy trunnion ball valves resist seawater corrosion, adapt marine high-pressure, high-humidity harsh environment.
New Energy Hydrogen & LNG Storage & Transportation
Ultra-low temperature, high-pressure LNG and green hydrogen pipelines demand ISO 15848 CO4 zero-fugitive-emission valves to avoid energy loss and safety hazards.
Thermal & Nuclear Power Station Circulation Pipelines
High-pressure water, steam loop pipelines adopt heavy-duty trunnion ball valves for stable long-term flow control.
Founded in 2009, J-VALVES specializes in manufacturing high-pressure certified trunnion mounted ball valves, with complete one-stop industrial valve production capacity:
Full Standard Certification System
All trunnion ball valve series obtain official API 6D, API 607, ISO 15848, CE and ABS marine certifications, fully compliant with US, EU, Middle East and Southeast Asia project tender standards.
Integrated Independent Production Workshop

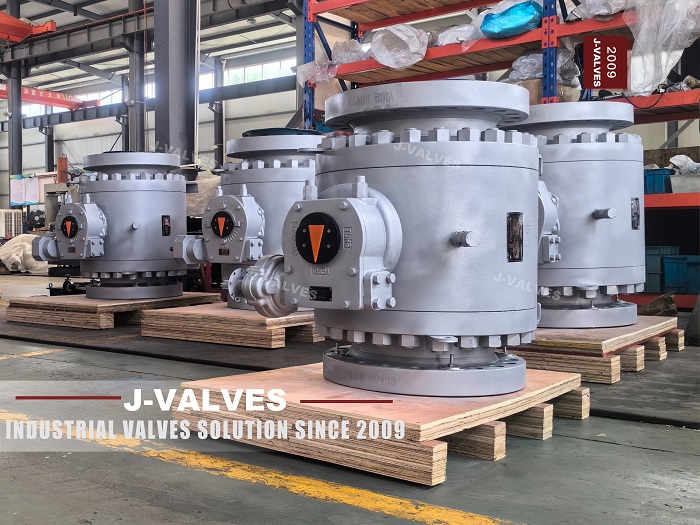

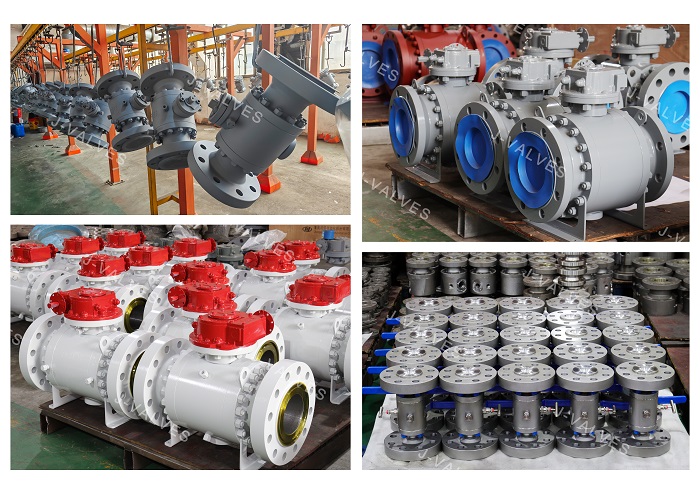

Self-owned large forging, machining, assembly and pressure testing workshops (as shown in factory workshop photos). Every valve undergoes 100% shell hydrostatic test, air seat leakage test and fugitive emission test before delivery. Large-size high-pressure trunnion ball valves adopt integrated thick-wall casting process to eliminate shell deformation risk under extreme pressure.
Customized Engineering Solution Support
Engineer team customizes pressure class, bore size, material, actuator type and anti-corrosion coating based on client pipeline working conditions; provide complete valve technical datasheets, inspection reports and tender documents for EPC contractors.
Strict Quality Traceability
Each valve body marks unique heat number and serial number, raw material certificates, machining records and test reports archived permanently, convenient for global project after-sales traceability.
Stable Bulk Export Capacity
Large batch standardized production line supports bulk order delivery, avoids delayed construction period risks for overseas EPC projects.
Since 2009, J-VALVES has exported certified high-pressure trunnion ball valves to over 40 countries and regions worldwide, covering mainstream high-pressure pipeline industries:
Middle East Onshore Oil & Gas Trunk Pipeline Project
Supplied Class 1500 large bore API 6D trunnion ball valves for Saudi Arabia natural gas transmission trunk line, passed local petroleum authority third-party inspection, stable operation for over 7 years.
Southeast Asia Refinery Revamping Project
Provided API 607 fire-safe ISO 15848 CO4 grade trunnion ball valves for Vietnam petrochemical refinery hydrogenation workshop, solved high-pressure flammable medium leakage risks.
North America LNG Storage Terminal Project
Customized low-temperature high-pressure duplex steel trunnion ball valves, meet US EPA fugitive emission standards, widely used in Canadian LNG storage tank piping systems.
Southeast Asia Offshore Platform Pipeline Project
Anti-salt spray alloy trunnion ball valves exported to Indonesia offshore oil platforms, resist marine harsh corrosive environment, passed ABS marine certification inspection.
A: Floating ball valves rely on medium pressure to push ball against seat; under Class 600 and above high pressure, ball deformation causes serious leakage. Trunnion ball valves fix ball with upper & lower trunnion shafts to bear medium thrust, suitable for Class 600~Class 2500 heavy high-pressure pipelines with reliable sealing.
A: For international oil, gas and long-distance trunk pipeline projects, API 6D is a basic tender requirement. General industrial medium low-pressure pipelines can use standard ball valves without API 6D, but hazardous high-pressure medium pipelines must adopt API 6D certified valves.
A: Green hydrogen and high-purity hydrogen transportation pipelines need ISO 15848 CO4 highest fugitive emission grade to prevent tiny hydrogen molecule leakage and explosion risks.
A: Yes. We support SGS, BV, TUV third-party witness inspection, provide full set certification documents, material test certificates, pressure test reports and factory acceptance test (FAT) records for overseas customs clearance and project acceptance.
A: Standard certified trunnion ball valves have 15~25 working days production cycle; customized special material/low-temperature models take 30~45 working days. We arrange production priority for urgent EPC project orders.
