In industrial fluid control systems, the choice of valves has a crucial impact on the stability and cost-effectiveness of the system. TRUNNION BALL VALVES (meeting the MSS SP-72 standard) and traditional GATE VALVES are two common types of valves, and there are significant differences between them in terms of maintenance cycle, service life, and overall cost optimization. This article will reveal the performance of these two types of valves in practical applications through detailed comparative analysis, helping enterprises make wiser decisions when choosing valves.
I. BASIC CHARACTERISTICS OF TRUNNION BALL VALVES AND GATE VALVES
(1) Trunnion Ball Valves

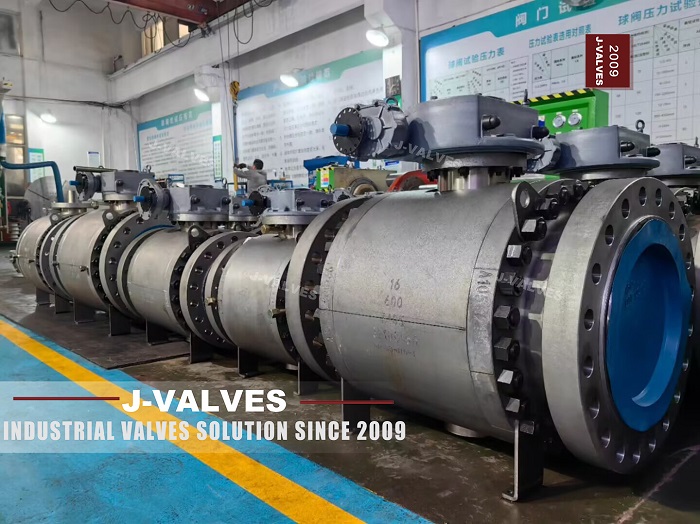

A TRUNNION BALL VALVE is a high-performance ball valve. Its design complies with the MSS SP-72 standard and is widely used in high-pressure and high-temperature environments in industries such as petroleum, natural gas, and chemical engineering. Its main features include:
• Excellent Sealing Performance: It adopts a special sealing structure and high-quality sealing materials, which can ensure zero leakage under high-pressure and high-temperature conditions.
• Flexible Operation: The opening and closing operation of the ball valve is simple and fast. Usually, it only needs to be rotated by 90 degrees to complete the opening and closing actions. The operating torque is small, making it suitable for frequent operations.
• Strong Corrosion Resistance: The valve body usually adopts corrosion-resistant materials such as stainless steel, which can adapt to various complex chemical medium environments.
(2) Gate Valves
A GATE VALVE is a traditional shut-off valve, mainly used in fully open or fully closed working conditions, and is widely used in water supply and drainage, fire protection, heating, ventilation and air conditioning and other fields. Its main features include:
• Good Shut-off Performance: The gate of the gate valve can fit closely with the valve seat to achieve a good shut-off effect, which is suitable for occasions where the fluid needs to be completely cut off.
• Simple Structure: The structure of the gate valve is relatively simple, easy to install and maintain, and is suitable for large-diameter pipeline systems.
• Wide Application Range: The materials of gate valves are diverse, including cast iron, stainless steel, etc., which can meet the needs of different working conditions.
II. COMPARISON OF MAINTENANCE CYCLE AND SERVICE LIFE
(1) Maintenance Cycle
• Trunnion Ball Valves: Due to their excellent sealing performance and small operating torque, the maintenance cycle of trunnion ball valves is relatively long. Under normal use conditions, the maintenance cycle of TRUNNION BALL VALVES can reach 3 - 5 years or even longer. The main maintenance contents include regularly checking the wear of sealing parts, lubricating rotating parts, and checking the sealing performance of the valve.
• Gate Valves: The maintenance cycle of GATE VALVES is relatively short, especially in the case of frequent opening and closing or harsh working conditions. Generally speaking, the maintenance cycle of gate valves is 1 - 2 years. The maintenance contents mainly include cleaning the debris in the valve cavity, replacing worn sealing parts, and checking the sealing performance of the gate.
(2) Service Life
• Trunnion Ball Valves: The service life of TRUNNION BALL VALVES is relatively long, usually reaching 15 - 20 years. With strong corrosion resistance and excellent sealing performance, they can maintain a good working state in high-pressure, high-temperature and corrosive environments. In some special working conditions, such as in oil pipelines and chemical equipment, the service life of trunnion ball valves can even exceed 20 years.
• Gate Valves: The service life of GATE VALVES is generally 5 - 10 years. Its service life is significantly affected by materials, working conditions and maintenance situations. For example, the service life of stainless steel gate valves is relatively long, which can reach more than 10 years; while cast iron gate valves may need to be overhauled or replaced every 5 years in harsh environments.
III. COST OPTIMIZATION ANALYSIS
(1) Initial Investment Cost
• Trunnion Ball Valves: Due to their high performance and complex manufacturing process, the initial investment cost of trunnion ball valves is relatively high. However, their long service life and low maintenance cost can save a large amount of operating costs for enterprises in the long-term use.
• Gate Valves: The initial investment cost of gate valves is relatively low, especially for cast iron gate valves. However, their shorter service life and higher maintenance frequency will increase the long-term operating costs of enterprises.
(2) Operating Costs
• Trunnion Ball Valves: The operating costs of trunnion ball valves are mainly concentrated on maintenance and replacement of sealing parts. Due to their long maintenance cycle, the maintenance costs are relatively low. In the long-term use, the low maintenance costs can significantly reduce the operating costs of enterprises.
• Gate Valves: The operating costs of gate valves are relatively high, especially in the case of frequent opening and closing or harsh working conditions. Their high maintenance frequency requires regular replacement of sealing parts and cleaning of debris in the valve cavity, which increases the maintenance costs and downtime of enterprises.
IV. TABULAR COMPARISON
Characteristics | Trunnion Ball Valves (MSS SP-72) | Gate Valves |
Maintenance Cycle | 1 - 2 years | 0.5 - 1 years |
Service Life | 15 - 20 years | 5 - 10 years |
Initial Investment Cost | High | Low (cast iron) / Medium (stainless steel) |
Operating Costs | Low (less maintenance) | High (frequent maintenance) |
Applicable Working Conditions | High-pressure, high-temperature, corrosive environments | Water supply and drainage, heating, ventilation and air conditioning, fire protection, etc. |
Sealing Performance | Zero leakage | Good (requiring regular maintenance) |
Operational Convenience | Quick opening and closing (90-degree rotation) | Fully open / fully closed, simple operation |
V. CONCLUSION
Through the comparative analysis of the maintenance cycle, service life and cost optimization of trunnion ball valves (MSS SP-72) and gate valves, we can draw the following conclusions:
• TRUNNION BALL VALVES are more suitable for high-pressure, high-temperature and corrosive environments. Their long service life and low maintenance cost can save a large amount of operating costs for enterprises in the long-term use. Although their initial investment cost is relatively high, their high performance and reliability can significantly improve the stability and safety of the system.
• GATE VALVES are more suitable for common working conditions such as water supply and drainage, heating, ventilation and air conditioning, and fire protection. Their initial investment cost is low and their structure is simple, which is easy to install and maintain. However, their shorter service life and higher maintenance frequency may increase the long-term operating costs of enterprises.
When choosing valves, enterprises should comprehensively consider the performance, service life and maintenance cost of valves according to specific working condition requirements and cost budgets, so as to achieve the best cost optimization and operation efficiency of the system.
