Why Do Standard Butterfly Valves Leak? How Triple Offset Flanged Butterfly Valves Improve Sealing in High-Temperature, High-Pressure Service

Butterfly valves are widely used in industrial piping systems because they are compact, lightweight, and easy to operate. However, in high-temperature and high-pressure service, many users discover that standard butterfly valves are more likely to suffer from seat wear, poor shutoff, and leakage.

This is where the triple offset flanged butterfly valve stands out. With a smarter sealing design and lower friction during operation, it is built for more demanding applications.

1. Why do standard butterfly valves leak under severe service conditions?

A conventional butterfly valve usually relies on direct contact between the disc and the seat. That design works well in basic applications, but it becomes less reliable when the process gets tougher.

Common leakage causes include:

Seat friction during operation
The disc rubs against the seat every time the valve opens or closes, which leads to wear over time.

Thermal expansion and material aging
High temperatures can change material dimensions and reduce sealing accuracy.

Pressure stress on the sealing surface
High differential pressure places more load on the seat, making tight shutoff harder to maintain.

Frequent cycling
Repeated opening and closing accelerates wear and shortens seal life.

For steam lines, refinery units, power plants, steel mills, and other harsh environments, a standard butterfly valve may not provide long-term sealing stability.

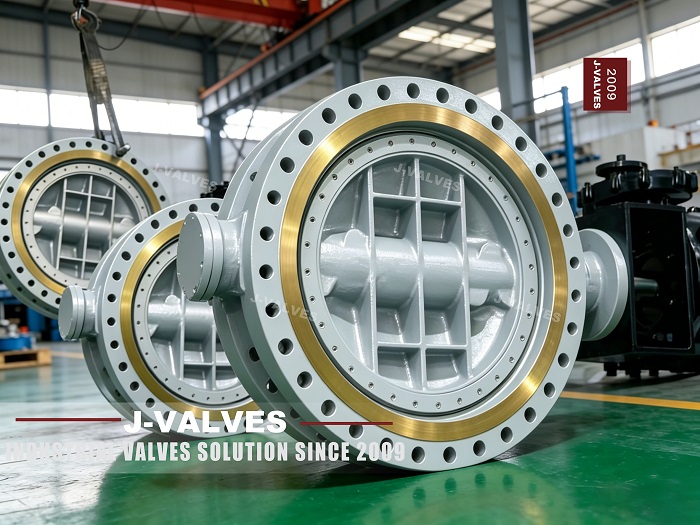

2. What makes a triple offset flanged butterfly valve different?

The key advantage is in the triple offset design. The valve stem, disc centerline, and seat sealing surface are offset in a way that reduces direct sliding contact during operation.

Instead of forcing the disc to scrape against the seat, the triple offset design allows the sealing surfaces to engage gradually and release smoothly.

Main benefits:

Lower friction
Less rubbing means less wear on the sealing surfaces.

Better sealing consistency
The disc seats more predictably, which improves shutoff performance.

Suitable for metal seating
Triple offset designs are often paired with metal-to-metal sealing, which performs better in high-temperature service.

Lower operating torque
Reduced friction helps make actuation easier and more stable, especially in larger sizes.

3. How does it help achieve low leakage?

In industrial valves, “zero leakage” depends on the valve design, test method, and actual service conditions. A more accurate way to describe triple offset flanged butterfly valves is that they can achieve very low leakage levels when properly selected, manufactured, and installed.

Why sealing performance is improved:

Precision-machined sealing surfaces
Accurate machining improves seat-to-disc fit.

Pressure-assisted sealing
Process pressure can help reinforce the seal in some conditions.

Better resistance to thermal cycling
The offset geometry helps reduce stress caused by heating and cooling.

Longer seal life under cycling service
The lower-friction action makes them more durable in repeated operation.

4. Where are triple offset flanged butterfly valves used?

These valves are commonly used in:

• Steam pipelines

• Oil and gas processing

• Petrochemical plants

• Power generation systems

• Metallurgical plants

• Hot oil systems

• Large-diameter industrial pipelines

They are especially valuable where sealing reliability, temperature resistance, and long service life matter most.

5. What should you check before choosing one?

To get the best performance, valve selection should match the actual operating conditions.

Key points to review:

Process media
Is it steam, corrosive fluid, gas, or slurry?

Temperature and pressure
Make sure the valve design is rated for the full service range.

Body and trim material
Carbon steel, stainless steel, and alloy steel each suit different environments.

Flange standard
Connection compatibility is essential for proper installation.

Actuation requirements
Manual, pneumatic, or electric operation should be matched to torque and control needs.

6. Why more projects choose triple offset flanged butterfly valves

They do more than just close the line. They help improve long-term sealing reliability, reduce maintenance frequency, and support safer plant operation.

For projects that demand durability, efficiency, and dependable shutoff, the triple offset flanged butterfly valve is often a smarter choice than a standard butterfly valve.

7. Conclusion

Standard butterfly valves can work well in low-pressure, ambient-temperature service, but they often struggle in harsh operating conditions.
Triple offset flanged butterfly valves offer a more advanced sealing design, lower friction, and better durability, making them a strong solution for high-temperature and high-pressure applications.

If your project needs a valve with better sealing performance and longer service life, this design deserves serious consideration
