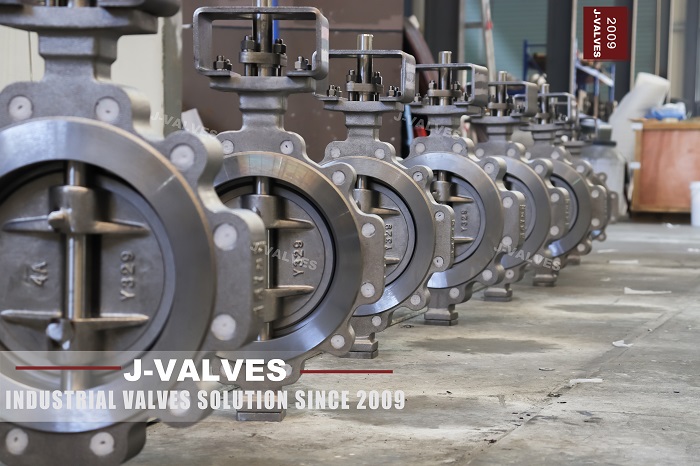

A triple offset butterfly valve, often written TOV or triple eccentric butterfly valve, exists to answer one question: how do you keep the light weight, short face to face and quarter turn operation of a butterfly valve, but seal metal to metal like a gate valve? The answer is geometry. The first offset moves the shaft behind the disc, so the disc clears the seat cleanly instead of dragging across it. The second offset moves the shaft away from the centreline of the bore, so the disc travels on an elliptical path that swings free of the seat for most of the 90 degree stroke. The third offset tilts the sealing face into a cone, so the disc touches the seat only during the last few degrees of travel and closes with a cam action rather than a wedging action. Because the two sealing surfaces never rub while the valve strokes, a metal seated triple offset valve survives hundreds of thousands of cycles that would grind a conventional soft seated butterfly valve shut.
Offset count is fixed at the design stage and cannot be retrofitted, so it is worth knowing which family a datasheet belongs to before comparing prices. The table below summarises the three common designs.
| Design | Offsets | Seat style | Typical temperature | Typical duty |
|---|---|---|---|---|
| Resilient seated | None | EPDM or NBR bonded seat | -20 C to +150 C | Water, HVAC, utilities |
| Double offset | Two | Soft or PTFE hybrid seat | -29 C to +300 C | Steam, process, cooling water |
| Triple offset | Three | Laminated graphite or metal cone seat | -196 C to +650 C | Severe, high temperature, high pressure isolation |
The sealing member in most triple offset designs is a laminated ring built from alternating layers of flexible graphite and stainless foil, clamped in a retainer and machined to a conical face. The cone seat machined into the body is the mirror of that face, and the two meet around the full circumference when the disc reaches the closed position. The lamination is what makes the design work in real plants: the graphite layers act like a spring stack, so the ring absorbs thermal growth of the disc and shaft, tolerates small deflection under line pressure and still maintains uniform contact pressure at every point of the circumference. Where temperatures or pressures exceed what graphite laminate carries comfortably, solid metal seats faced with Stellite or Inconel are specified, and both variants seal in both directions because the cone geometry closes against pressure arriving from either side of the disc.
A triple offset valve has a very distinctive torque signature: low torque through the middle of the stroke and a sharp peak in the last two or three degrees of closing, when the cam action loads the seat. Opening follows the same curve in reverse, so the highest demand is the seat break torque at the start of the stroke. Actuators, whether electric, scotch yoke or rack and pinion pneumatic, must therefore be selected against the seat break figure stated on the datasheet, not against an average quarter turn value. One consequence for operation is that the final degrees of travel belong to the seat, not to the process: throttling in the last 10 to 15 degrees drives high velocity flow across the seating faces and will damage them. Where modulating duty is genuinely required, the control band should be kept inside roughly 15 to 75 degrees of rotation, or a disc profile prepared for control duty should be specified at the order stage.
The laminated graphite seal is inherently fire safe: there is no soft seat to burn away and leave an open bore, so triple offset valves routinely pass API 607 or ISO 10497 fire testing with their standard trim in place. For cryogenic service the same laminate works at liquid nitrogen temperatures provided the valve is fitted with an extended bonnet that keeps the packing away from the cold region, and tested in accordance with BS 6364 or ISO 28921. Vacuum duty is another natural fit, since the metal to metal cone holds tight where elastomers outgas and harden. For sour lines the pressure retaining parts and trim are supplied to NACE MR0175 / ISO 15156, and low fugitive emission packing arrangements follow the same approach used across the J-VALVES gate, globe and check ranges certified to ISO 15848-1.
Ten items settle the correct valve: genuine triple offset geometry, seat material, body material and pressure class, design temperature range, bidirectional rating and differential pressure, flow direction marking, seat break and closing torque figures, actuator type and sizing basis, fire safe or cryogenic certificates required, and the acceptance test standard. Ask the manufacturer for the torque curve, not a single torque number, because the actuator and the control philosophy both hang off that curve. J-VALVES supplies triple offset butterfly valves from NPS 2 to NPS 48 (DN50 to DN1200) in ASME Class 150 to 900, with bodies in WCB, CF8, CF8M, duplex and alloy steels, laminated graphite and solid metal seats from -196 C to 650 C, pneumatic, electric and hydraulic actuation, and quotes returned within three working hours.
What exactly is the third offset on a triple offset butterfly valve?
The third offset is the angular displacement of the conical sealing face from the shaft centreline. It turns the closure into a cam action, so the disc approaches the seat almost parallel and touches it only in the last few degrees of travel. The result is metal to metal sealing with essentially zero rubbing between the disc and the seat.
Can a triple offset butterfly valve be used for throttling?
It is designed primarily for isolation. The final 10 to 15 degrees of closing belong to seat engagement, and throttling in that band erodes the seating faces. Where modulating duty is required, keep the control band inside roughly 15 to 75 degrees of rotation or order a disc profile prepared for control service, and confirm the flow characteristic with the manufacturer.
Is a triple offset butterfly valve bidirectional?
Yes, in the standard design the conical seal closes against pressure from either side of the disc, so the valve can be mounted without a flow arrow and still achieve bubble tight shut off. Verify the rated differential pressure in both directions on the datasheet, because bidirectional sealing and bidirectional pressure retention are stated separately.
Why is the seal ring laminated graphite?
The alternating graphite and stainless layers behave like a spring stack: they absorb thermal growth, compensate for disc deflection under line load, and keep contact pressure uniform around the cone. The laminate also carries extreme temperatures, from cryogenic service with an extended bonnet up to 650 C, and remains fire safe because there is no elastomer in the flow path.
