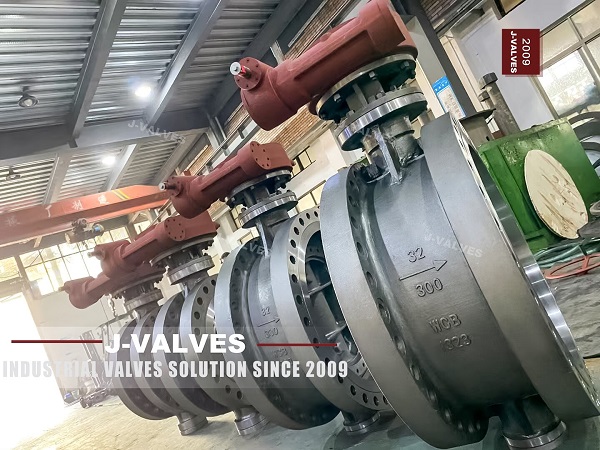

Understanding Triple-Eccentric Butterfly Valves
Triple-eccentric butterfly valves are designed with three distinct eccentricities that enhance their sealing performance and reduce wear. These eccentricities are:
1. Axial Eccentricity: The valve stem is offset from the centerline of the valve body, allowing the disc to lift off the seat quickly upon opening, reducing friction and wear.
2. Radial Eccentricity: The valve stem is also offset radially, further reducing contact between the disc and seat during operation.
3. Angular Eccentricity: The sealing surface of the disc is angled relative to the seat, creating a line contact that enhances sealing under pressure.
Key Components of Triple-Eccentric Butterfly Valves
• Valve Body: The main structure that houses all internal components.
• Disc: The closure element that controls the flow of fluid.
• Stem: The component that connects the disc to the external actuator or handle.
• Seal: The component that provides a tight seal against the disc.
• Bonnet: The cover that protects the internal components and provides access for maintenance.
• Actuator: The mechanism that provides the torque to operate the valve.
Design Features Enhancing Sealing
• Line Contact Sealing: The angular eccentricity creates a line contact between the disc and the seat, which enhances sealing performance under pressure. This design allows the valve to achieve zero leakage, even in high-pressure applications.
• Pressure-Assisted Sealing: The sealing performance of triple-eccentric butterfly valves improves with increasing pressure. The fluid pressure helps to press the disc against the seat, ensuring a tight seal.
• Metal-to-Metal Seals: These valves often use metal-to-metal seals, which are highly durable and suitable for high-temperature and high-pressure applications. This type of seal provides excellent resistance to wear and corrosion.
Applications Requiring High Sealing Performance
• High-Pressure Applications: Triple-eccentric butterfly valves are ideal for applications involving high pressures, such as in oil and gas pipelines and petrochemical plants.
• High-Temperature Applications: These valves can handle high temperatures, making them suitable for use in power generation and chemical processing industries.
• Corrosive Media: The use of corrosion-resistant materials and metal-to-metal seals makes these valves suitable for handling corrosive media, such as acids and alkalis.
• Streamlined Flow Path: The design of the flow path in triple-eccentric butterfly valves is optimized to reduce fluid resistance. The streamlined shape of the disc and the minimal contact area with the seat help to minimize turbulence and pressure drop.
• Reduced Pressure Drop: The optimized flow path design ensures that the pressure drop across the valve is minimized, leading to improved system efficiency and reduced energy consumption.
Applications Requiring Low Fluid Resistance
• High-Flow Applications: Triple-eccentric butterfly valves are suitable for applications requiring high flow rates, such as in water treatment plants and large industrial pipelines.
• Energy-Efficient Systems: The low fluid resistance of these valves makes them ideal for use in systems where energy efficiency is critical, such as in HVAC systems and power plants.
