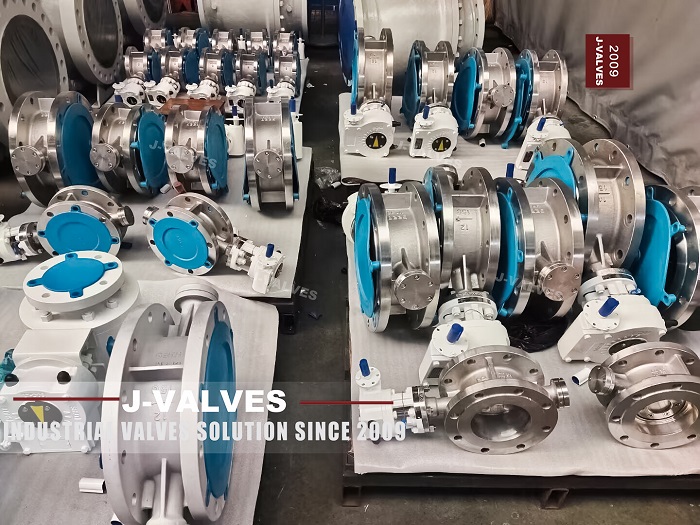

Understanding Triple-Eccentric Butterfly Valves
Triple-eccentric butterfly valves are designed with three distinct eccentricities that enhance their performance:
1. First Eccentricity: The valve stem is offset from the center of the valve body, allowing the disc to lift away from the seat quickly upon opening.
2. Second Eccentricity: The valve stem is also offset from the center of the disc, reducing friction and wear.
3. Third Eccentricity: The sealing surface is offset from the valve stem, ensuring a tight seal even under high-pressure conditions.
• Zero Leakage: Triple-eccentric butterfly valves can achieve zero leakage, making them suitable for applications requiring high sealing performance.
• Compact Design: These valves have a compact design, making them easier to install and maintain in space-constrained areas.
• Low Operating Torque: The design reduces the operating torque required, making them suitable for manual or automated operation.
• Versatility: Suitable for a wide range of applications, including water treatment, HVAC systems, and industrial processes.
• High Sealing Performance: Achieves zero leakage, ensuring reliable operation in critical applications.
• Compact Size: Reduces installation space and weight, making it ideal for large-diameter pipelines.
• Low Maintenance: The design minimizes wear and tear, reducing maintenance requirements.
• Cost-Effective: Generally less expensive than gate valves, especially in large-diameter applications.
Gate valves are linear motion valves that use a gate or wedge to control fluid flow. The gate moves vertically to open or close the valve, providing a tight seal when closed.
• Full Port Design: Allows for unrestricted flow, minimizing pressure drop.
• Reliable Sealing: Provides excellent sealing performance, ensuring minimal leakage.
• Durability: Designed for long-term use in demanding applications.
• Low Flow Resistance: Full port design ensures minimal pressure drop, making it suitable for systems requiring high flow rates.
• High Pressure and Temperature Resistance: Suitable for high-pressure and high-temperature applications.
• Wide Range of Sizes: Available in a wide range of sizes, making them suitable for large-diameter pipelines.
• Robust Construction: Durable and reliable, ensuring long-term performance.
Comparative Analysis: Triple-Eccentric Butterfly Valves vs. Gate Valves
Sealing Performance
| Feature | Triple-Eccentric Butterfly Valves | Gate Valves |
| Sealing Capability | Achieves zero leakage, ideal for critical applications | Excellent sealing performance, suitable for high-pressure applications |
| Leakage Rate | Very low leakage rate, suitable for zero leakage requirements | Minimal leakage, suitable for high-pressure and high-temperature applications |
Flow Characteristics
| Feature | Triple-Eccentric Butterfly Valves | Gate Valves |
| Flow Resistance | Higher flow resistance, suitable for systems with moderate pressure drop tolerance | Low flow resistance, ideal for systems requiring high flow rates |
| Pressure Drop | Higher pressure drop compared to gate valves | Minimal pressure drop, ensuring efficient fluid flow |
Size and Weight
| Feature | Triple-Eccentric Butterfly Valves | Gate Valves |
| Size | Compact design, suitable for space-constrained areas | Larger size, requiring more installation space |
| Weight | Lighter weight, easier to handle and install | Heavier weight, more challenging to install |
