Triple eccentric hard-sealed butterfly valves are core control equipment in high-pressure and high-temperature industrial pipelines. Whether the selection is reasonable directly affects pipeline operation safety and operation and maintenance costs. Many users tend to ignore working condition adaptability and process details during selection, resulting in short valve service life and high leakage risk. This article will sort out the core selection points of triple eccentric butterfly valves, and introduce J-VALVES selection service and quality assurance system.
Pressure Rating & Diameter Matching
First, select valves with corresponding pressure ratings according to the pipeline design pressure. Common pressure ratings include Class 150, Class 300, Class 600, etc. High-pressure long-distance pipelines usually choose Class 300 and above. The diameter should match the pipeline diameter. For large-diameter pipelines (such as above 24 inches), manufacturers with large-diameter production capacity should be prioritized to ensure valve body casting and machining accuracy.
Material Adaptation to Working Medium
The valve body material should be selected according to medium characteristics, temperature and corrosion degree: WCC carbon steel can be selected for ordinary water, oil and natural gas conditions; stainless steel 304, 316 or duplex steel should be selected for corrosive media; high-temperature alloy steel should be selected for high-temperature conditions, matched with hard alloy sealing surfaces.
Sealing Surface Process & Performance
The core advantage of triple eccentric butterfly valves lies in hard sealing. It is necessary to pay attention to the machining accuracy and overlay welding material of the sealing surface. High-quality sealing surfaces need to be precision ground with uniform overlay layer thickness and qualified hardness to ensure no wear and zero leakage during long-term opening and closing.
Connection Form & Driving Mode
Flange connection is the most commonly used connection form for triple eccentric butterfly valves. For high-pressure conditions, RTJ ring joint flanges are preferred, and for medium and low pressure, RF raised face flanges can be selected. The driving mode should be selected according to the operation scenario: worm gear drive for manual conditions, pneumatic or electric actuators for automated pipelines.
As a professional triple eccentric butterfly valve manufacturer, J-VALVES provides customers with full-process selection support:
Customized Solutions for Working Conditions

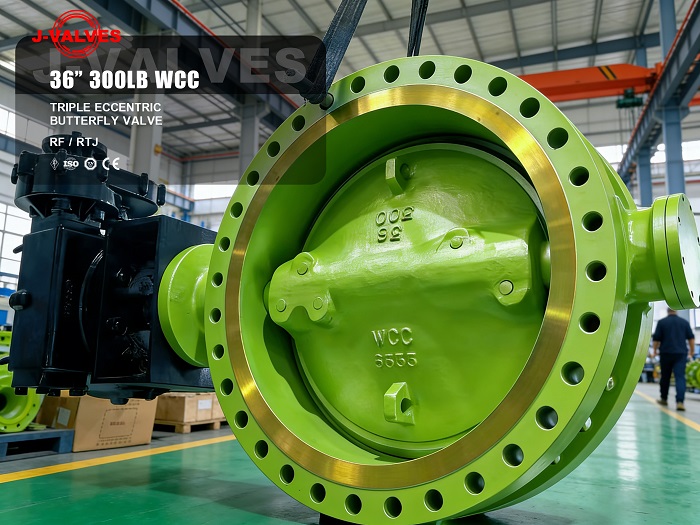

After customers provide working condition parameters (medium, pressure, temperature, pipeline standards), the technical team will match materials, sealing structures and connection forms in a targeted manner, and output suitable valve solutions to avoid selection deviations. For example, for 36-inch large-diameter, Class 300 pressure natural gas pipelines, a triple eccentric butterfly valve solution with WCC valve body + RTJ flange + hard alloy sealing surface can be customized.
Full Specification Coverage Capability
Product diameters range from 2" to 36" and above, pressure ratings cover Class 150 to Class 600, and materials include WCC, CF8, CF8M, duplex steel and other materials, which can meet the use needs of different industries and different working conditions.
Integrated Drive Supporting Service
We can provide complete set supply of valves + actuators, complete assembly and debugging before delivery. Customers can install and use directly after delivery, reducing on-site debugging workload. We support customization of high-end configurations such as intelligent electric actuators and explosion-proof pneumatic actuators.
Raw Material Control
All valve body raw materials come from formal large factories with material certification documents. After entering the factory, spectral detection and component verification are carried out to prevent unqualified raw materials from entering the production link.
Precision Machining & Assembly
CNC lathes and machining centers are used to complete the processing of core components, and the eccentric dimensional tolerance is strictly controlled. The assembly link is completed by experienced technicians. Each valve is tested for opening and closing after assembly to ensure flexible operation without jamming.
Strict Factory Inspection
Each valve must pass hydrostatic strength test and air tightness test before leaving the factory. Valves for key working conditions are additionally subject to non-destructive testing to ensure that the valve body has no casting defects and the sealing performance meets the zero leakage standard.
Perfect After-Sales Support
We provide product installation guidance and operation and maintenance training services, free repair and replacement services during the product warranty period, and long-term supply of original accessories to ensure stable operation of the valve throughout its life cycle.
Choosing the right triple eccentric butterfly valve can not only improve pipeline operation safety, but also reduce operation and maintenance costs in the long term. With professional selection services, mature manufacturing technology and perfect quality control, J-VALVES provides customers with cost-effective and highly reliable triple eccentric butterfly valve products, and is a reliable partner in industrial fluid control scenarios.
