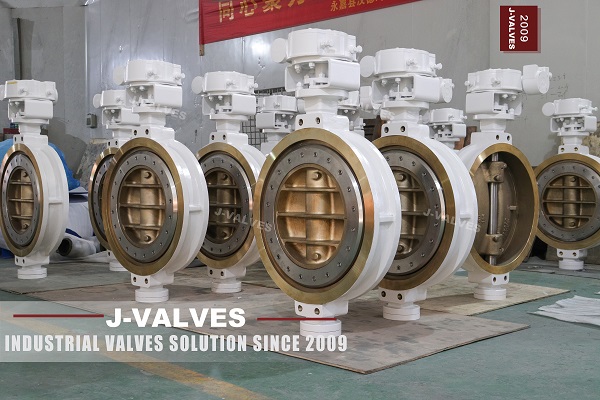

Triple Eccentric Butterfly Valve is a new type of high-performance valve widely used in fluid control systems requiring high tightness, high pressure resistance and high temperature resistance. Its unique design makes it particularly important in industrial processes, especially in industries such as petroleum, natural gas, chemical engineering, electric power and water treatment.
A triple eccentric butterfly valveis a regulating valve that uses a butterfly disc to control fluid flow, characterized by a triple eccentric structure.
While traditional butterfly valves control fluid flow by rotating the butterfly disc, the triple eccentric butterfly valve incorporates three eccentric points in its structure, enabling more precise and stable movement of the disc during opening and closing, thus delivering better sealing performance and longer service life.
The three eccentricities of a triple eccentric butterfly valve are as follows:
Shaft eccentricity: The valve shaft is offset relative to the center of the butterfly disc.
Disc eccentricity: The center of the butterfly disc is offset relative to the seat.
Seat eccentricity: The center of the seat is offset relative to the valve body.
This distinctive design delivers outstanding performance for the triple eccentric butterfly valve in high-temperature, high-pressure and corrosive media applications.
The most prominent feature of the triple eccentric butterfly valve is its triple eccentric structure, which effectively reduces contact pressure on the sealing surfaces and improves sealing performance.
This design eliminates wear issues common in traditional butterfly valves, extends service life, and ensures excellent sealing even under high-temperature, high-pressure and corrosive fluid conditions.
Triple eccentric butterfly valvesadopt metal-to-metal or flexible metal sealing, providing exceptional sealing performance under high-temperature, ultra-high-pressure and extreme environments.
This sealing method results in an extremely low leakage rate, maintaining reliable sealing even under extreme operating conditions.
Thanks to the triple eccentric structure of the disc, fluid flow can be controlled more accurately during opening and closing, reducing vibration and noise caused by uneven fluid flow.
This makes triple eccentric butterfly valves widely used in systems requiring high-precision flow control.
Triple eccentric butterfly valves use advanced materials such as high-temperature-resistant metal alloys and ceramic coatings, enabling them to withstand extreme temperature and high-pressure working environments.
They maintain stable performance whether installed in high-temperature steam pipelines or high-pressure oil and gas transmission pipelines.
The triple eccentric design significantly reduces the opening and closing torque, making operation much easier.
This characteristic makes the valve highly suitable for large-bore, high-pressure fluid control systems.
The working principle of a triple eccentric butterfly valve relies mainly on its unique triple eccentric design.
When the valve opens, the butterfly disc rotates to align with the fluid path, allowing fluid to pass through.
When the valve closes, the disc makes tight contact with the seat, blocking fluid passage and effectively shutting off flow.
Due to the triple eccentric structure, the sealing surface of the disc does not directly contact the seat immediately; instead, it gradually engages with the seat in an eccentric manner, achieving more uniform sealing pressure.
This progressive contact and sealing method prevents sealing failure caused by high pressure or high temperature in conventional butterfly valves, thereby enhancing sealing performance and reliability.
The triple eccentric design effectively reduces wear on sealing surfaces, greatly improving the valve’s tightness and avoiding leakage problems typical of traditional butterfly valves. Stable sealing is maintained even under severe high-pressure and high-temperature conditions.
With improved design and high wear-resistant materials, triple eccentric butterfly valves perform excellently during long-term service, extending service life and lowering maintenance costs and replacement frequency.
Featuring a precision structure and high-temperature-resistant materials, triple eccentric butterfly valves can adapt to extreme temperature and pressure conditions, and are widely used in steam systems, high-pressure oil and gas transmission, chemical reactions and other fields.
The design results in low maintenance requirements, reducing repair time and costs. Meanwhile, superior sealing minimizes leakage and energy loss, further improving overall system efficiency.
Triple eccentric butterfly valves have a large flow passage, allowing efficient handling of high-flow fluid control, especially for large-bore pipelines.
Thanks to their outstanding performance, triple eccentric butterfly valvesare widely used across many industries:
Oil and Gas: Used in the transportation, storage and processing of oil and gas, especially under high-pressure and high-temperature conditions.
Chemical and Pharmaceutical Industries: Applied in the production and transportation of chemicals and pharmaceuticals, where high tightness and corrosion resistance are required.
Water Treatment and Environmental Protection: Used in sewage treatment and water resource management to control flow and prevent leakage.
Power Industry: Provides stable fluid control, especially in high-temperature steam pipelines and cooling systems.
Food and Beverage Industry: Delivers fluid control under high hygiene standards to ensure product quality and safety.
When selecting a triple eccentric butterfly valve, the following factors should be considered:
Working Pressure and Temperature: Ensure the valve operates stably under the required service conditions.
Flow Requirements: Select an appropriately sized valve based on pipeline flow demands.
Medium Type: Choose suitable materials and sealing methods according to the corrosiveness and abrasiveness of the medium.
Installation Location: Select the appropriate valve model based on system installation space and pipeline layout.
Operation Mode: Choose manual, electric or pneumatic actuation to meet operational needs.
With superior sealing performance, high temperature and pressure resistance, and low maintenance costs, triple eccentric butterfly valves have become indispensable and important equipment in various industrial fields.
Whether in petroleum, natural gas, chemical engineering, food processing, electric power, water treatment or other industries, triple eccentric butterfly valves provide efficient and stable fluid control solutions.
Selecting the appropriate triple eccentric butterfly valve ensures the safety, reliability and long-term stable operation of the system.
