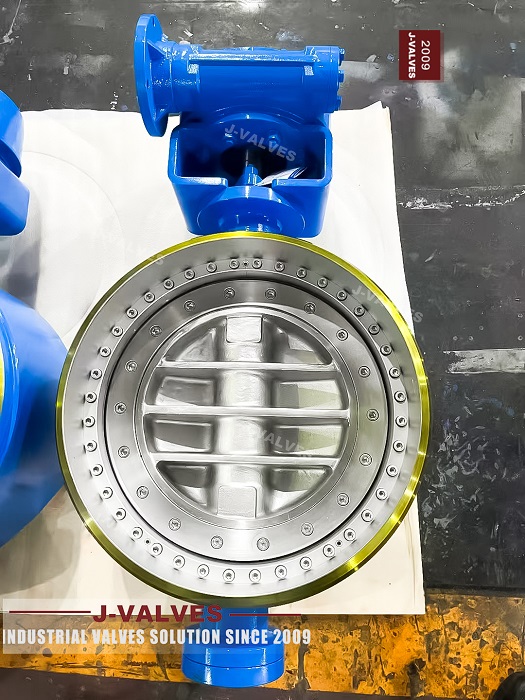

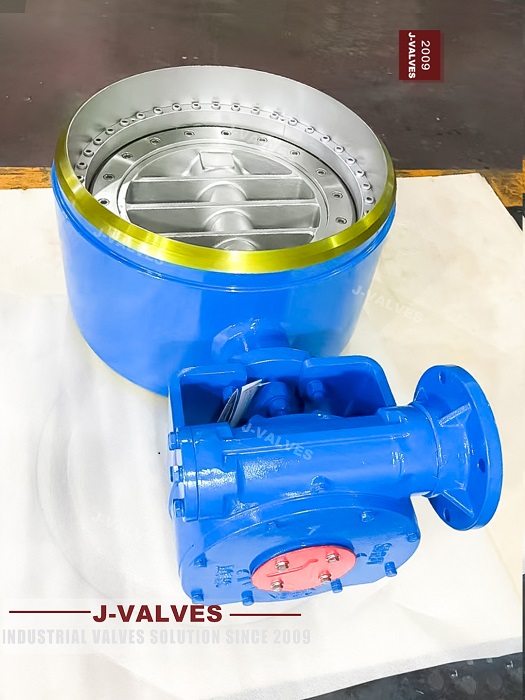

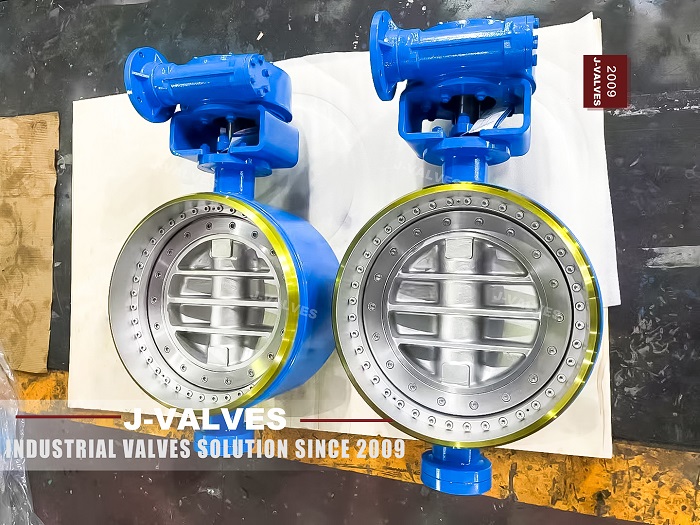

J-VALVES Triple Eccentric Butt-Weld Metal-Seated Butterfly Valve: The Key Solution To "Pain Points in High-Risk Industrial Operating Conditions"

What is the most troublesome issue for engineers in applications such as oil refining, natural gas transportation, steam systems, metallurgy, and power plants?

——It lies in high temperature, high pressure, frequent opening and closing, strict sealing requirements, and the risk of system shutdown or safety hazards once leakage occurs.

Traditional soft-seated or double-eccentric butterfly valves generally have the following pain points in such operating conditions:

• Insufficient temperature resistance of soft sealing materials, leading to rapid aging of the seal?

• Increased wear caused by long-term friction of the sealing pair?

• Excessive torque during high-frequency valve operation, resulting in higher driving costs?

• Failure to meet structural stability requirements in scenarios requiring welded connections?

In response to these common industry concerns, the Triple Eccentric Butt-Weld Metal-Seated Butterfly Valve launched by J-VALVES has become the preferred solution for many factories. This article will analyze why it can be a "reliable solution for harsh operating conditions" from the perspectives of structure, performance, and application trends.

I. Triple Eccentric Structure: Why Can It Achieve True Zero Friction and Longer Service Life?

The core advantage of the triple eccentric butterfly valve is that its special geometric structure enables the complete separation of the sealing pair from friction during the opening and closing process.

Have you ever encountered the following problems?

• Frequent equipment start-stop leading to rapid wear of the traditional butterfly valve seal?

• Excessive valve torque causing frequent failures of the actuator?

The triple eccentric design skillfully solves these engineering difficulties:

• The valve disc only contacts the sealing surface just before closing, realizing "friction-free valve closing".

• The metal sealing structure can withstand high temperature, high pressure, and corrosive media.

• Lower torque ensures longer actuator service life and reduced system energy consumption.

This means that in practical operation, J-VALVES triple eccentric butterfly valves can significantly reduce maintenance frequency and downtime costs.

II. Butt-Weld End Structure: Why Is This Connection Method More Suitable for Long-Cycle, High-Safety-Level Systems?

Many users often ask:

"Why are butt-weld end butterfly valves recommended for key equipment instead of flange or wafer-type ones?"

The reason is simple:

The butt-weld structure offers higher structural integrity and sealing capability in high-temperature and high-pressure pipeline systems. The advantages of J-VALVES' butt-weld end design include:

• Eliminating the risk of flange leakage and achieving higher overall sealing performance.

• Greater reliability under pipeline vibration conditions, with no easy loosening.

• Compact structure and unobstructed flow channel, resulting in lower pressure drop.

• Suitable for non-interruptible systems, such as natural gas main lines, steam main lines, and furnace switching systems.

For factories pursuing "zero safety hazards", butt-welded triple eccentric butterfly valves often become the final choice.

III. Metal Sealing: Can It Truly Achieve Strict Zero Leakage Under API and EN Standards?

In operating conditions involving high temperature, high pressure, and granular media, soft-seated butterfly valves often fail to meet grade requirements. So, can metal-seated butterfly valves achieve true zero leakage?

J-VALVES achieves high sealing grades through the following technologies in seal design:

• Surfacing of hard alloy sealing surfaces (e.g., Stellite) to enhance wear resistance and corrosion resistance.

• Tapered sealing structure to realize the torque self-amplification effect.

• Compliance with strict leakage standards such as API 598 and EN 12266.

This also enables its wide application in steam, oil products, chemical media, and ultra-high-temperature systems.

IV. Typical Operating Conditions: Why Are More and More Factories Treating It as an "Upgraded Replacement Valve"?

Engineers generally report:

"In the past, when using conventional butterfly valves, we had to replace the seals several times a year; after switching to triple eccentric ones, they work normally for years without any issues."

This trend is accelerating in the following industries:

• High-temperature transportation systems in petrochemical industry.

• Natural gas transmission and distribution systems and station equipment.

• Boiler and power plant steam systems.

• Granular or high-temperature flue gas conditions in the metallurgical industry.

• Regulation or shut-off systems with high pressure difference and frequent start-stop.

As global requirements for system reliability, continuous production, and safety standards increase, triple eccentric metal-seated butterfly valves are evolving from a "high-end option" to a "standard configuration".

V. Industry Trend: Why Are Triple Eccentric Butterfly Valves Becoming a Strong Alternative to Traditional Gate Valves and Ball Valves?

More and more engineering projects are starting to replace gate valves/ball valves with triple eccentric butterfly valves, for the following reasons:

• Lighter weight, lower cost, and more compact structure.

• Faster opening and closing speed and better responsiveness.

• Metal sealing performance meeting or even exceeding the standards of some gate valves/ball valves.

With the increasing demand for energy conservation, lightweight design, and automation in equipment, triple eccentric butterfly valves will continue to be a trending product.

Conclusion: Why Is This J-VALVES Triple Eccentric Butt-Weld Metal-Seated Butterfly Valve Worth Being Adopted for Key Operating Conditions?

If you are looking for a valve that can operate stably for a long time, adapt to high temperature and high pressure, have a high sealing grade, and at the same time reduce maintenance costs, then this J-VALVES Triple Eccentric Butt-Weld Metal-Seated Butterfly Valve is very likely to be your answer.

Because it not only solves the long-standing pain points in the industry but also brings users comprehensive value of longer service life, fewer failures, higher safety, and lower total cost through its reliable structure and adaptability to operating conditions.
