In industrial fluid control systems, BALL VALVES, as an important control element, are widely used in various pipeline systems. THREE-PIECE BALL VALVES and TWO-PIECE BALL VALVES are two common types of ball valves, each having its own characteristics in terms of structural strength and maintenance costs. This article will conduct an in-depth evaluation of these two types of ball valves to help users make reasonable choices according to actual needs.

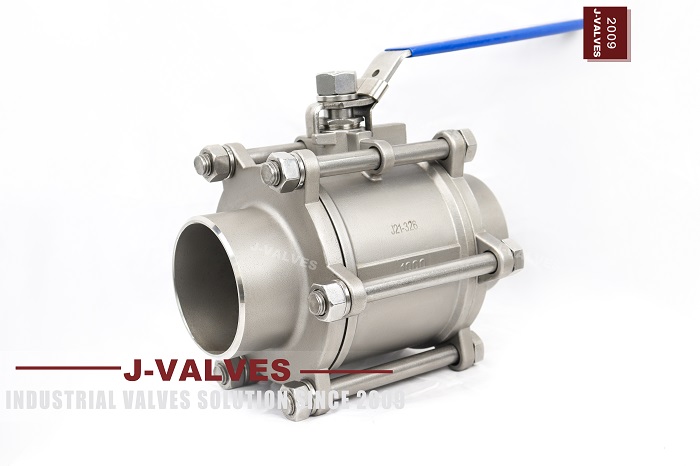

The THREE-PIECE BALL VALVE consists of three main components: the valve body, the valve core, and the valve cover. This structural design enables the ball valve to disassemble the valve core separately for inspection or replacement during maintenance without having to remove the entire valve body from the pipeline. This design not only improves the convenience of maintenance but also reduces the maintenance time. The valve body of the three-piece ball valve is usually connected by bolts and can withstand higher pressures, making it suitable for high-pressure working conditions.
The TWO-PIECE BALL VALVE is composed of two main components: the valve body and the valve cover. Its structure is relatively simple, and the installation and maintenance costs are relatively low. The two-piece ball valve has good sealing performance. However, due to its relatively strong integrity, the entire valve needs to be removed from the pipeline during maintenance. This design may be rather inconvenient in some working conditions with limited space or complex pipelines.
| Items | Three-piece Ball Valves | Two-piece Ball Valves |
Structural Complexity | High, composed of three parts | Low, composed of two parts |
Pressure Resistance Capacity | High, can withstand higher pressures | Lower, not suitable for high-pressure working conditions |
Sealing Performance | Excellent, with a wide sealing surface | Good, but with fewer connecting parts |
Applicable Working Conditions | High pressure, high temperature, and requiring frequent maintenance | General working conditions, with requirements for simple structure and low cost |
Analysis:
Due to its multi-component structure, the THREE-PIECE BALL VALVE can provide higher strength and pressure resistance capacity through bolt connection. This design enables it to perform excellently under high-pressure working conditions and effectively prevent leakage. In contrast, although the TWO-PIECE BALL VALVE has a simple structure, its sealing performance and structural strength are slightly inferior in a high-pressure environment.
| Items | Three-piece Ball Valves | Two-piece Ball Valves |
Disassembly Difficulty | Low, the valve core can be disassembled separately | High, the entire valve body needs to be disassembled |
Maintenance Time | Short, convenient for quick maintenance | Long, more time is required for disassembly and assembly |
Maintenance Frequency | High, suitable for frequent maintenance | Low, suitable for general working conditions |
Component Replacement Cost | Low, components can be replaced separately | High, the entire valve body may need to be replaced |
Analysis:
The maintenance cost of the THREE-PIECE BALL VALVE has more advantages in long-term use. Its design allows for inspection and component replacement without disassembling the pipeline, which greatly reduces the maintenance time and labor intensity. In addition, the cost of replacing components separately is also relatively low. In contrast, although the two-piece ball valve has a lower initial installation cost, its maintenance cost may increase significantly in situations requiring frequent maintenance.
Applicable Scenarios: High-pressure and high-temperature working conditions, such as in the petroleum, natural gas, and chemical industries.
Selection Recommendations: If the system requires frequent maintenance or has extremely high requirements for sealing performance, it is recommended to choose three-piece ball valves.
Applicable Scenarios: General working conditions, occasions that are cost-sensitive and have a low maintenance frequency.
Selection Recommendations: When the budget is limited and the working conditions are relatively simple, the two-piece ball valve is a more economical choice.
THREE-PIECE BALL VALVES and TWO-PIECE BALL VALVES each have their own advantages and disadvantages. Three-piece ball valves perform excellently in terms of structural strength and maintenance convenience and are suitable for high-pressure, high-temperature, and working conditions requiring frequent maintenance. While two-piece ball valves, with the advantages of simple structure and low cost, are suitable for general working conditions. Users should conduct a comprehensive evaluation according to the actual working conditions, budget, and maintenance needs when making a choice to ensure that the most suitable type of ball valve is selected.
