Swing check valves are essential components in fluid piping systems, providing unidirectional flow control while preventing backflow. Their design ensures that the valve opens automatically when fluid flows forward and closes when flow reverses, protecting pumps, compressors, and pipelines. Understanding the structural components of a swing check valve is key to optimizing performance, reliability, and maintenance.

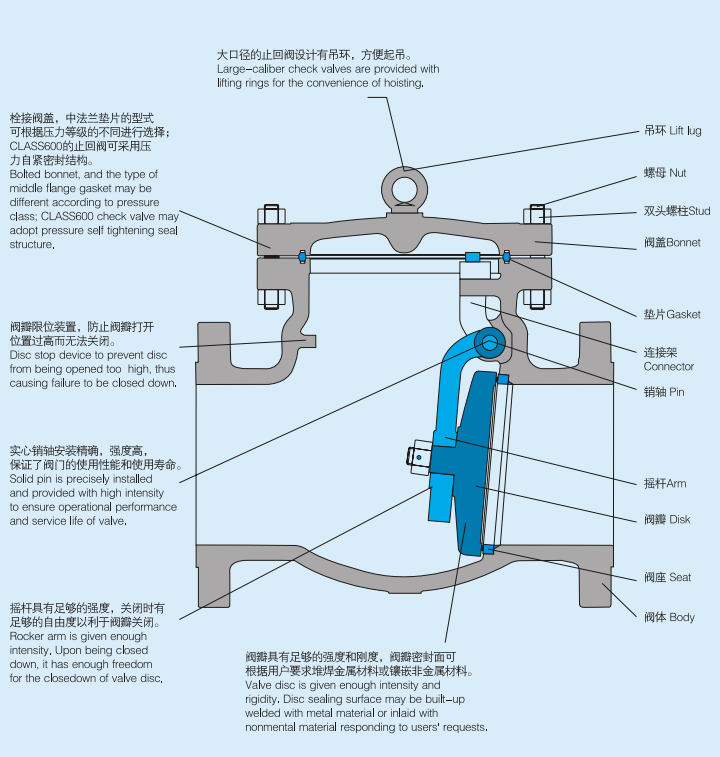

The valve body serves as the main pressure boundary, housing all internal components. It is designed for high structural strength to withstand pipeline pressures and thermal stresses. Materials may include carbon steel, stainless steel, or alloys depending on fluid type and operating conditions.
The seat provides a sealing surface for the disc to close against, preventing reverse flow. Seats may be integral or replaceable, and can incorporate metal or non-metal inlays for enhanced sealing under different operating conditions.
The disc (or clapper) swings on a hinge or pin to open with forward flow and close with reverse flow. The disc is engineered with sufficient rigidity and weight to ensure proper closure and minimize leakage. Its sealing surface may be welded with metal or inlaid with non-metallic material to meet user requirements.
The rocker arm connects the disc to the hinge pin and ensures smooth rotation. It is designed with enough strength and flexibility to allow the disc to fully close without excessive stress, extending the valve’s service life.
The hinge pin and connector provide precise alignment for the swinging disc, ensuring reliable operational performance. High-intensity pins are used to maintain stability and longevity under dynamic flow conditions.
A disc stop device prevents the disc from swinging too far open, avoiding damage and ensuring smooth closure. This safety mechanism is critical in high-pressure or turbulent pipelines.
The bonnet covers the internal mechanism and is secured with studs and nuts. The gasket ensures a leak-proof connection between the body and bonnet. In high-pressure designs, self-tightening seal structures may be employed to enhance reliability.
Large-caliber swing check valves may include a lifting ring (lift lug) for convenient hoisting and installation in industrial piping systems.
Automatic Operation: The valve disc swings freely with forward flow and closes promptly upon flow reversal, providing reliable backflow prevention.
Robust Sealing: Sealing surfaces can be built-up with metal or non-metallic inlays to suit fluid types and operating conditions.
Durability: Solid pins and reinforced rocker arms ensure long service life and minimize maintenance.
Maintenance Access: Bolted bonnets and flanged connections allow inspection and replacement without extensive pipeline disassembly.
Safety: Disc stop devices protect against over-travel and potential damage, especially in large-diameter pipelines.
Swing check valves are widely used in industries that demand backflow prevention and reliable flow control:
Water Supply and Treatment Systems: Prevent reverse flow and protect pumps.
Oil and Gas Pipelines: Safeguard compressors and maintain unidirectional flow.
Chemical and Petrochemical Plants: Handle aggressive fluids with high-pressure designs.
Steam and Condensate Systems: Ensure proper flow direction and prevent water hammer.
The swing check valve combines simple mechanical operation with robust design, making it ideal for backflow prevention in diverse fluid systems. Key structural elements, including the disc, rocker arm, hinge pin, seat, bonnet, and gasket, are meticulously engineered to ensure reliable operation, long-term durability, and ease of maintenance. Selecting the appropriate materials and structural configuration enhances performance across high-pressure, high-temperature, and corrosive environments.
