Industrial strainers are essential components in process and utility piping systems, protecting pumps, valves, heat exchangers, and other critical equipment from debris and particulate contamination. While the screen or mesh often receives attention, the bonnet and body design is equally critical, directly influencing mechanical strength, maintenance efficiency, and overall performance.
An industrial strainer typically consists of:
Body: The main pressure-retaining vessel that houses the strainer element.
Bonnet (Cover): Provides access for cleaning, inspection, or replacement of the strainer element.
Screen/Filter Element: Removes debris from the fluid stream.
Drain or Blowdown Port: Facilitates sediment removal without disassembly.
The body and bonnet design determines:
Pressure rating and mechanical integrity.
Ease of maintenance and cleaning.
Flow characteristics and pressure drop.
Compatibility with process conditions, including temperature and chemical exposure.
Carbon Steel: Cost-effective, suitable for non-corrosive fluids and moderate temperatures.
Stainless Steel (304/316): Excellent corrosion resistance, ideal for chemical, offshore, or food-grade applications.
Bronze or C95800 Alloy: Excellent performance in seawater or brine applications.
The body must withstand maximum operating pressure and temperature fluctuations.
Wall thickness, flange design, and reinforcement are calculated according to ANSI/ASME B16.34 or equivalent standards.
Proper design ensures safety margins for pressure surges and thermal expansion.

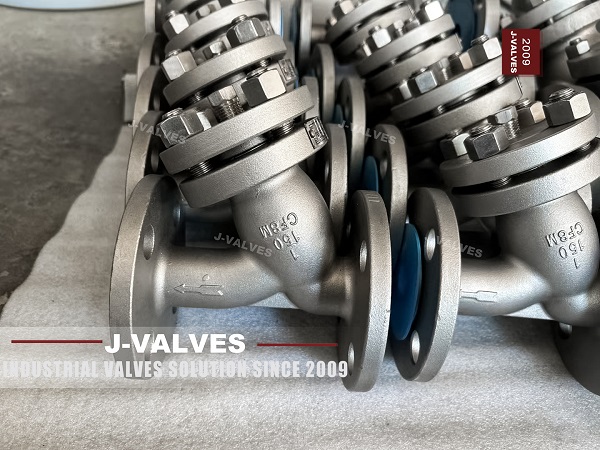

The body’s flow path is usually angled (Y-strainer) or straight (basket strainer) to optimize debris collection and reduce turbulence.
An angled Y-body allows debris to settle in the strainer leg while maintaining laminar flow in the main pipeline.
The bonnet provides removable access to the strainer element.
Bolted bonnets offer secure sealing and allow routine maintenance.
Swing or hinged covers can further reduce downtime in critical systems.
Bonnet seals prevent leakage and maintain pressure integrity.
Common materials:
PTFE: Excellent chemical resistance.
Graphite: High-temperature applications.
Rubber (EPDM, NBR): Cost-effective for moderate temperatures and pressures.
Proper gasket design ensures tight sealing under fluctuating pressure and temperature.
The bonnet design must match or exceed the body’s pressure rating to prevent leaks or structural failure.
Load distribution is optimized by bolting pattern and flange design.
Minimize Pressure Drop
Smooth internal surfaces and optimized flow paths reduce turbulence and energy loss.
Enhance Debris Retention
Angled or deep-body designs allow sediment to accumulate without interfering with flow.
Facilitate Easy Cleaning
Large bonnet openings and quick-release fasteners reduce maintenance time.
Material Compatibility
Select body and bonnet materials that withstand chemical, temperature, and corrosion demands.
Chemical and Petrochemical Plants: Stainless steel bodies with bolted bonnets for high-pressure and corrosive fluids.
Marine and Seawater Systems: Bronze or C95800 bodies with gasketed bonnets to prevent corrosion.
Steam and Utility Lines: Carbon steel bodies with reinforced bonnets capable of handling high pressure and temperature cycles.
Best Practices:
Always consider body thickness and bonnet reinforcement for high-pressure applications.
Match gasket and seal materials with process fluid to avoid premature leakage.
Ensure alignment of flow direction with the strainer leg for Y-type strainers.
The bonnet and body design in industrial strainers is critical to system efficiency, safety, and maintainability. A well-designed body ensures mechanical strength and proper flow distribution, while a robust bonnet allows easy maintenance and leak-free operation. By carefully selecting materials, pressure ratings, and sealing mechanisms, engineers can maximize strainer performance, reduce downtime, and extend equipment lifespan.
