Standardization of Strainer Sizes And Connections

Industrial strainers are essential components in pipelines, protecting pumps, valves, meters, and other equipment from debris and particulate contamination. Proper sizing and connection standardization are critical to ensure reliable operation, compatibility with existing piping systems, and simplified maintenance. Standardization helps engineers design efficient systems and reduces complexity during installation and operation.

Importance of Standardization in Industrial Strainers

Standardization ensures that strainers are compatible with commonly used piping dimensions and connection types. It allows for:

• Interchangeability: Easier replacement of strainers without modifying the pipeline.

• Reduced Inventory Costs: Fewer unique sizes and connections need to be stocked.

• Simplified Design: Engineers can select standard components, improving project efficiency.

• Reliable Performance: Standardized designs adhere to pressure ratings and industry codes, ensuring safe operation.

Standard Strainer Sizes

Industrial strainers are typically sized according to the nominal diameter (DN) of the pipeline. Standard sizes commonly follow international norms such as ANSI/ASME, DIN, or JIS. Common nominal diameters include:

• Small Pipelines: DN15 to DN50 (½” to 2”)

• Medium Pipelines: DN65 to DN150 (2½” to 6”)

• Large Pipelines: DN200 to DN600 (8” to 24”)

Selecting the appropriate strainer size ensures minimal pressure drop, optimal filtration, and protection for downstream equipment.

Standard Connection Types

Standard connections for industrial strainers facilitate installation and maintenance. Common connection types include:

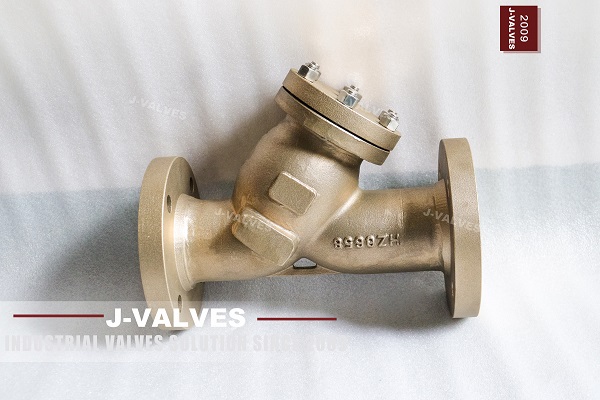

1. Flanged Connections

• Description: Bolted flanges allow secure attachment to pipelines.

• Advantages: Suitable for large sizes and high-pressure applications; easy removal for maintenance.

• Standards: ANSI/ASME B16.5, DIN EN 1092-1

2. Threaded Connections

• Description: Screwed connections, either NPT (National Pipe Thread) or BSP (British Standard Pipe).

• Advantages: Compact, economical, and ideal for small pipelines; easy installation without flanges.

• Standards: ASME B1.20.1, ISO 7-1

3. Welded Connections

• Description: Bonnet or end welded directly to the pipeline.

• Advantages: Permanent and leak-proof; ideal for high-pressure or high-temperature services.

• Standards: ASME B31.1, ASME B31.3

4. Socket Weld Connections

• Description: Pipe inserted into the socket of the strainer end and fillet welded.

• Advantages: Strong and reliable for small to medium pipelines; minimizes leakage risk.

• Standards: ASME B16.11

Benefits of Standardization

• Simplified Maintenance: Standard sizes and connections allow for easy replacement and retrofitting.

• Reduced Downtime: Standardized strainers can be quickly sourced and installed.

• Cost Efficiency: Minimizes the need for custom-fabricated components.

• Compliance: Aligns with industry codes and safety regulations.

Considerations for Selecting Standard Strainers

When selecting a standardized strainer, consider:

1. Pipeline Size: Match the nominal diameter to ensure proper flow and minimal pressure drop.

2. Pressure Rating: Ensure the strainer can handle the system’s operating pressure.

3. Connection Type: Choose flanged, threaded, or welded based on system layout and maintenance requirements.

4. Material Compatibility: Ensure strainer body and screen materials are compatible with the process media.

5. Filtration Requirements: Select mesh or perforation size based on debris type and downstream equipment protection.

Conclusion

Standardization of strainer sizes and connections is essential for industrial pipeline systems. By adhering to internationally recognized standards, engineers can ensure reliable performance, easy maintenance, and cost-effective operation. Flanged, threaded, welded, and socket weld connections, combined with properly sized strainers, provide versatility and compatibility across diverse industrial applications. Standardization simplifies design, enhances system efficiency, and supports long-term operational reliability.
