Choosing The Right Strainer Type for High-Pressure Industrial Applications

Strainers are critical components in industrial piping systems, designed to remove debris, protect downstream equipment, and ensure uninterrupted process operation. In high-pressure applications—common in oil and gas, petrochemical, power generation, and offshore systems—selecting the appropriate strainer type is essential to maintain system integrity, reduce maintenance costs, and enhance safety.

Why Strainer Selection Matters

High-pressure systems present unique challenges, including:

• Intense fluid velocity and turbulence

• High differential pressure across filtration devices

• Abrasive and corrosive media

• Risk of equipment damage if debris is not filtered

Selecting the wrong strainer type can lead to:

• Excessive pressure drop

• Frequent maintenance and downtime

• Premature failure of pumps, valves, and other equipment

Common Strainer Types for High-Pressure Applications

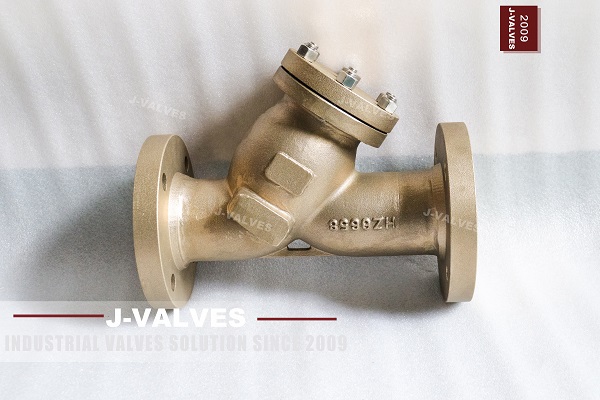

1. Y-Strainers

Y-strainers are named for their Y-shaped design, which diverts flow through a mesh or perforated screen.

Advantages for High-Pressure Systems:

• Compact design suitable for inline installation

• Handles high-pressure and high-temperature media

• Easy to clean or replace screens

• Provides reliable protection for valves, pumps, and meters

Considerations:

• Not ideal for extremely large pipelines due to pressure drop concerns.

• Screen mesh selection must match debris size and flow rate.

2. Basket Strainers

Basket strainers feature a cylindrical or rectangular basket that collects debris as fluid passes through.

Advantages for High-Pressure Systems:

• Large debris-holding capacity, reducing maintenance frequency

• Suitable for high-flow and high-pressure pipelines

• Can be installed in both horizontal and vertical configurations

Considerations:

• Larger footprint compared to Y-strainers

• Periodic basket cleaning required to prevent pressure build-up

3. Duplex Strainers

Duplex strainers contain two parallel chambers, allowing flow through one chamber while the other is being cleaned.

Advantages for High-Pressure Systems:

• Continuous operation without system shutdown

• High-pressure handling capability

• Reduces operational downtime and maintenance risk

Considerations:

• More complex and higher initial cost

• Requires space for installation and switching mechanism

4. T-Strainers and Other Specialized Designs

In specific high-pressure or high-temperature systems, custom-designed T-strainers, wedge wire strainers, or wedge basket strainers may be used for optimized flow and debris handling.

Material Selection for High-Pressure Strainers

Material choice is critical to withstand high pressure, temperature, and corrosive environments.

Common Materials:

• Carbon steel (moderate pressure, general service)

• Stainless steel (corrosion resistance, moderate to high pressure)

• Duplex stainless steel (high pressure, corrosive media)

• Nickel aluminum bronze (marine or seawater service)

Pressure Drop and Flow Considerations

High-pressure systems are sensitive to flow resistance. To minimize pressure drop:

• Select appropriate strainer mesh or perforation size

• Use basket strainers for higher debris volume

• Consider flow path optimization in Y-strainers or T-strainers

Installation Best Practices

• Install strainers upstream of critical equipment (pumps, valves, meters)

• Ensure correct flow direction

• Provide bypass or duplex configuration for continuous operation

• Include pressure gauges to monitor differential pressure across the strainer

Conclusion

Choosing the right strainer type is crucial for high-pressure industrial applications. Y-strainers, basket strainers, duplex strainers, and specialized designs each offer unique advantages depending on flow rate, debris load, and operational requirements. Proper material selection, mesh size, and installation practices further enhance system reliability, reduce downtime, and protect expensive downstream equipment.

By carefully evaluating system conditions and operational needs, engineers can select the most suitable strainer type, ensuring efficient filtration, long-term reliability, and optimal performance in demanding high-pressure industrial environments.
