Strainers are critical components in industrial piping systems, serving to remove debris and particles from fluids and protect pumps, valves, and downstream equipment. Among the different connection types, flanged connection strainers are widely used due to their ease of installation, maintenance, and robust sealing capability. Understanding their structural design is essential for engineers and system designers to optimize performance and reliability.

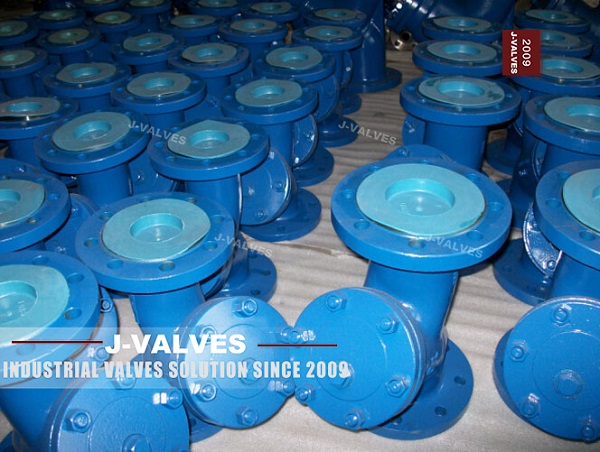

Flanged connection strainers feature bolt-mounted flanges on both ends of the valve body, allowing them to be connected directly to the pipeline. This design conforms to international standards such as ANSI/ASME B16.5, ensuring compatibility with a wide range of piping systems. The flanged configuration provides structural rigidity, tight sealing, and convenient maintenance access.
Valve Body: The main pressure boundary housing the strainer basket. Typically made of cast steel, stainless steel, or alloy steel to withstand industrial pressures and temperatures.
Flanges: Raised or flat face flanges allow bolted connections to pipeline ends, ensuring mechanical stability and leak-proof sealing.
Strainer Basket: The filtration element removes debris from the fluid flow. Can be removable for maintenance.
Bonnet: Covers the strainer basket and connects to the body via bolts. Provides easy access for cleaning or replacement.
Gasket: Ensures a tight seal between the body and bonnet, preventing fluid leakage under high pressure.
Flanged connection strainers are designed to handle moderate to high-pressure fluids. The flange and body thickness are calculated based on:
Operating pressure
Fluid density and viscosity
Thermal expansion and contraction
A well-engineered flange connection ensures uniform load distribution and reduces the risk of leakage or structural failure.
The internal design of the strainer body ensures smooth flow through the basket, minimizing turbulence and pressure drop. Structural analysis considers:
Flow velocity and pattern
Potential for erosion or cavitation
Alignment of the basket to maintain consistent filtration efficiency
Flanged strainers allow quick removal of the bonnet and strainer basket without pipeline disassembly. Structural elements are designed to withstand repeated maintenance cycles, with reinforced bolt holes, gasket seating surfaces, and body reinforcement to prevent deformation.
Ease of Installation and Removal: Bolted flange design simplifies connection and maintenance.
High Structural Integrity: Flanges provide rigidity to handle high-pressure applications.
Versatility: Can be used in horizontal or vertical piping layouts.
Leak Prevention: Proper gasket selection and flange alignment ensure tight sealing under varying pressures.
Durability: Suitable for long-term operation in industrial fluid systems including water treatment, chemical plants, and oil & gas pipelines.
Flanged connection strainers are widely used across industries:
Chemical Processing: Filtration of corrosive or particulate-laden fluids.
Oil and Gas Pipelines: Protection of pumps and compressors from debris.
Power Generation: Steam and water systems where frequent maintenance is necessary.
Water Treatment Plants: Efficient debris removal and easy maintenance access.
The structural design of flanged connection strainers balances robustness, ease of maintenance, and fluid flow efficiency. Key elements such as the valve body, flanges, strainer basket, bonnet, and gasket are engineered to withstand industrial pressures while providing reliable filtration. Proper structural analysis ensures long-term reliability, leak prevention, and operational efficiency, making flanged strainers a cornerstone of industrial fluid systems.
