Strainers are vital components in industrial fluid systems, protecting pumps, valves, and other equipment from debris and particulate matter. Selecting the correct connection type for strainers—whether flanged or welded—has a significant impact on long-term reliability, maintenance efficiency, and system performance. This article explores the structural differences, advantages, limitations, and long-term considerations of flanged and welded strainers to guide engineers and system designers in making informed decisions.

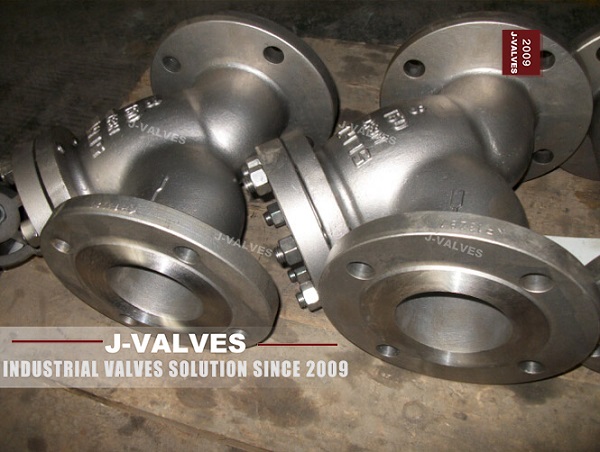

Flanged strainers feature a bolted flange at each end, allowing them to be attached directly to corresponding pipeline flanges. They are widely used for moderate to high-pressure systems, where ease of installation and maintenance is a priority. Flanged strainers typically conform to standards such as ANSI/ASME B16.5, ensuring compatibility across industrial pipelines.
Welded strainers, also known as butt-weld or socket-weld strainers, are permanently attached to the pipeline using welding. This type of connection is commonly applied in high-pressure, high-temperature, or hazardous fluid systems, where leak prevention and structural integrity are critical.
Feature | Flanged Strainer | Welded Strainer |
|---|---|---|
Connection Method | Bolted flange | Permanent weld |
Installation Flexibility | Easy to install and remove | Requires welding; less flexible |
Maintenance | Can be removed without pipeline modification | Difficult to remove; cutting and re-welding needed |
Pressure Handling | Moderate to high | Very high, suitable for extreme pressures |
Leak Potential | Higher if gasket degrades | Very low due to continuous weld |
Footprint | Requires space for bolts | Compact design, no bolting clearance |
Ease of Maintenance: Can be quickly removed for cleaning or inspection without disrupting the pipeline.
Flexibility: Ideal for systems where strainers need to be replaced or relocated.
Standardized: Compatible with common flange sizes and standards.
High Reliability: Permanent weld eliminates potential leak points.
Compact Installation: Minimal space required since no bolt clearance is needed.
High Pressure and Temperature: Ideal for harsh environments where flanged gaskets may fail.
Potential for Leakage: Gaskets can degrade over time, especially under high temperature or corrosive conditions.
Larger Footprint: Requires space for flange bolts and maintenance access.
Periodic Inspection Needed: To ensure bolts remain tight and gaskets intact.
Difficult Maintenance: Removal requires cutting and re-welding, increasing downtime.
Less Flexible: Once installed, relocation or replacement is challenging.
Higher Initial Installation Effort: Requires skilled welding and inspection.
When evaluating long-term reliability, consider these factors:
Operating Pressure and Temperature: Welded strainers excel in extreme conditions; flanged strainers are sufficient for moderate systems.
Maintenance Frequency: Flanged strainers are better for systems requiring regular cleaning.
Corrosive or Hazardous Fluids: Welded strainers minimize leakage risk and improve safety.
System Downtime: Flanged strainers reduce downtime due to ease of removal and replacement.
Installation Costs: Flanged strainers have lower initial installation complexity, while welded strainers may incur higher upfront labor costs but offer long-term structural integrity.
Water Treatment Plants: Regular cleaning is necessary to maintain flow efficiency.
HVAC Systems: Moderate pressure and accessibility are key.
Process Piping in Food & Beverage or Pharmaceuticals: Hygiene and maintenance access are essential.
Oil & Gas Pipelines: High pressure and harsh environmental conditions demand leak-proof connections.
Chemical Plants: Hazardous fluids require maximum sealing integrity.
Steam and High-Temperature Systems: Welded connections maintain integrity under thermal stress.
Both flanged and welded strainers offer unique advantages depending on the operational environment. Flanged strainers provide ease of maintenance and installation flexibility, making them ideal for moderate-pressure systems with frequent cleaning needs. Welded strainers, on the other hand, offer superior long-term reliability in high-pressure, high-temperature, or hazardous fluid applications, minimizing leakage risk and ensuring structural integrity. Proper selection of strainer connection type is crucial for system efficiency, safety, and lifecycle performance.
