A sleeve type plug valve has three parts in the sealing path: a metal plug with a through port, a moulded sleeve of PTFE or PFA that wraps the plug and carries its own matching port, and a metal body liner behind the sleeve. Nothing is injected and nothing is greased. The sleeve is compressed between plug and liner on assembly, and that stored compression is the seal: when the plug turns, the sleeve stays against the liner and the plug rotates inside it, so the polymer is the sealing surface on both faces.
A lubricated plug seals the same geometry with sealant that lifts the plug; here the polymer does the lifting and the sealing at once, and that explains the torque, the temperature ceiling and the failure modes.
The sleeve is clamped, so the plug turns against a preloaded polymer surface. Breakaway torque is set by that compression, the port area, and the pressure acting on the port, not by a film that may or may not be present. The torque is therefore predictable, but a sleeve that has taken a compression set turns more freely than a new one and seals less.
Every quarter turn sweeps the plug port past the sleeve window, and the sleeve has to recover each time. A sleeve that has lost its memory stays deformed at the port edge, and that crease is where the leak starts.
PTFE holds its shape to about 200 degrees C in continuous service, and the sleeve sets that limit, not the body. Above the range the polymer creeps under the very compression that seals it, the preload relaxes, and the valve weeps at temperature while still passing a cold test on the bench. That is the most common false pass in a plug valve: the test is cold, the service is hot.
Glass-filled PTFE resists creep better and is the usual choice for higher temperature or larger sizes, at the cost of a harder surface that is less forgiving of a scored liner.
Two media families attack the polymer rather than the metal. Aromatic solvents, ketones and amines swell PTFE and PFA, so the sleeve grows, the port edge closes and the torque climbs until the sleeve shears. Strong oxidisers and hot concentrated caustics attack the polymer itself.
The third is water. Steam and hot water permeate a sleeve, and on decompression the gas trapped inside it blisters the polymer. A blistered sleeve looks intact through the port and leaks across its face, which is why a sleeved plug is usually the wrong valve for steam duty whatever the rating says.
| Criterion | Sleeve type plug | Lubricated plug |
|---|---|---|
| Sealing element | PTFE or PFA sleeve under compression | Metal plug and seat with injected sealant |
| Body fittings | None | Injection fittings and checks |
| Torque | Low and stable until the sleeve takes a set | Rises sharply once the film is lost |
| Temperature | About 200 degrees C for PTFE | Set by the sealant grade, above the PTFE range |
| Fine grit | Trapped against the liner and scored | Flushed out at each injection |
| Product contact | No injected fluid | Sealant can enter the line |
| Routine work | None until the sleeve is renewed | Sealant by cycle count |
| Best fit | Clean liquids, high cycles, product purity | Hot oil, coarse slurry, high pressure gas |
Three failures cover most of it. Weld slag or mill scale left in a new line scores the sleeve on the first cycle, and a score is a permanent leak path. A valve turned dry against full differential, as happens when a line is drained before anyone checks, shears the sleeve at the port edge. And a body liner that corrodes under a permeable sleeve lifts the polymer off its seat from behind, so the valve leaks although the sleeve itself is sound.
A pressure balanced plug valve balances pressure across the plug, so the load on the sleeve and the operating torque stay manageable at high pressure; our 1500LB pressure balanced plug valve is built for that duty, and it is why a large high pressure plug can still be turned by hand. A PFA lined plug valve lines the body and covers the plug in fluoropolymer for hydrochloric and sulphuric acid duty, where a sleeve alone would leave a carbon steel body exposed.
One case belongs to the other family. Above the PTFE range, or in coarse slurry where solids must be flushed out of the sealing clearance every cycle, injected sealant does a job a sleeve cannot. A lubricated metal seated plug is the better answer there, and it is a different product from the sleeve type we build, so it is worth saying plainly.
Six lines settle it: the design standard (API 599 for steel plug valves, or API 6D in pipeline service), body and plug material, sleeve material with its temperature and media limits, port size, stem seal and emission class, and NACE MR0175 where the service is sour. Add the API 598 test basis, shell at 1.5 times rating and seat at 1.1 times.

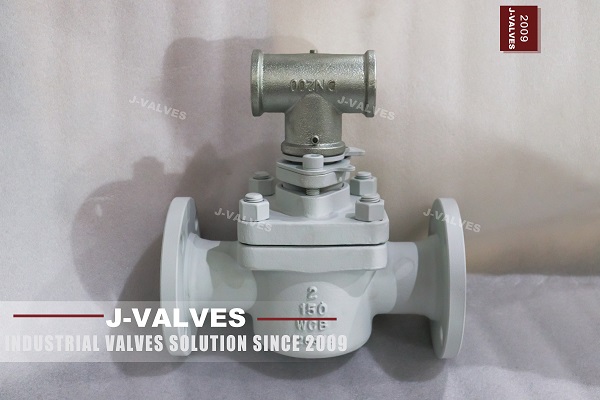

J-VALVES builds sleeve type plug valves in WCB, ASTM A351 CF8 and CN7M, with an 8 inch Class 150 WCB sleeve type plug valve among the standard patterns, plus pressure balanced plug valves up to 1500LB and PFA lined plug valves for acid service, tested to API 598 under the routine described in valve testing and quality control. Where the wetted path rather than the sealing element is the real problem, see our guide to seawater valve material selection.
How does a sleeve type plug valve seal without sealant? The moulded PTFE or PFA sleeve is compressed between the plug and the body liner when the valve is assembled, and that stored compression is the seal. The sleeve is held against the liner while the plug rotates inside it, so the polymer seals on both faces and the plug port lines up with the sleeve port in the open position.
What temperature can a PTFE sleeve plug valve take? About 200 degrees C in continuous service. Above that the sleeve creeps under its own sealing compression, the preload relaxes and the valve weeps hot even though it holds on a cold bench test. Glass-filled PTFE resists creep better for larger sizes or higher temperature, but the limit is set by the polymer, not the body rating, so check the sleeve grade against operating temperature.
When should I choose a lubricated plug valve instead? When the duty is above the PTFE range, or when coarse slurry must be flushed out of the sealing clearance every cycle. There, injected sealant does work a sleeve cannot, and a metal seated lubricated plug is the right choice. For clean liquids at moderate temperature and high cycles, the sleeve type needs no sealant schedule and keeps injected fluid out of the process.
