Bolted flange designs use bolts to compress a gasket between the valve cover and body. The gasket, typically made of graphite or PTFE, provides flexibility and sealing properties. Proper bolt tightening is essential for a reliable seal.

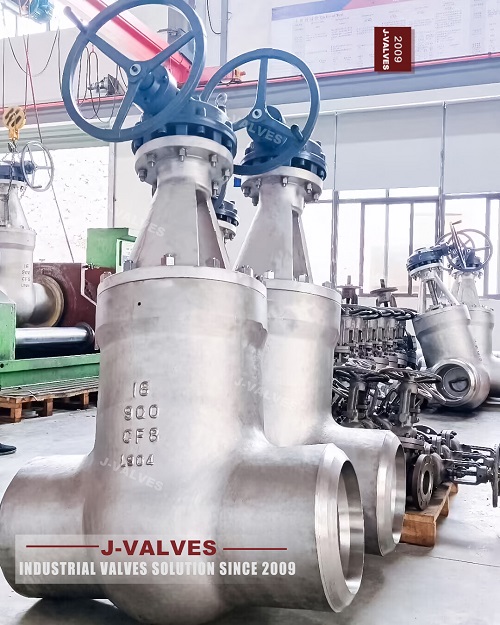

Pressure-Assisted Self-Sealing Design
Self-sealing designs use the system's operating pressure to enhance sealing. A pressure-responsive mechanism, such as a spring-loaded seal, expands to create a tighter seal as pressure increases, compensating for thermal expansion and maintaining seal integrity.
Comparative Analysis: Bolted Flange vs. Pressure-Assisted Self-Sealing Designs
| Parameter | Bolted Flange Design | Pressure-Assisted Self-Sealing Design |
| Initial Seal Quality | High, provided bolts are tightened correctly | High, with dynamic sealing action |
| Seal Under Temperature Variation | Prone to degradation due to thermal expansion and stress relaxation | Maintains seal due to pressure-responsive mechanism |
| Leakage Risk | Higher risk of leaks over time | Lower risk of leaks, especially in high-temperature environments |
| Parameter | Bolted Flange Design | Pressure-Assisted Self-Sealing Design |
| Frequency of Inspections | Regular inspections required | Less frequent inspections needed |
| Component Replacement | Gaskets and bolts may need periodic replacement | Sealing components may have longer service life |
| Labor Intensity | High, due to bolt tightening and gasket replacement | Lower, due to self-adjusting sealing mechanism |
| Parameter | Bolted Flange Design | Pressure-Assisted Self-Sealing Design |
| Initial Cost | Lower initial cost for components | Higher initial cost due to advanced sealing mechanism |
| Operational Costs | Higher maintenance and replacement costs | Lower maintenance and operational costs over time |
| Downtime | Increased downtime for maintenance | Reduced downtime due to fewer maintenance requirements |
| Parameter | Bolted Flange Design | Pressure-Assisted Self-Sealing Design |
| Risk of Catastrophic Failure | Higher risk if bolts loosen or gasket fails | Lower risk due to dynamic sealing compensation |
| System Integrity | Requires regular maintenance to ensure integrity | Maintains integrity with minimal maintenance |
