Views: 0 Author: J-VALVES Publish Time: 2025-06-06 Origin: Site
J-VALVES has established itself as a reliable manufacturer of industrial valves. With a focus on innovation and quality, the company has garnered a reputation for delivering products that meet the highest standards. Their commitment to excellence is evident in the meticulous design and production processes that go into creating each valve. The successful delivery of the pneumatic insulated jacket ball valves to Dubai is a testament to their ability to meet the specific needs of international clients.
Pneumatic insulated jacket Ball Valves: Technical Specifications
The pneumatic insulated jacket ball valves produced by J-VALVES are designed to meet the stringent requirements of various industrial applications. These valves are equipped with features that ensure optimal performance and durability. Here are some of the key technical specifications:Valve Design
• Type: Pneumatic insulated jacket Ball Valve
• Size Range: DN15 to DN200
• Pressure Range: PN10 to PN100
• Material: The valve body is constructed from high-quality materials such as carbon steel (WCB), stainless steel 304, and stainless steel 316. These materials are chosen for their strength, durability, and resistance to corrosion.
• Seal Material: The valves feature seals made from materials like polytetrafluoroethylene (PTFE) and hard metal seals. These materials provide excellent sealing properties and can withstand high pressures and temperatures.
• Jacket Material: The jacket is designed to provide effective insulation and is typically made from materials that can withstand high temperatures and pressures.
• Drive Mechanism: The valves are equipped with pneumatic actuators that provide precise control and reliable operation. The actuators are designed to operate efficiently and can be configured for single or double action.
• Temperature Range: The valves are designed to operate within a wide temperature range, from -29°C to 200°C, making them suitable for a variety of applications.
• Connection Type: The valves are available in flanged connections, which provide a secure and reliable connection to the piping system.
• Fire and Static Electricity Protection: The valves are designed with fire and static electricity protection features to ensure safety in hazardous environments.
• ISO 5211 Standard: The valves comply with the ISO 5211 standard, which ensures compatibility with a wide range of actuators and accessories.
• Long Lifespan: The valves are designed for long-term use, with features such as automatic compensation and self-cleaning functions that enhance their durability and reliability.
Applications of Pneumatic insulated jacket Ball Valves
The versatility of pneumatic insulated jacket ball valves makes them suitable for a wide range of industrial applications. Some of the key areas where these valves are used include:
In the oil and gas sector, the valves are used for controlling the flow of high-viscosity fluids, such as heavy oils and bitumen. The insulation provided by the jacket ensures that the fluid remains in a flowable state, even in cold environments. This is crucial for maintaining the efficiency of the production process and preventing blockages in the pipelines.
The chemical industry often deals with fluids that have specific temperature and pressure requirements. Pneumatic insulated jacket ball valves are ideal for controlling the flow of these fluids, ensuring that they remain at the desired temperature and pressure levels. The valves' resistance to corrosion and their ability to handle high-viscosity fluids make them a preferred choice in this industry.
In the food and beverage industry, the valves are used for controlling the flow of products such as syrups, oils, and other viscous fluids. The insulation provided by the jacket ensures that the products remain at the desired temperature, maintaining their quality and consistency. The valves' sanitary design and materials also make them suitable for use in this industry.
The pharmaceutical industry requires precise control and handling of fluids to ensure product quality and compliance with regulatory standards. Pneumatic insulated jacket ball valves are used for controlling the flow of fluids in processes such as mixing, reaction, and purification. The valves' ability to maintain precise temperature and pressure control makes them an essential component in these processes.

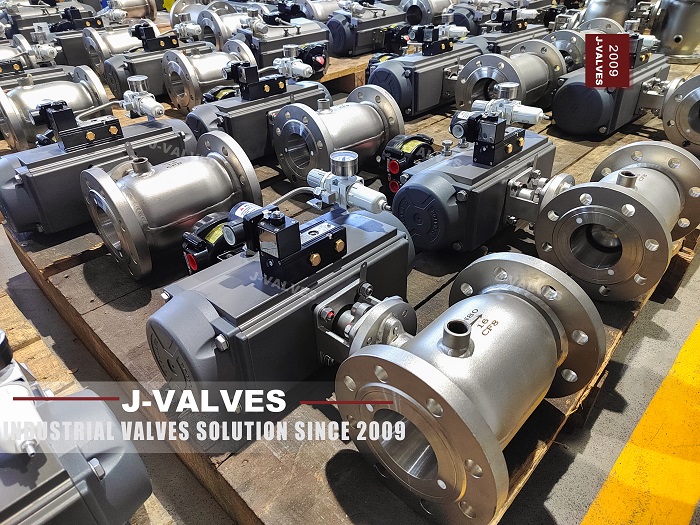

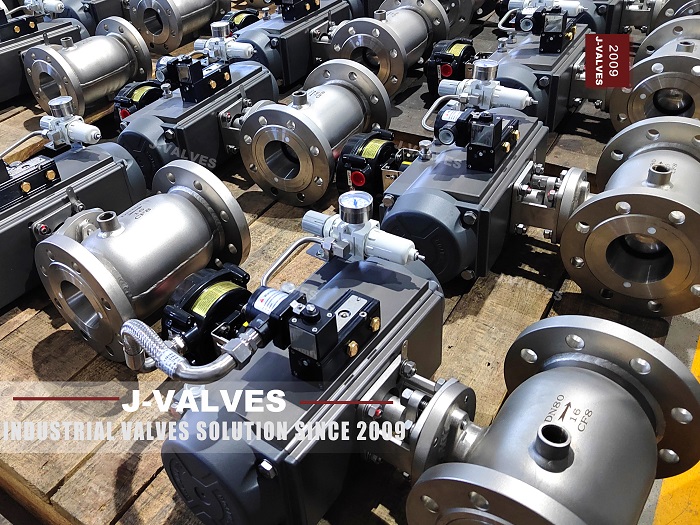

The successful delivery of the pneumatic insulated jacket ball valves to Dubai is a significant achievement for J-VALVES. This accomplishment highlights the company's ability to meet the specific needs of international clients and deliver high-quality products on time. The delivery process involved several key steps:
The order for the pneumatic insulated jacket ball valves was placed by a prominent industrial client in Dubai. The client specified the exact requirements for the valves, including size, pressure range, and material. J-VALVES worked closely with the client to ensure that all specifications were met.
Production and Quality Control
Once the order was confirmed, J-VALVES initiated the production process. The valves were manufactured in accordance with the highest quality standards. Each valve underwent rigorous quality control checks to ensure that it met the specified requirements. This included testing for pressure, temperature, and flow control capabilities.
After the quality control checks were completed, the valves were carefully packaged to ensure safe transportation. The packaging was designed to protect the valves from damage during transit. The valves were then shipped to Dubai using a reliable logistics partner.
