In the realm of industrial fluid control, selecting the right valve is essential to ensure optimal system performance, minimize downtime, and increase operational efficiency. Two commonly used valve types are ball valves and plug valves. Both types serve similar functions in regulating the flow of liquids and gases, but their designs and performance characteristics differ significantly, making them suitable for different applications.
A ball valve is a quarter-turn valve that uses a rotating ball with a hole through the center to control the flow of fluid. When the ball’s hole is aligned with the pipeline, fluid flows freely; when the hole is turned perpendicular to the pipeline, the flow is blocked. The simplicity of the ball valve design makes it an ideal choice for applications requiring quick shut-off and minimal flow resistance.
Quick Operation and Reliable Shutoff
Ball valves are known for their quick quarter-turn operation, which allows for fast opening and closing of the valve. This is particularly useful in applications where rapid flow control is needed.
Ball valves also provide excellent sealing, ensuring that the valve offers a reliable shutoff when fully closed, with minimal leakage.
Low Pressure Drop
The ball valve provides minimal flow resistance, making it ideal for systems where low pressure drop is essential. It is often used in high-flow systems, where maintaining pressure and flow stability is critical.
Versatile and Easy to Maintain
Ball valves are versatile and come in a variety of sizes and configurations, making them suitable for a wide range of applications, from water and chemical processing to gas pipelines.
Maintenance is typically straightforward, with few moving parts and easy access to internal components for inspection or repairs.

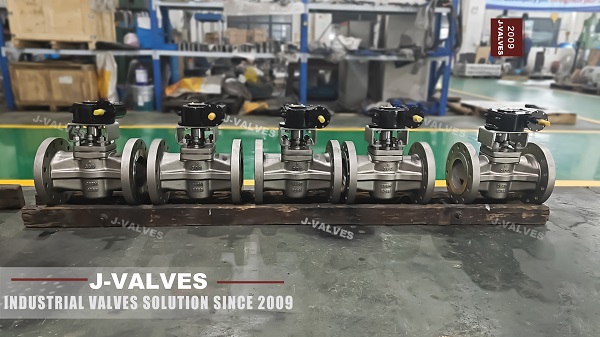

A plug valve operates using a cylindrical or tapered plug with a hole or slot through the center to control the flow. The plug rotates inside the valve body, and when aligned with the pipeline, it allows fluid to pass through. Plug valves are most commonly used in applications requiring tight shutoff or throttling capabilities.
Throttling Capabilities
Unlike ball valves, plug valves are often used in throttling applications where the flow needs to be adjusted precisely. The design of the plug valve makes it ideal for controlling the flow rate in both fully opened and partially closed positions.
Positive Shutoff
Like ball valves, plug valves provide a positive shutoff when fully closed. This makes them an ideal choice in situations where complete isolation of flow is required, such as in gas pipelines or chemical process systems.
Durability and Ability to Handle High Viscosity Fluids
Plug valves are especially durable and capable of handling high-viscosity fluids or slurries. Their ability to maintain performance under challenging conditions makes them suitable for systems where other valve types may fail due to wear or clogging.
Design and Operation
Ball valves use a spherical ball with a hole in the center, while plug valves use a cylindrical or tapered plug to regulate flow. Ball valves provide smooth and quick flow control, while plug valves are often used for throttling, offering more control over the flow rate.
Flow Characteristics
Ball valves provide a straight-through flow path, minimizing the pressure drop and ensuring smooth fluid passage, making them ideal for high-flow applications.
Plug valves, on the other hand, can sometimes cause higher resistance to flow due to the plug’s design, which can create more friction. They are better suited for applications requiring precise flow regulation and tight shutoff.
Maintenance and Durability
Ball valves are generally easier to maintain due to fewer moving parts and simpler design, whereas plug valves may require more maintenance, especially in applications involving abrasive or high-viscosity fluids that could cause the plug to wear over time.
Size and Cost
Ball valves are typically more compact and can handle a wide range of pressures and sizes, from small domestic plumbing systems to large industrial installations. However, they can be more expensive compared to plug valves, especially in larger sizes.
Plug valves tend to be more cost-effective for systems that require throttling capabilities or for larger sizes where ball valves may be too bulky or expensive.
Oil and Gas Industry
Ball valves are commonly used in oil and gas pipelines to regulate the flow of crude oil, natural gas, and other fluids. Their quick operation and reliability make them ideal for high-flow systems.
Water Treatment Plants
Ball valves are extensively used in water treatment systems to control the flow of water and chemicals during purification, filtration, and distribution processes.
Chemical Processing
Chemical plants rely on ball valves to manage the flow of chemicals in pipelines, ensuring precise flow control and minimizing the risk of leakage.
HVAC Systems
Ball valves are used in HVAC systems to regulate the flow of refrigerants and water, helping maintain consistent temperature and pressure throughout the building.
Slurry Handling in Mining
Plug valves are used in industries like mining to handle slurries or high-viscosity fluids, where ball valves may be less effective due to clogging or wear.
Fuel and Gas Control
In fuel and gas control systems, plug valves are often used because they offer tight shutoff and throttling capabilities, crucial for maintaining safe and regulated fluid flow.
Water Treatment and Irrigation Systems
Plug valves can be used in water distribution systems for throttling and flow control in irrigation or in industrial processes where precise flow adjustment is necessary.
Chemical and Pharmaceutical
Due to their ability to handle abrasive materials, plug valves are widely used in chemical and pharmaceutical applications for controlling the flow of viscous fluids and chemicals.
Choose a ball valve when you need quick on/off control, minimal pressure drop, and low maintenance. Ball valves are ideal for high-flow systems that require efficient and reliable operation.
Choose a plug valve when you need precise flow regulation or throttling capabilities, particularly for handling high-viscosity fluids, slurries, or when positive shutoff is required in more demanding environments.
Both ball valves and plug valves are essential for controlling fluid flow in industrial systems, but the choice between them depends on your specific application requirements. Ball valves excel in providing quick, reliable flow control with minimal resistance, making them ideal for high-flow applications. Plug valves, on the other hand, are suited for throttling, precise flow control, and handling challenging fluids such as slurries or high-viscosity liquids.
