Pneumatic Actuated Plug Valve for Industrial Flow Control Applications

Introduction

In modern industrial pipeline systems, reliable shutoff and fast actuation are critical for process safety and operational efficiency. The pneumatic actuated plug valve is widely used in oil & gas, petrochemical, water treatment, and chemical processing industries due to its excellent sealing performance, quick operation, and strong adaptability to harsh working conditions.

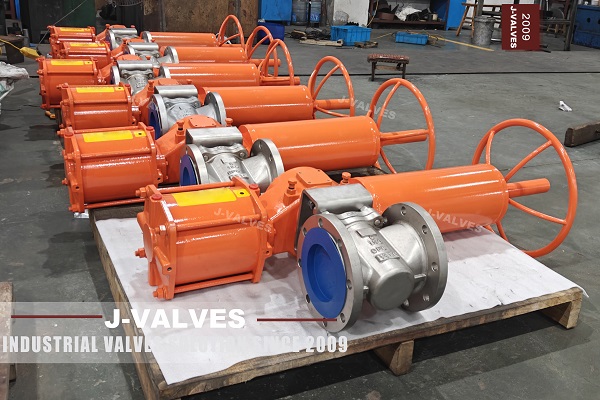

The featured configuration represents a 6-inch Class 150 CF8 stainless steel pneumatic actuated plug valve, engineered for stable performance in demanding process environments. J-VALVES, a professional industrial valve manufacturer since 2009, designs and supplies high-performance plug valve solutions in compliance with API 6D, API 599, API 598, and ASME B16.34 standards, ensuring global reliability and safety.

What Is a Pneumatic Actuated Plug Valve?

A plug valve is a quarter-turn rotary valve that uses a cylindrical or tapered plug to control flow through the pipeline. When combined with a pneumatic actuator, the valve can be operated automatically using compressed air, enabling fast and precise flow control.

Key structural features include:

• Rotating plug for on/off or throttling control

• Pneumatic actuator for automatic operation

• Flanged connection for pipeline integration

• Compact structure suitable for tight installation spaces

Working Principle of Pneumatic Plug Valve

The operation is based on a simple rotary mechanism:

• Air pressure activates the actuator

• The actuator rotates the stem and plug (typically 90°)

• Flow is either fully opened or completely blocked

• Spring return or double-acting configurations ensure fail-safe operation

This makes it ideal for automated pipeline systems requiring fast response and remote control.

Key Advantages of Pneumatic Actuated Plug Valves

1. Fast and Reliable Actuation

Pneumatic actuators provide:

• Quick opening and closing response

• Stable torque output

• Suitable for frequent cycling operations

This is essential for automated process control systems.

2. Excellent Sealing Performance

The plug-to-body sealing design ensures:

• Tight shutoff with minimal leakage

• Resistance to pressure fluctuations

• Reliable isolation in process pipelines

Soft-seated designs further enhance zero-leakage performance.

3. Compact and Robust Structure

Compared with gate or globe valves, plug valves offer:

• Smaller installation footprint

• Fewer external components

• High mechanical strength

This makes them suitable for space-limited industrial environments.

4. Corrosion Resistance with CF8 Stainless Steel

CF8 stainless steel provides:

• Excellent resistance to oxidation and corrosion

• Good mechanical strength under pressure

• Compatibility with chemical and water-based media

This extends valve service life in aggressive environments.

API and ASME Compliance

J-VALVES pneumatic plug valves are manufactured and tested according to international standards:

• API 6D – Pipeline valve specification

• API 599 – Plug valve design standard

• API 598 – Pressure testing and inspection

• ASME B16.34 – Pressure-temperature ratings

• ASME B16.5 – Flanged connection standards

These standards ensure consistent quality, safety, and global engineering acceptance.

J-VALVES Engineering Advantages

1. Advanced Actuation Integration

J-VALVES provides optimized pneumatic actuator mounting systems for:

• On/off control

• Emergency shutdown systems (ESD)

• Automated process control

2. Precision Machining Technology

All sealing components are manufactured using CNC machining to ensure:

• Tight sealing tolerance

• Smooth rotation torque

• Long-term operational stability

3. Flexible Material Options

Available configurations include:

• Carbon steel (WCB, WCC, A105)

• Stainless steel (CF8, CF8M, 316)

• Corrosion-resistant alloys for chemical service

4. Strict Quality Control

Each valve undergoes:

• Hydrostatic shell testing

• Seat leakage testing

• Pneumatic actuator performance testing

• Dimensional inspection

Industrial Applications

Pneumatic actuated plug valves are widely used in:

Oil & Gas Industry

• Pipeline isolation systems

• Gas distribution control

• Refinery process lines

Petrochemical Plants

• Chemical feed control

• Reactor isolation systems

Water Treatment Systems

• Flow regulation and shutoff

• Pump station control

General Industrial Automation

• Remote pipeline control

• Process automation systems

J-VALVES Project Experience

Petrochemical Automation System

Pneumatic plug valves were used for automated chemical flow control, improving response speed and process safety.

Industrial Water Treatment Plant

CF8 plug valves provided stable corrosion resistance and long-term reliable operation in continuous water flow systems.

Refinery Pipeline Upgrade

J-VALVES actuated plug valves replaced manual systems, significantly improving operational efficiency and control accuracy.

Conclusion

The pneumatic actuated plug valve is a highly efficient solution for automated pipeline control, combining fast actuation, strong sealing performance, and durable construction.

With full compliance to API and ASME standards, advanced manufacturing capability, and proven engineering experience, J-VALVES delivers reliable plug valve solutions for oil & gas, petrochemical, water treatment, and industrial automation systems.

These valves ensure improved operational efficiency, enhanced safety, and long-term stability in modern industrial pipeline applications.
